Neutrik SpeakON NL4MPR
Neutrik SpeakON NL4MPR
Neutrik SpeakON NL4MPR

Neutrik SpeakON NL4MPR

Product No.:
neu-nl4mpr
In stock for immediate delivery. Delivery time depends on the destination country* In stock for immediate delivery. Delivery time depends on the destination country*
RoHs:
conform
Weight:
0.018 kg per piece
3,90 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description

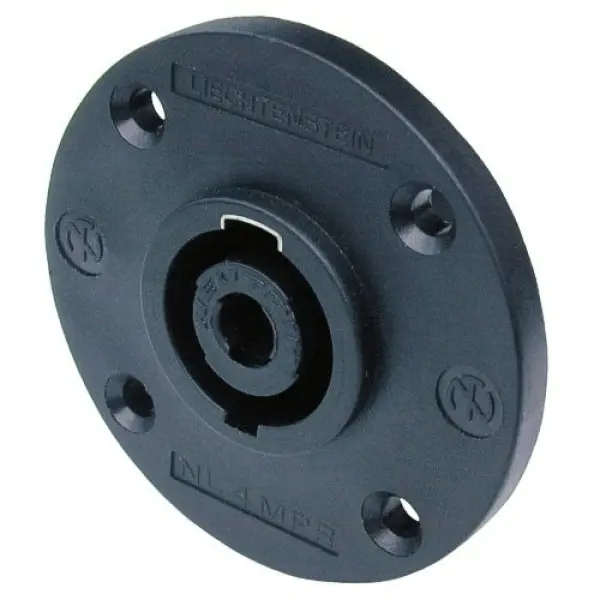

NL4MPR

4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16" flat tabsThe state-of-the-art chassis connector for loudspeaker / amplifier applications. They feature a unique locking system, robust plastic housing and high current silver plated contacts.

Features & Benefits

  • Standard current rating 30 Amp
  • High current version up to 50 Amp audio current
  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications

Files:

Manufacturer
Herstellerinformationen | Manufacturer Information
Neutrik EMEA GmbH
Marie-Curie-Strasse 2
85221 Dachau
Germany
eMail neutrik.emea.de@neutrikgroup.com
Customer reviews

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Unfortunately there are no reviews yet. Be the first who rates this product.
