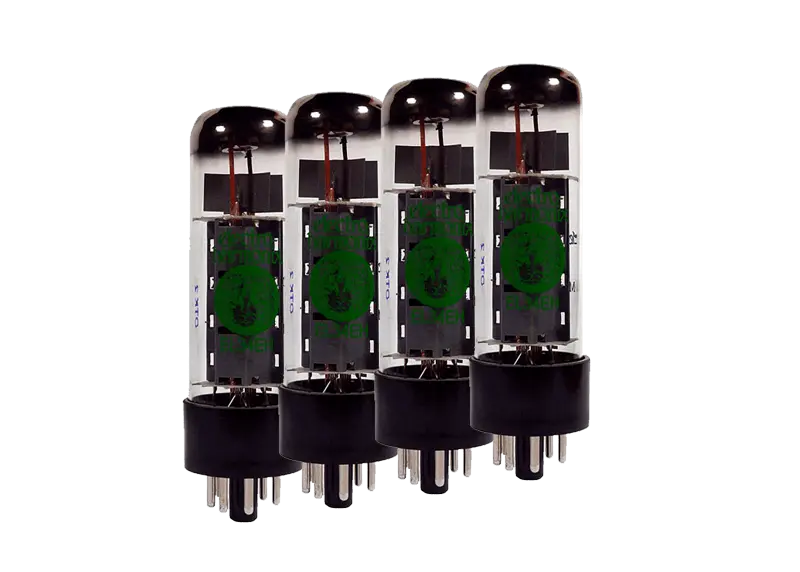

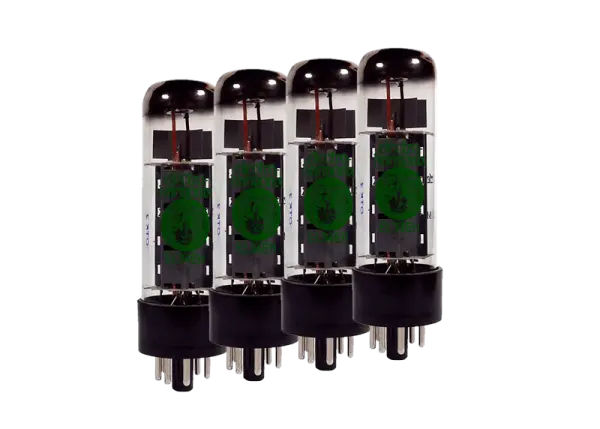

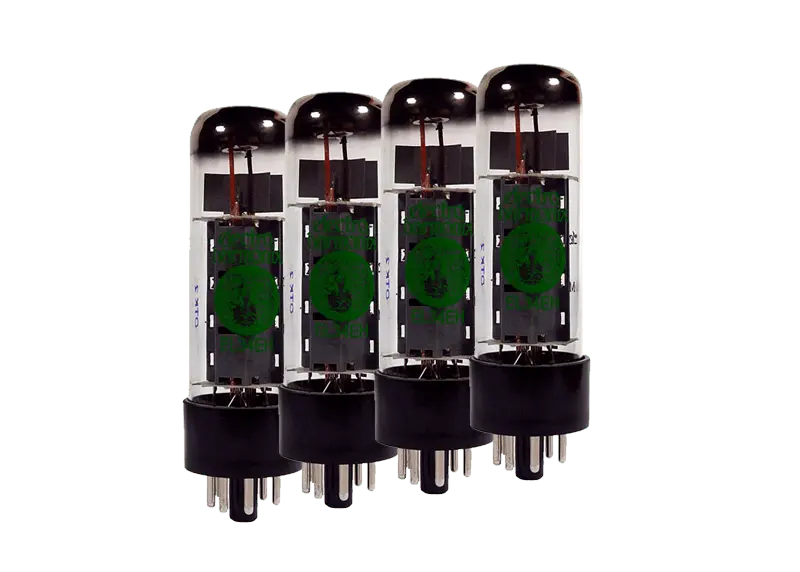

EH EL34 - QUAD

Product No.:: ehel34-quad
: In stock for immediate delivery. Delivery time depends on the destination country*
Stock:: Quad
RoHs:: conform
Weight:: 0.208 kg per Quad

109,00 €
27,25 € per Piece

incl. VAT excl. Shipping costs

Quad:

Quantity

Bookmark

Ask Question

Description

4 tubes, matched as quad

Mullard reincarnated. With the new EL34EH, Marshall amp owners can recreate the balanced tone, deep, tight bass, sweet mids, and well-defined highs of the original equipment Mullards. Innovative design and precision construction give the EL34EH exceptionally smooth and an ideal balance of pleasing even-order harmonics while virtually eliminating undesirable odd-order harmonics.

Files:

Datasheet

Manufacturer

Herstellerinformationen | Manufacturer Information

New Sensor Corporation, 32-33 47th Avenue, Long Island City, NY 11101, USA

EU-Wirtschaftsakteur | EU Economic Operator
Tube-Town GmbH, Rumbergring 37, 66969 Lemberg, Germany, info@tube-town.de
