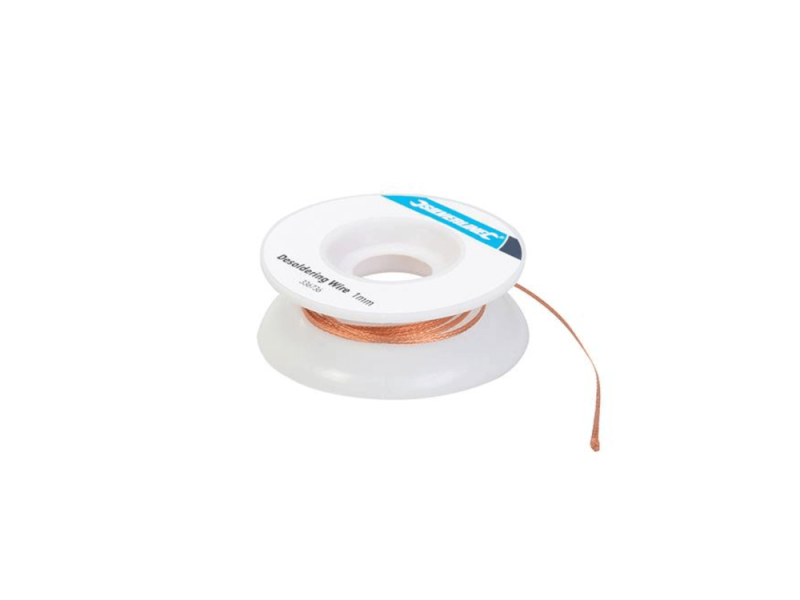

Desoldering wick 1 mm, length 1,5m

Copper Stranded Wire Insulated, 10m, yellow

The Hook up wire wire is a single-core multi-stranded copper cable with a conductor cross section of 0.14 mm² (AWG 26) and an outer diameter of 1.1 mm. The wire is insulated with PVC and is particularly suitable for wiring electrical devices or components. It is characterized by excellent heat and cold resistance and can be easily connected with wire end sleeves, spring or screw terminals.

• Cu switch wire LIYV 0.14 mm², flexible
• Cross-section: 0.14 mm²
• Construction: 18 x 0.1 mm
• Lead-free according to VDE 0812
• Temperature range: –15 / +70 °C
• Rated voltage: 500 V
• Length: 10 m reel

Copper Stranded Wire Insulated, 10m, gray

The Hook up wire wire is a single-core multi-stranded copper cable with a conductor cross section of 0.14 mm² (AWG 26) and an outer diameter of 1.1 mm. The wire is insulated with PVC and is particularly suitable for wiring electrical devices or components. It is characterized by excellent heat and cold resistance and can be easily connected with wire end sleeves, spring or screw terminals.

• Cu switch wire LIYV 0.14 mm², flexible
• Cross-section: 0.14 mm²
• Construction: 18 x 0.1 mm
• Lead-free according to VDE 0812
• Temperature range: –15 / +70 °C
• Rated voltage: 500 V
• Length: 10 m reel

• Tube-Town EZ-Board Twin Relais PCB for channel switching etc.
• Size: 50 x 44,5 mm
• Material: 1,6 mm FR4
• Solder mask: schwarz

For the use with Finder Relais type 30.22.9xx  (or relais with similar pin layout).

Relays, type Finder Dual-In-Line-Relais 2,0 A
for low breaking capacity

• Compact dimensions: 20.3 x 10.1 x 11.4 mm, grid according to wiring diagram
• Function: 2 x changeover contacts
• Constant/inrush current: 3.0 A/2.0 A
• Rated/switching voltage: 125 VAC/250 VAC
• Breaking capacity AC 1/AC 15 (230 V): 125 VA/25 VA
• Switching current DC 1:    2.0 A/30 V, 0.3 A/110 V
• Minimum switching load: 10 mW (0.1 V/1.0 mA)
• Contact material: AgNi+Au (5.0 µm)
• Useful mechanical life DC: 10 x 10 exp6 switching cycles
• Electrical life AC 1: 100 x 10 exp3 switching cycles
• Insulation coordination EN 61810-5: 1.2 kV/2
• Electric strength coil/contact (1.2/50 µs): 1.5 kV
• Response/release time: 6.0 ms/2.0 ms
• Ambient temperature: –40 to +85 °C
• Relay protection class: RT III
• Certifications: CSA, UL, GOST

• Datasheet
