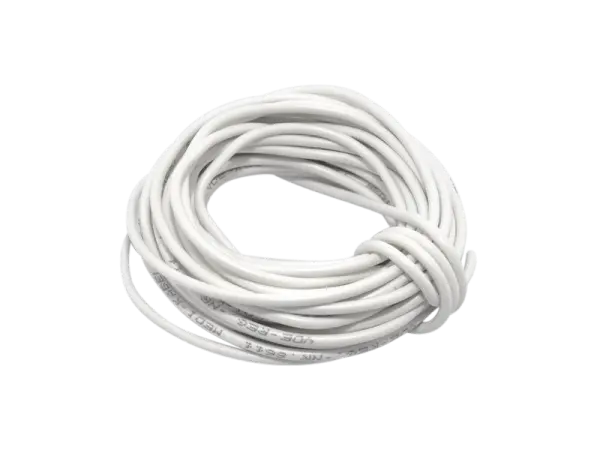

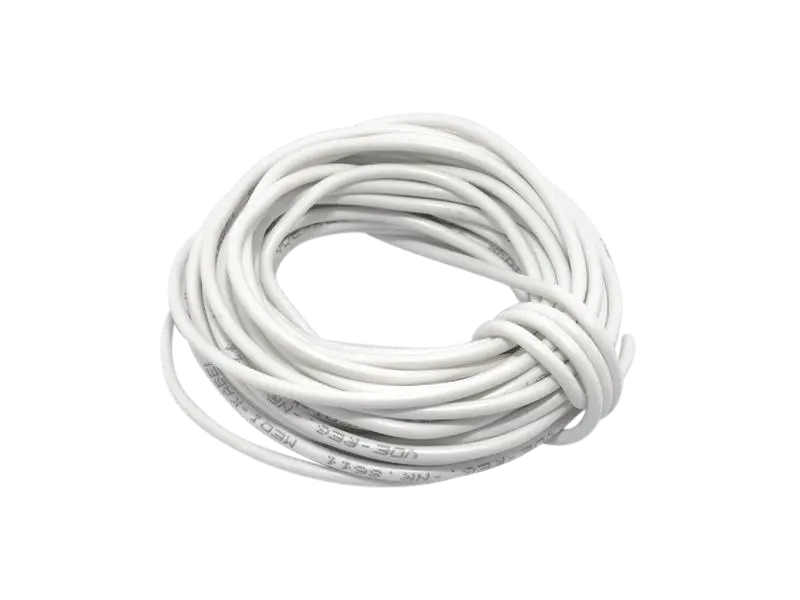

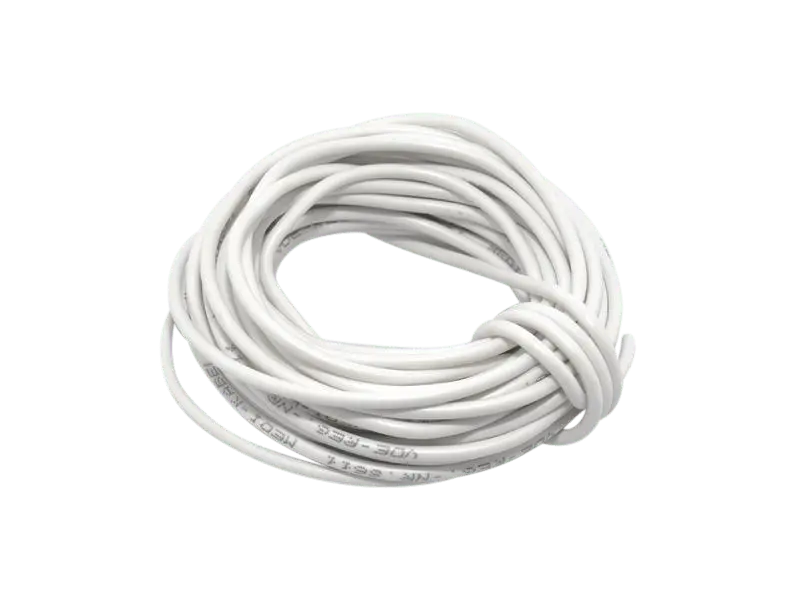

Wire Silicon 0,25 mm² - white, 5 m

• Pri: 0-220-230-240 (yellow-blue-brown-black)
• Sec 1: 360 V @ 0,3 A (red)
• Sec 2: 100 V @ 0,05 A (orange)
• Sec 3: 6,3 V @ 7 A (black)
• Sec 4: 15 V @ 1 A (green)
• long leads
• Size: 115 x 55 mm
• ta 40  50/60Hz
• EN 61558

• Insulation: Silicon
• Operation Voltage: 300 V AC / 500 V DC
• Test Voltage: 2000 V
• Operating temperatures:    –40 bis +180 °C
• Packing: 5 m
• Cross-Section: 0,25 mm²
• Outer Diameter: 1.6 mm
• Stranded wire structure: tinned copper

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

2 Tubes matched as pair
The JJ 6L6 is very popular because of its warm sound.

Files:

• Datasheet

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 47 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 21 mm x 37 mm
• Termination Style: axial

• Type: Electrolytic capacitor
• Capacitance: 22 µF
• Voltage Rating: 35 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 5 mm x 11 mm
• Termination Style: axial
• Color and manufacturer may differ from the picture shown

Images are for reference only. See Product Specifications

• Type: Electrolytic capacitor
• Capacitance: 1 µF
• Voltage Rating: 100 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 4,5 mm x 11 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Output transformer push-pull for 18 Watt amps
• Primary: 8400 Ohm C. T.
• Secondary: 4, 8, 16 Ohm
• Power: 18 Watt

Files:

• Datasheet

Belton Retainer for use with 6L6, EL34 and tubes with similar size.
Mounts on Chassis.

Belton Retainer for use with EL84 and tubes with similar size. Mounts on Chassis.
