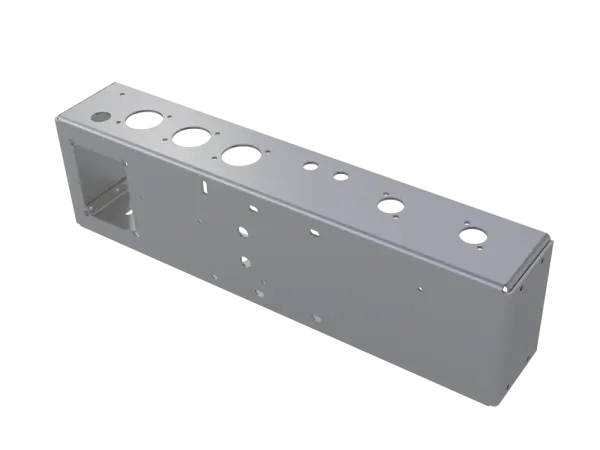

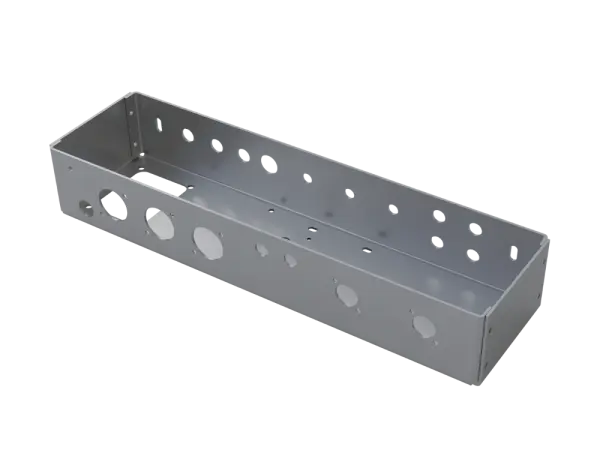

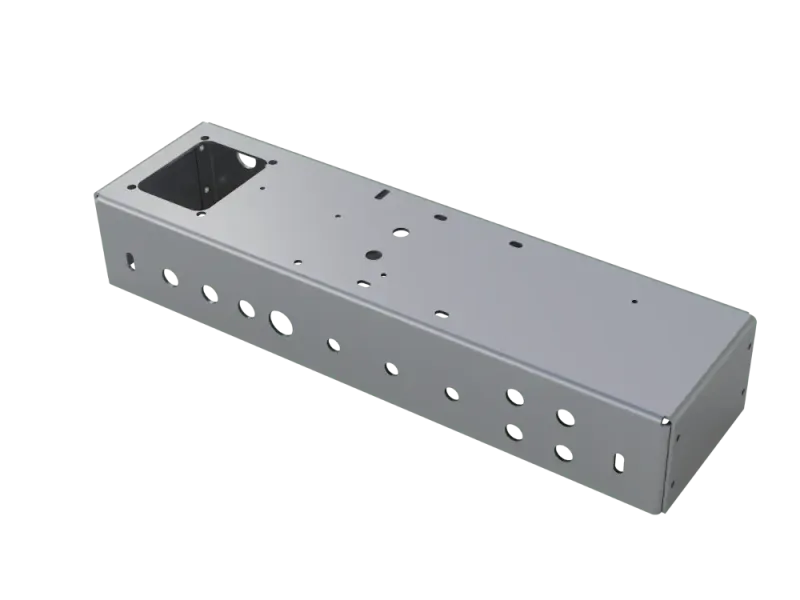

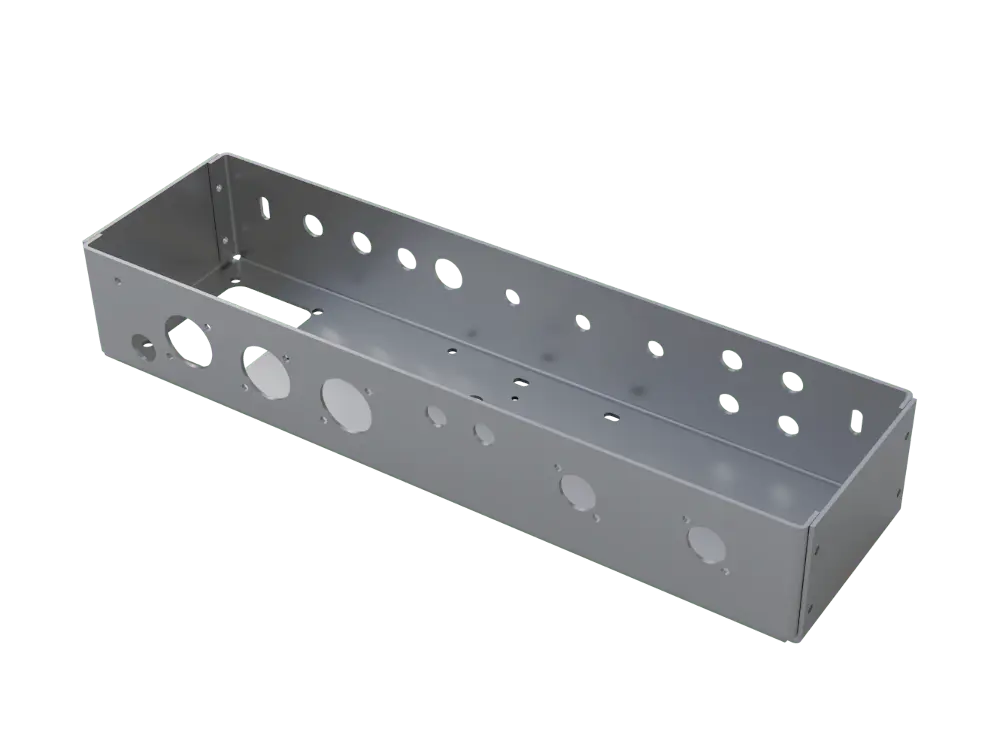

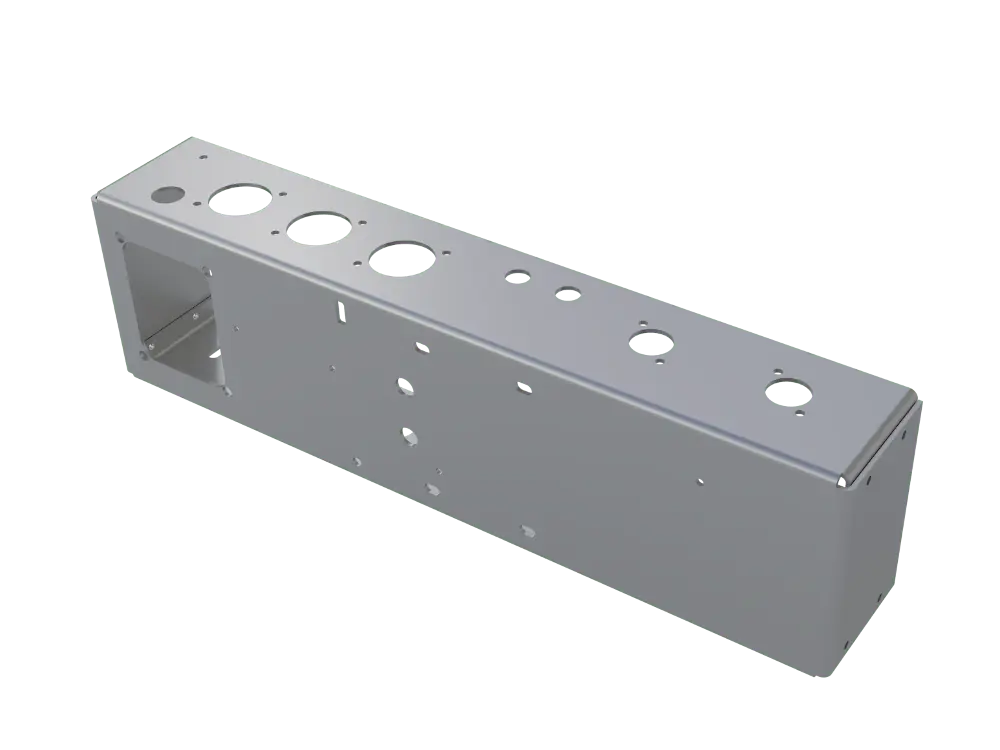

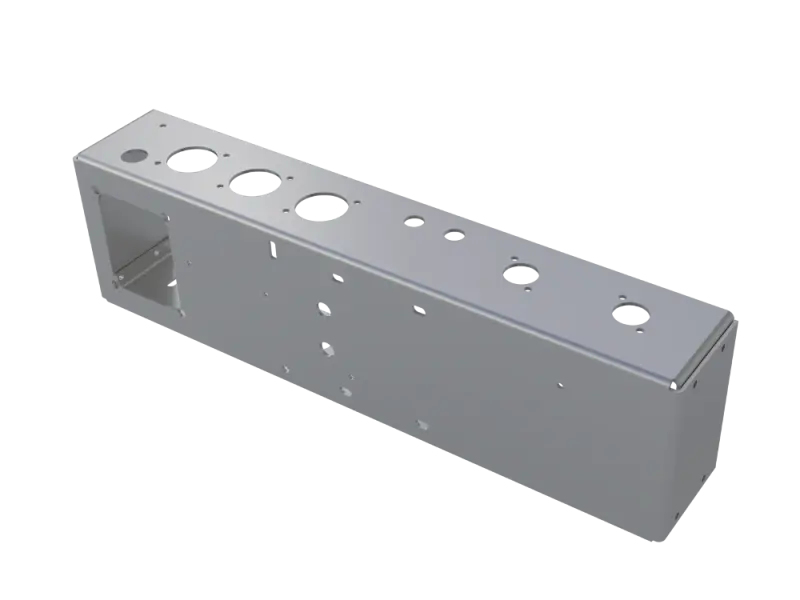

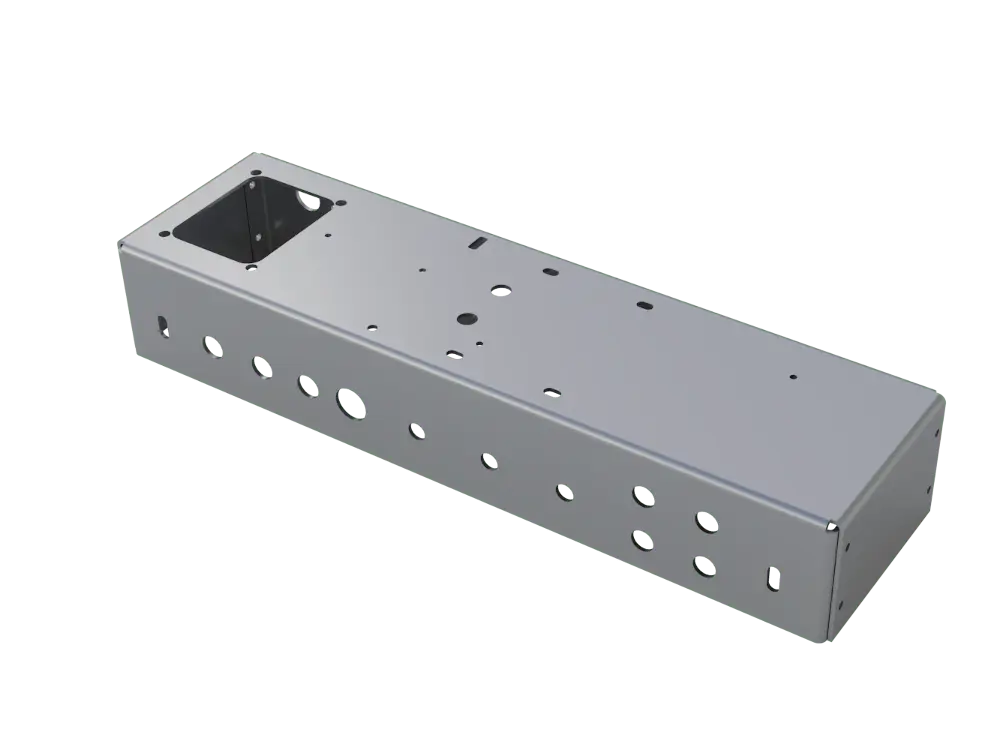

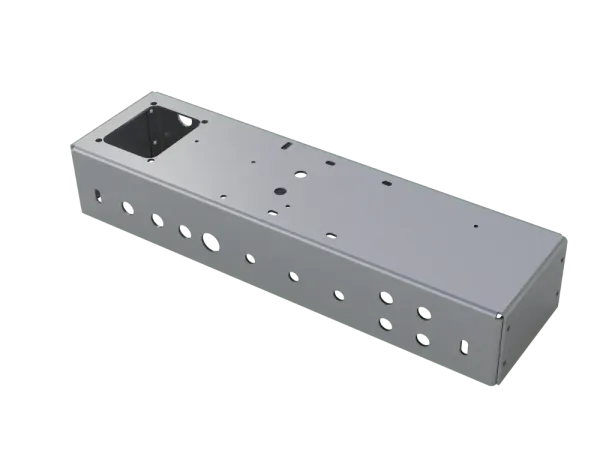

5E3 Hi-Power Aluminium Chassis

  • Size: 400 x 110 x 67 mm
  • Material: 2 mm Aluminium (AlMg3)
  • Lettering: none
  • Fits TT-XT5-PW and similar PTs
  • Made in Germany
