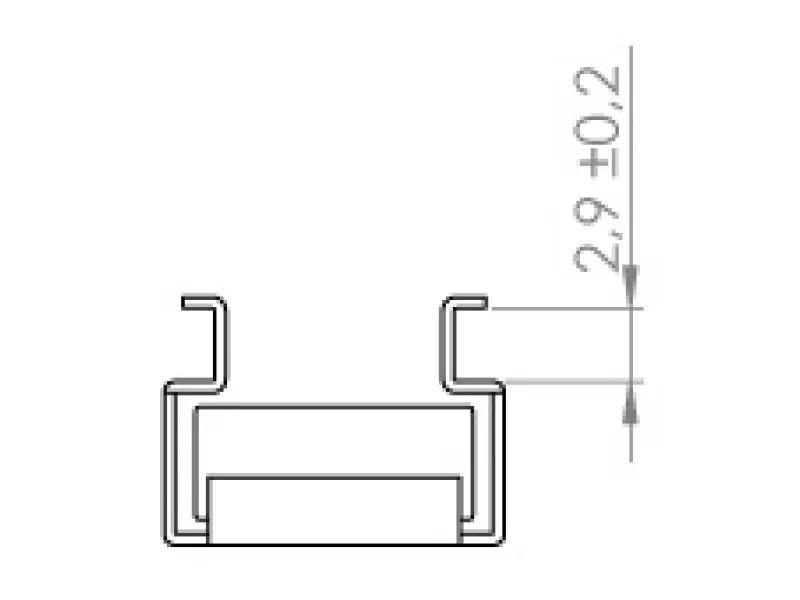

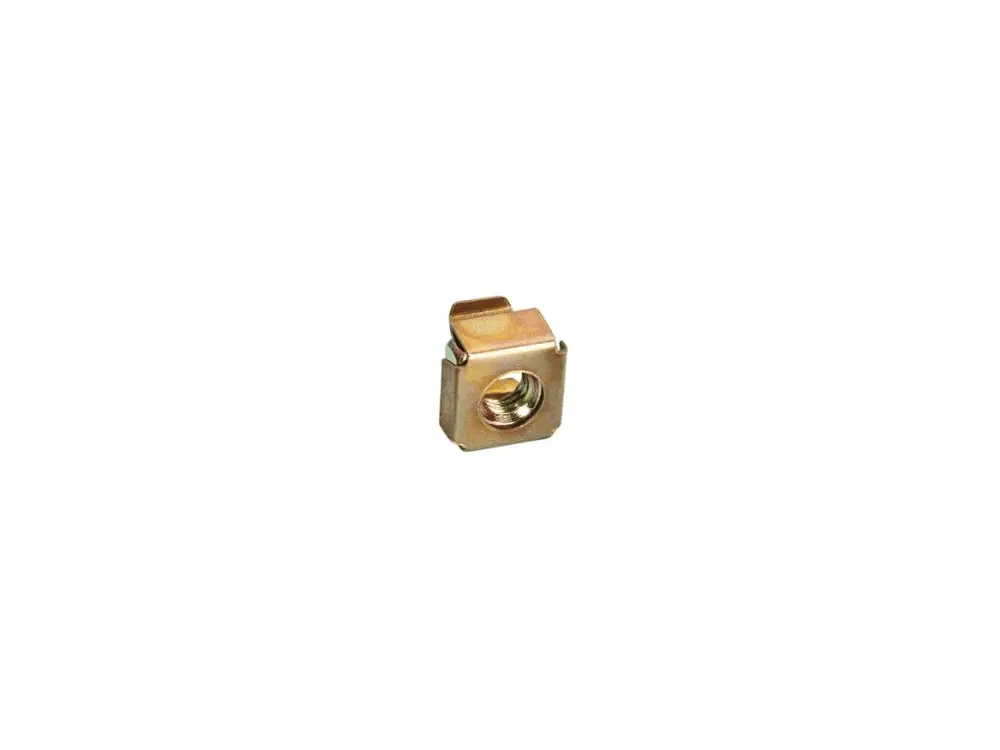

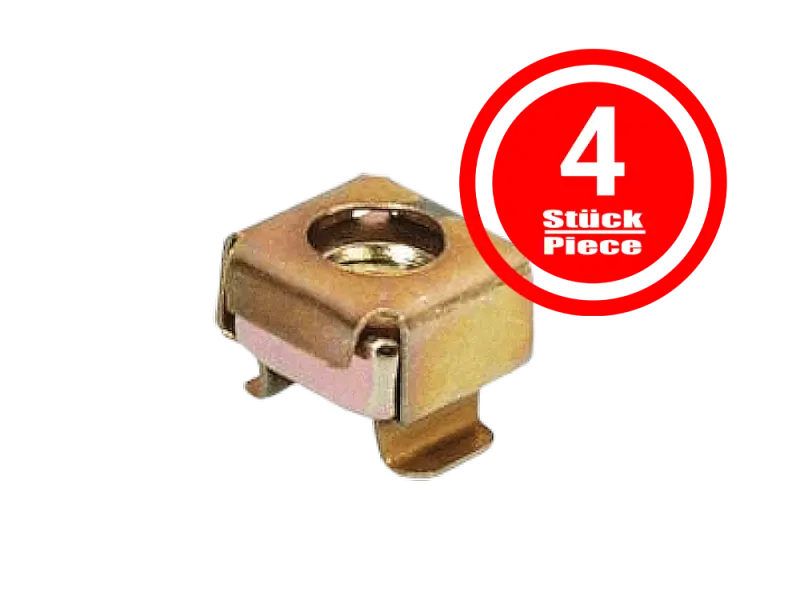

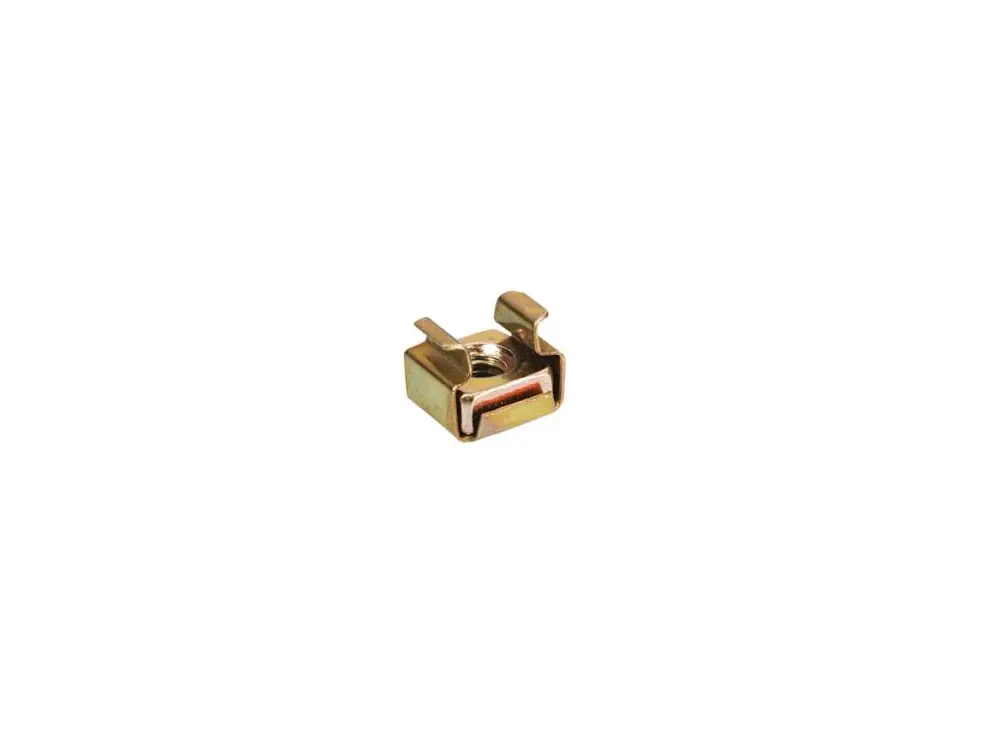

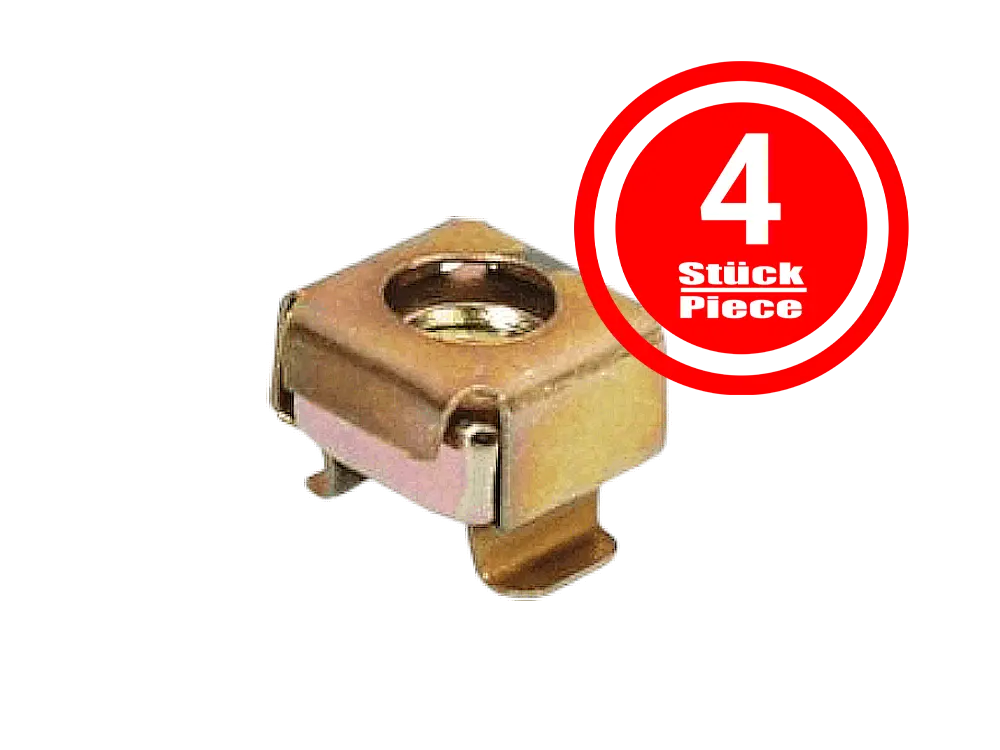

Cagenut (wide slot), M6 - Pack of 4

• T-Nut M4
• Pack with 8 pcs.

• with fine thread
• phosphated, black-gray
• 3,9 x 25, Stahl
• PH 2
• Pack of 100

• Type: Electrolytic can capacitor
• Capacitance: 1000 µF
• Voltage Rating: 25 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 10 mm x 19 mm
• Termination Style: radial
• Grid: 5

Images are for reference only. See Product Specifications

2 tubes, matched as pair

Standard EL34 made by JJ with a smooth and dizzy sound.

Limiting Values:

• Ua0: 2000 V
• Ua: 800 V
• Wa(max): 25 W
• Ug20: 800 V
• Ug2: 450 V
• Wg2(max): 8 W
• Ik: 150 mA
• Uk/f: 100 V
• Rk/f: 20 kΩ

• Datasheet

4 Tubes matched as quad
Superior high-voltage Power Pentode with traditional brown base. Faithful re-issue of the original Russian EL34. Preferred by many guitarist for its brighter sound with more mid-punch. Also in demand by Hifi enthusiasts.
Reissue Made in Russia

Files:

• Datasheet

Original Marshall vent, plastic black for JCM800 chassis

• outer dimensions: ca. 450 x 76 mm
• cut-out: ca. 415 x 46 mm

• Inductance (+/- 15%): 5 H
• Resistance (+/- 15%): 65 Ohm
• max Current DC: 200 mA
• max Voltage DC: 600 V
• Leads: min 12 cm
• Hipot tested (100%) at 1500 VAC
• Operating temperature range: -40° bis + 65° Celsius

• Datasheet

• Signal wire LiYDY 1 x 0,14 mm², shielded
• Diameter Outside: ca. 2,6 mm
• Voltage Rating max: 50 / 75 V AC / DC
• Capacity: ca. 260 pF / m
• Temperature range: -10 bis +70 C°
• Conductor resistance: 40 Ohm / km @ 20 C°
• Test voltage: > 1 kHz
• IEC 60228/ VDE 0295
• 5 meter

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

The Ultimate 12AX7. Big, warm, and musical. High Gain, ultra-low microphonics, and superb linearity with a dynamic 3-D sound.

4 tubes, matched as quad

Improved JJ EL34, with a modified cathode.
Hint: if you replace an EL34 with an E34L you should also check the bias.

Files:

• Datasheet
