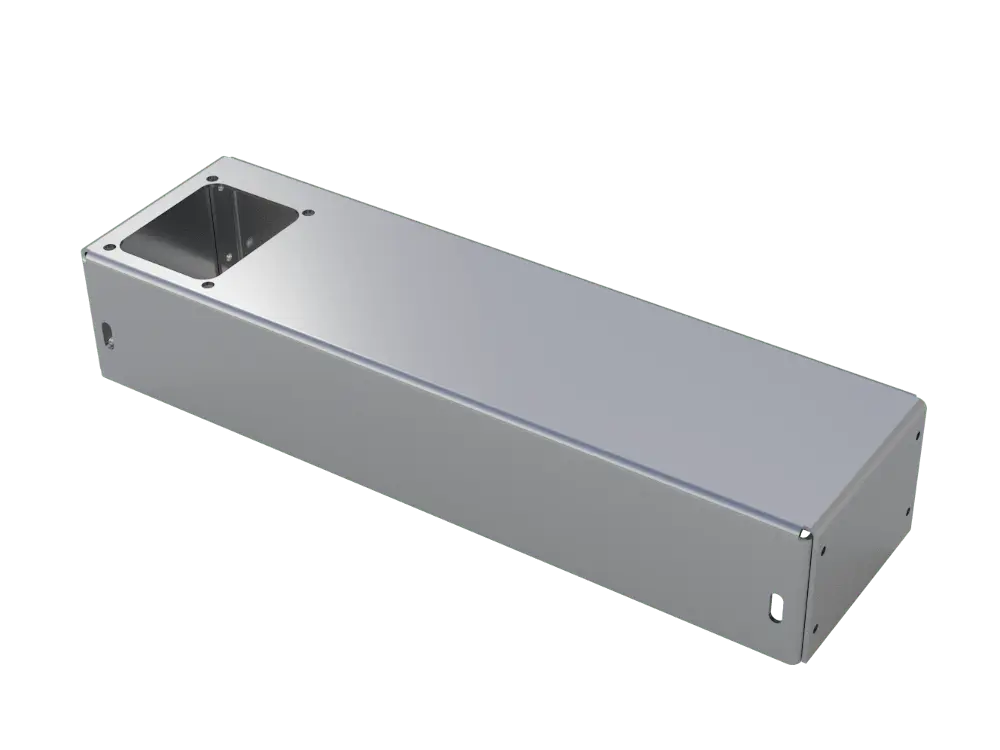

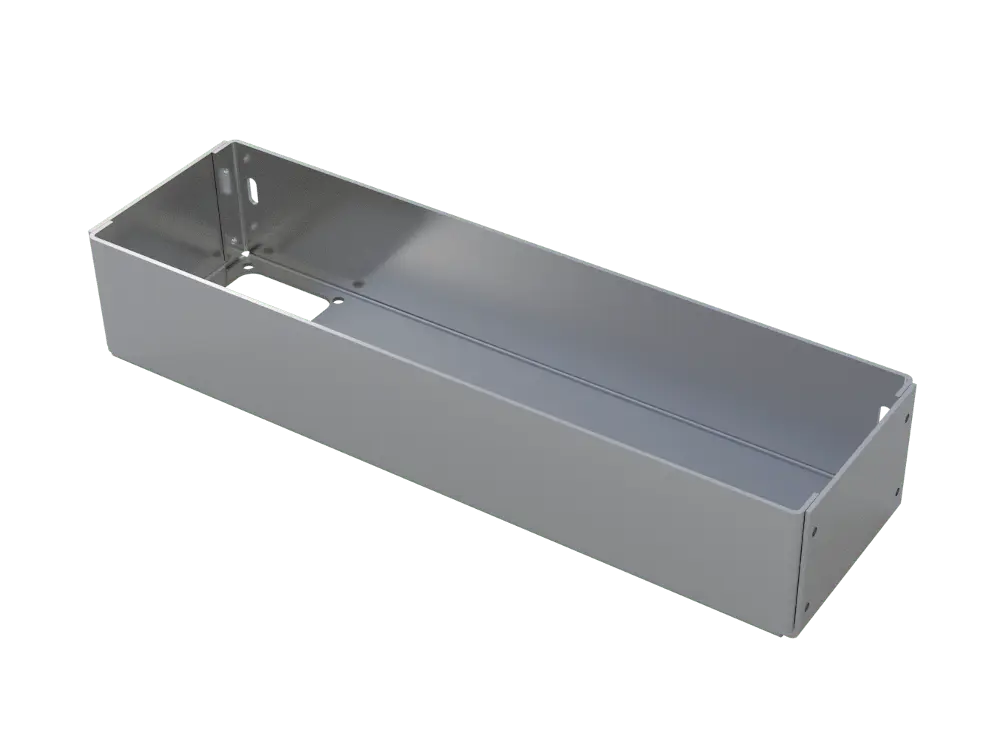

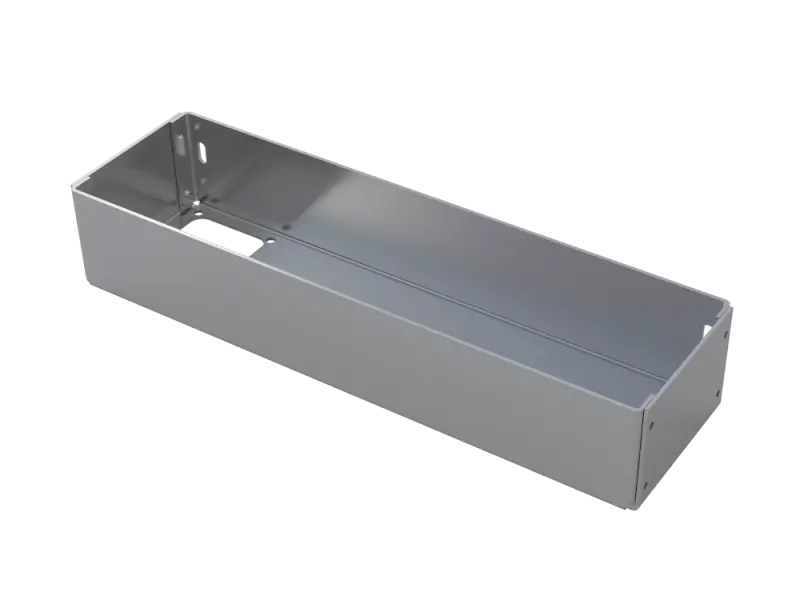

TT-Chassis Fender Style 5E3 Generic

• Universal Primary: 120/220/230/240V 50/60 Hz
• Powertransformer for (Bronco, AA764, AB764, Blackface, Silverface) (Champ, Tweed, 5C1, 5E1, 5F1, AA764, Blackface, Silverface, Vibro Blackface) (Harvard, 6G10) (Princeton Tweed, 5B2, 5C2, 5D2, 5E2, 5F2, 5F2A) (Princeton, Brown, AA964, Blackface, Silverface) (Princeton Reverb, AA1164, AA764, B1270, Blackface, Silverface)
• Fender Part Number 125P1B and 022772
• 291AEX uses high grade 29M6 magnetic steel laminations for reduced losses, more surge output power, cooler operation & longer life.

Files:

• Datasheet

• Pri.: 0-230V-240V (50Hz)
• Sec.1: 325-CT-325 V @ 85 mA DC
• Sec.2: 6,3V C.T. @ 2,5A
• Sec.3: 0-5V @ 2A
• Made in Europe

• Bronco, AA764, AB764, Blackface, Silverface
• Champ, Tweed, 5C1, 5E1, 5F1, AA764, Blackface, Silverface, Vibro Blackface
• Harvard, 6G10
• Princeton Tweed, 5B2, 5C2, 5D2, 5E2, 5F2, 5F2A
• Princeton, Brown, AA964, Blackface, Silverface
• Princeton Reverb, AA1164, AA764, B1270, Blackface, Silverface
• Fender Part Number 125P1B and 022772

Files:

• Datasheet

Tube-Town EZ-Board for Fender 5F1

• Optimized board, improved grounding
• Used for the TT 5F1 kit
• Material: 1,5 mm FR3, black

• Pri.: 0-230V-240V (50Hz)
• Sec.1: 325-CT-325 V @ 85 mA DC
• Sec.2: 6,3V C.T. @ 2,5A
• Sec.3: 0-5V @ 2A
• Made in Europe

• Bronco, AA764, AB764, Blackface, Silverface
• Champ, Tweed, 5C1, 5E1, 5F1, AA764, Blackface, Silverface, Vibro Blackface
• Harvard, 6G10
• Princeton Tweed, 5B2, 5C2, 5D2, 5E2, 5F2, 5F2A
• Princeton, Brown, AA964, Blackface, Silverface
• Princeton Reverb, AA1164, AA764, B1270, Blackface, Silverface
• Fender Part Number 125P1B and 022772

Files:

• Datasheet

JJ5Y3S rectifier tube with directly heated cathode. Robust and durable.

Files:

• Datasheet

• Rated Voltage: 250 VAC
• Contact caps: nickel-plated brass
• Size: Ø 5 mm x 20 mm
• Pack of 10

• Tube-Town EZ-Board 5E3
• Size: 230 x 71 mm
• Material: 2 mm FR, black
• Can be used as an eyelet board or can be equipped with turrets and used as turret board
• On-board connections already available
• Same board used for the TT-5E3 kits

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• 2+1 Solder lugs
• lugs brass, tinned

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

Spring Retainer EL84 / ELL844 and tubes with a similar size

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures:    –50 bis +180 °C
• Packing:: 5 m
• Cross-Section: 0,5 mm²
• Outer Diameter: 2,1 mm
• Stranded wire structure: 16 x 0,20 mm, tinned copper
