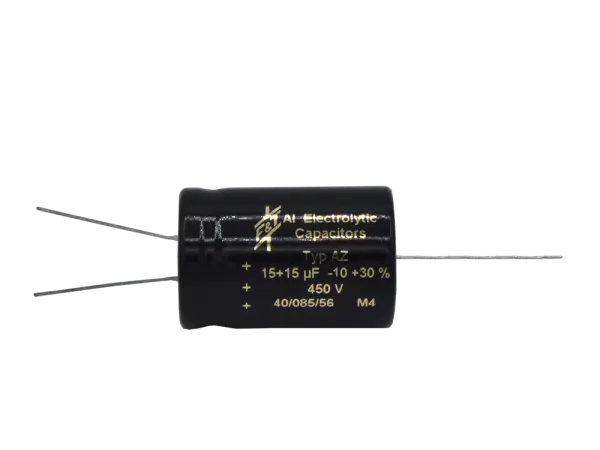

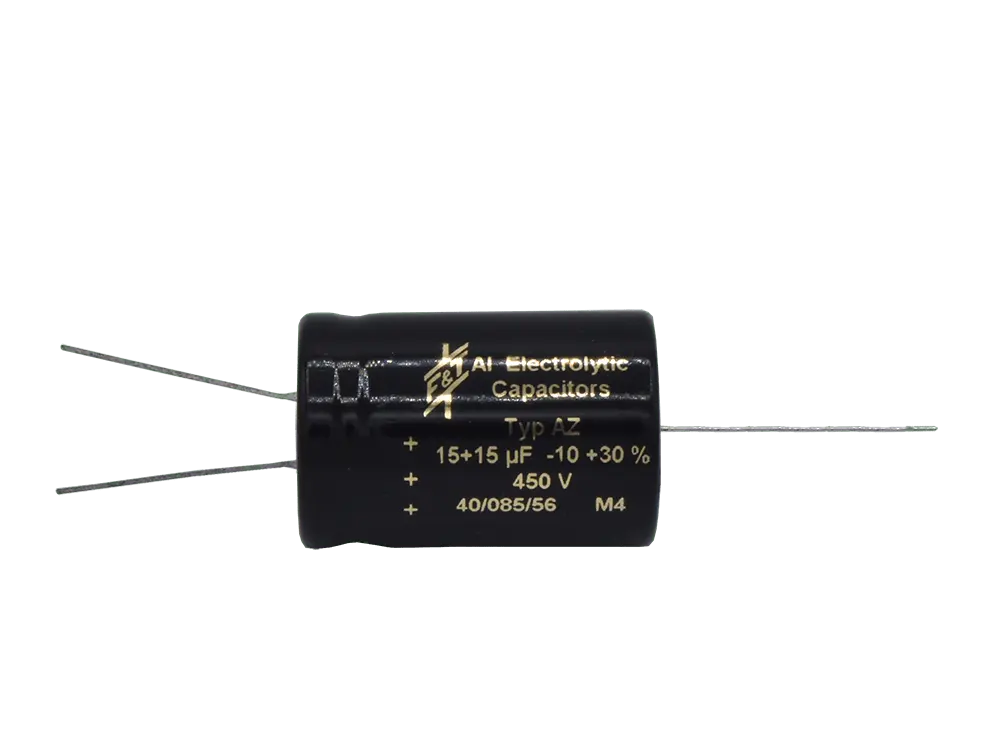

F+T 15+15 µF @ 450 Volt, axial

TT Potentiometer Made by Alpha

Electrical Characteristics

• Total Resistance Tolerance: +/- 20%
• Rated Power
  • B/Lin Taper: 0,125 W
  • A/Log Taper: 0,1 W
• Max. Operating Voltage
  • B/Lin Taper: 150 V AC
  • A/Log Taper: 150V AC
• Noise: 47 mV max.
• Insulation Resistance: 500 V DC 1000MOhm
• Withstand Voltage: 1 minute 500 V AC
• Rotational Life: 15000 Cycles

Mechanical Characteristics

• Shaft Diameter 6 mm
• Shaft Type: Split Shaft
• Shaft Length: ca. 9 mm
• Bushing Length: 6,5 mm
• Body Diameter: 16 mm
• Connectors: Solder Lugs
• Total Rotational Angle: 300° +/- 5°
• Rotational Torque: 30~200gf.cm
• Solder Heat Resistance: 300°C, 3 S

Material

• Shaft: Cast Iron (Aluminium Zinc)
• Bushing Material: Cast Iron

Metalfilm Resistor
Great for amps and effects, low noise, small size, high power rating

Spezification:

• Power: 0,5 Watt
• Voltag: 350 V working / 700 V overload
• Axial Leads
• -55° C - 155° C
• 9,4 * 3,2 mm
• 1,0 %
• RoHS

• Type: Electrolytic capacitor
• Capacitance: 4,7 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 4,5 mm x 11 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

Mica Capacitors

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

Electro-Harmonix has released a low noise, low microphonic version of the 12AX7 that meets all specifications required for the tube to be designated 7025. The original 7025 tube was a 12AX7 that was tested and selected for the lowest noise and microphonics for use in the critical first preamp stages of amplifiers where noise and microphonics could be an issue. In order to ensure that the 7025 specification is consistently met, Electro-Harmonix has redesigned the structure of the 12AX7 and has implemented construction techniques to ensure the absolute lowest noise and microphonics possible. In all samples tested, noise and microphonics could not be detected.

The Electro-Harmonix 7025EH has a mid-range that gives clarity and definition to the sound and a smooth top end for warmth and balance. With these characteristics, along with the exceptionally low noise and low microphonics, the Electro-Harmonix 7025EH will work equally well in vintage and modern high-gain guitar amplifiers, as well as sensitive phono preamps.

• Type: Multisection Capacitor
• Capacitance: 32 + 32 µF
• Voltage Rating: 500 V
• Tolerance: - 10% / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 35 mm x 50 mm
• Termination Style: radial, solder lugs

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

• Type: Metalized Polyester Film Capacitors (PET)
• Voltage Rating: 630 VDC / 220 VAC
• Tolerance: +/- 10%
• Operating Temperature Range: - 55°C / + 100 °C
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 33 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial
