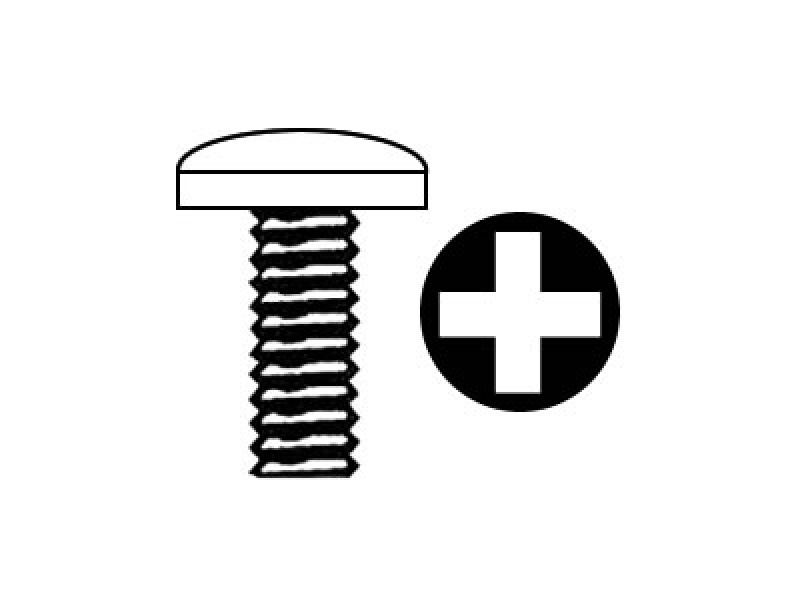

Raised Head Screw, DIN 7985 7045 M4 x 10 mm, 50 pcs

Outputtransformer for Dumble style projects with 6L6GC tubes

• Pri.: 5000 Ohm C.T.
• Sec.: 4-8-16 Ohm
• Power: 50 W (20Hz -3dB)

Files:

• Datasheet

Tube-Town 12AX7 / ECC83 Preamp-Tube

The TT12AX7 impresses with its fine and detailed reproduction of the highs, which is maintained even at high amplification levels. Due to a higher H3 part, the TT12AX7 sounds significantly cleaner than many other 12AX7/ECC83 tubes, which makes the bass range appear much tighter. We therefore especially recommend this tube for styles such as clean, crunch, and metal, where high amplification and clear transparency are required.

Electrical Characteristics

• Heater voltage (Uf): 6.3V or 12.6V
• Heater current (If): 300mA at 6.3V, 150mA at 12.6V
• Anode voltage (Ua): Maximum 300V
• Grid voltages (Ug1): -2V (typical)
• Grid voltages: -50V to 0V
• Anode current (Ia): 1.2mA (typical)
• Anode power dissipation: Maximum 1W per triode
• Anode resistance (ra): 62.5kΩ
• Amplification factor (μ): 100
• Transconductance (S): 1.6mA/V
• Input capacitance (Cin): 1.6pF
• Output capacitance (Cout): 1.6pF

Mechanical Characteristics

• Socket: B9A (Noval)
• Number of pins: 9

Pin Configuration

• 1 Anode (Triode 1)
• 2 Grid (Triode 1)
• 3 Cathode (Triode 1)
• 4 Heater (f)
• 5 Heater (f)
• 6 Anode (Triode 2)
• 7 Grid (Triode 2)
• 8 Cathode (Triode 2)
• 9 Center Heater (f)

Application Notes

• Heater operation: The tube can be operated with 6.3V or 12.6V, depending on the circuit design.
• Grid resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable functionality.
• Coupling capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high-frequency interference.

Tube Shield Noval

• for noval sockets
• Color: silver
• High: 55 mm
• Including Base and Shield

Replacment for Fender Amps

• Chassis Hole: 17,5 mm
• Threading: 9/16 - 24

for Fender Pilot-Light

• BA9s
• #47
• 6,3 V @ 0,15 A

Fender® style lamp jewels

• Threading: 9/16 - 24

2 tubes, matched as pair

The 6L6WXT+ features larger plate dimensions and 20 percent higher output than the Sovtek 5881WXT. Extremely low noise and a excellent detailed and harmonic sound, plenty of power and very easy to handle - even while using in "hot" setups.
