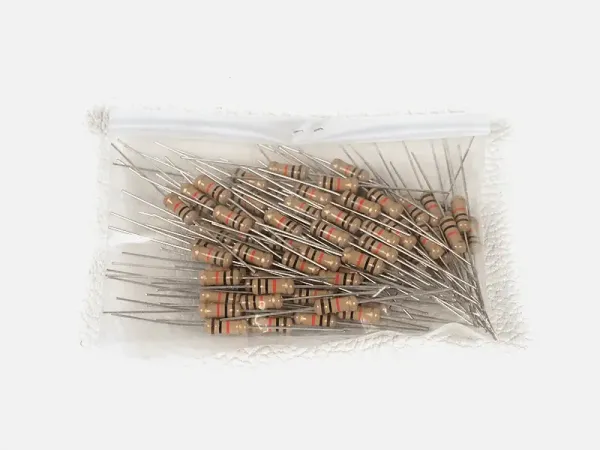

Carbonfilm Resistor 1 Meg / 1 Watt, 100 pcs.

Product No.:: rcf-1m-100
: In stock for immediate delivery. Delivery time depends on the destination country*
Stock:: 3 Pack
RoHs:: conform
Weight:: 0.07 kg per Pack

7,80 €
0,08 € per Piece

incl. VAT excl. Shipping costs

Pack:

Quantity

Bookmark

Ask Question

Description

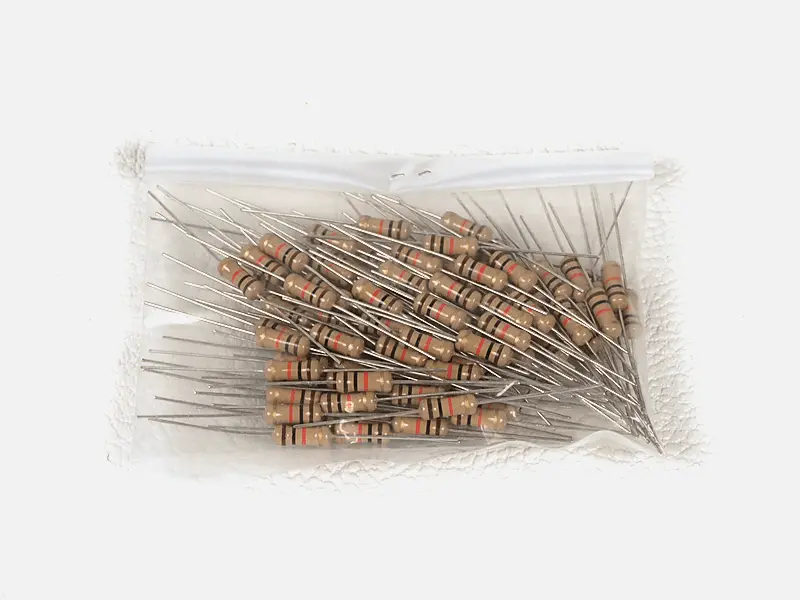

Carbonfilm Resistor, Bulk pack with 100 pieces.

Low noise, small size, high power rating
Power: 1 Watt
Voltag: 500 V working / 1000 V overload
Axial Leads
-55° C - 155° C
12 * 5 mm
RoHS
