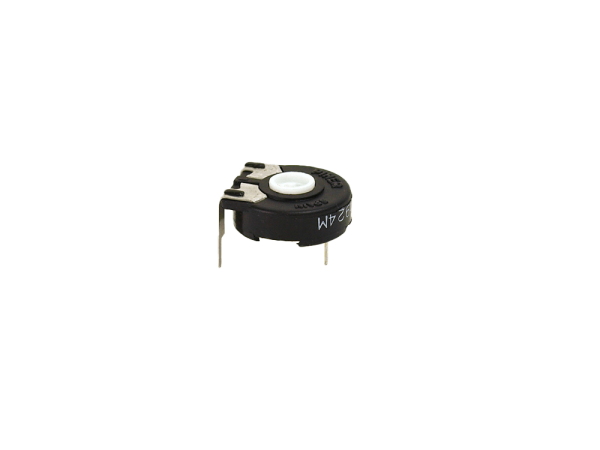

Miniatur-Potentiometer 1M horizontal PT10

Description

Type: Film trimmers
horizontal, 240°
Power Rating: 0,1 W linear
Voltage Rating: max. 200 VDC
Ø: 10,3 mm

Manufacturer

Herstellerinformationen | Manufacturer Information
Amphenol Tuchel Industrial GmbH
August-Häußer-Straße 10
74080 Heilbronn
Germany
https://www.amphenol-industrial.de/
