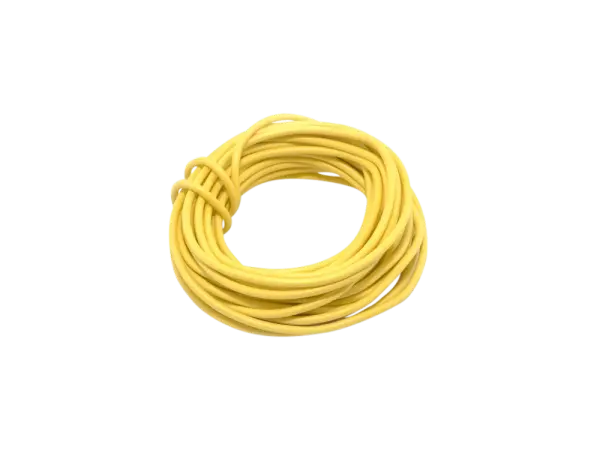

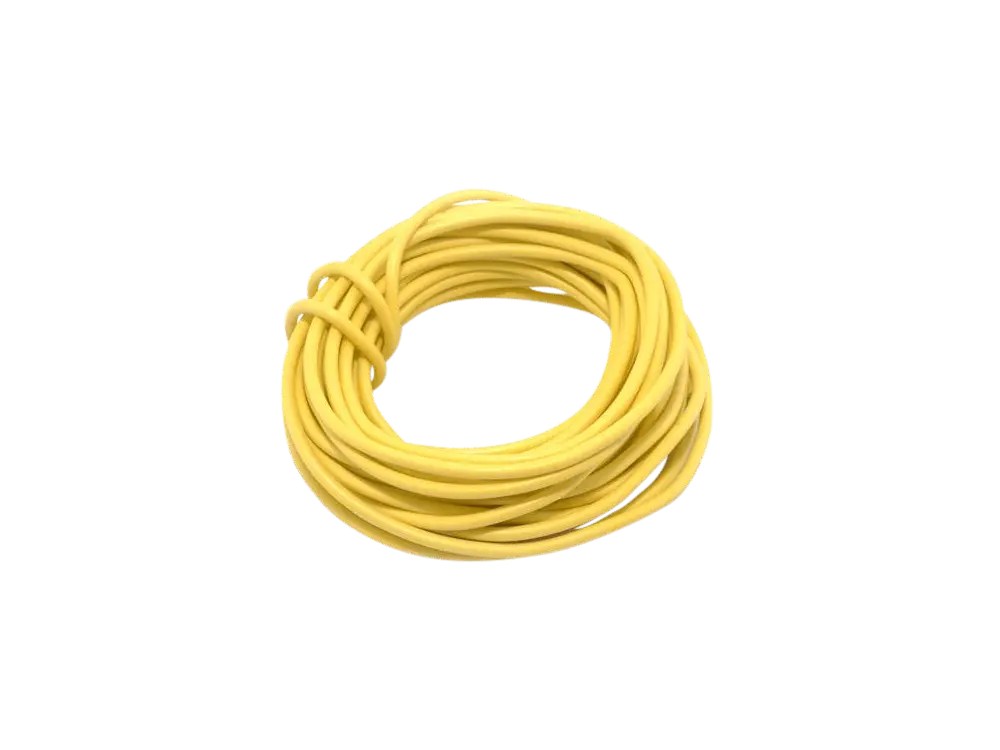

Wire Silicon 0,75 mm² - yellow

Wire Silicon, SiAF

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures:    –50 bis +180 °C
• Packing:: 5 m
• Cross-Section: 0,5 mm²
• Outer Diameter: 2,1 mm
• Stranded wire structure: 16 x 0,20 mm, tinned copper

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers
• Pack of 5

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

Active, serial FX-Loop for a subsequent installation in an existing tube amplifier
The FX-Loop works with  two LND150 in the send and in the return stage. The send and return level can be adjusted to their optimal value with two potentiometers. The Loop works with the present high voltage of the amplifier.
It has two inputs for low and high signal levels.

Input Levels:
InA: 30 - 60 Vpp, max. 65 Vpp
InB: 10 - 15 Vpp, max. 18 Vpp

The FX-Loop utilize POTENTIALLY FATAL HIGH VOLTAGES.
Seek help from a competent technician if you are in any way unfamiliar with high voltage circuits.
Use at your own risk.

Files:

• Documentation

• High Power Resistor
• Power:  25 Watt with heat sink, 12 Watt without heat sink
• Maximum voltage: 550 V
• Temperature range: -25°C - +250°C

RoHS Compliant

Wire Silicon, SiAF

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures: –50 bis +180 °C
• Packing: 5 m
• Cross-Section: 0,75 mm²
• Outer Diameter: 2,25 mm
• Stranded wire structure: 24 x 0,20 mm, tinned copper

Wire Silicon, SiAF

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures: –50 bis +180 °C
• Packing: 5 m
• Cross-Section: 0,75 mm²
• Outer Diameter: 2,25 mm
• Stranded wire structure: 24 x 0,20 mm, tinned copper

Wire Silicon, SiAF

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures: –50 bis +180 °C
• Packing: 5 m
• Cross-Section: 0,75 mm²
• Outer Diameter: 2,25 mm
• Stranded wire structure: 24 x 0,20 mm, tinned copper

Wire Silicon, SiAF

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures: –50 bis +180 °C
• Packing: 5 m
• Cross-Section: 0,75 mm²
• Outer Diameter: 2,25 mm
• Stranded wire structure: 24 x 0,20 mm, tinned copper

• Metalfilm Resistor RN65D
• Very low noise (- 40 dB)
• Very low voltage coefficient (5 ppm/V)
• Military-Spezification
• Tolerance: 1 %
• Power Rating:: 0.5 W (1/2 W)
• Voltage Rating: 350 V
• Temperature Coefficient:: +/- 100 PPM / C
• Series: CMF (Military RN, RL)
• Operating Temperature Range: - 65 C to + 175 C
• Dimensions: 4.57 mm Dia. x 4.57 mm W x 14.27 mm L
• RoHS: NO
