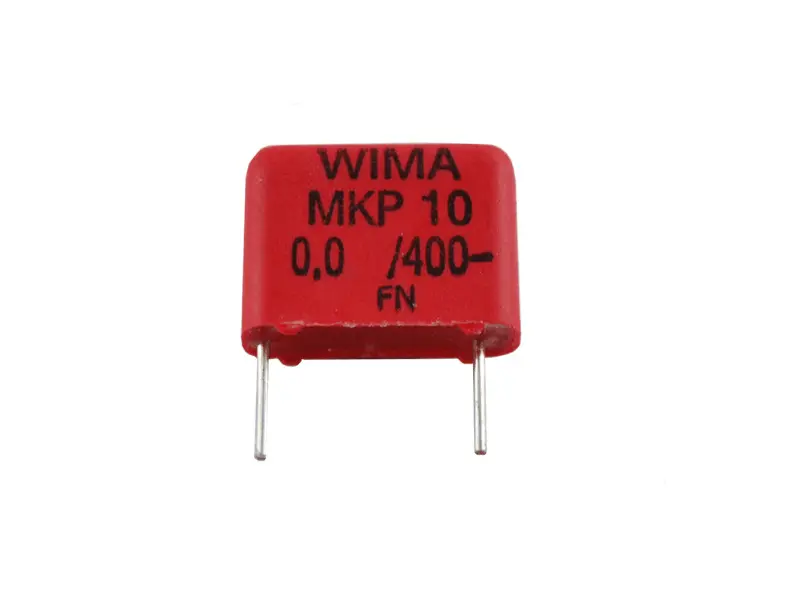

WIMA MKP 10 - 0,01µF / 400 V - film capacitor
- Type: Film capacitor
- Dielectric: polypropylene film
- Coating: plastic foil, metalized on both sides
- Capacitance: 0,01 µF
- Voltage Rating: 400 VDC / 250 VAC
- Tolerance: ±10 %
- IEC climate category: 55/100/56
- Operating Temperature Range: - 55°C / + 100 °C
- Dimensions: 10 x 9 x 4 mm
- Termination Style: radial
- Grid: 7,5
