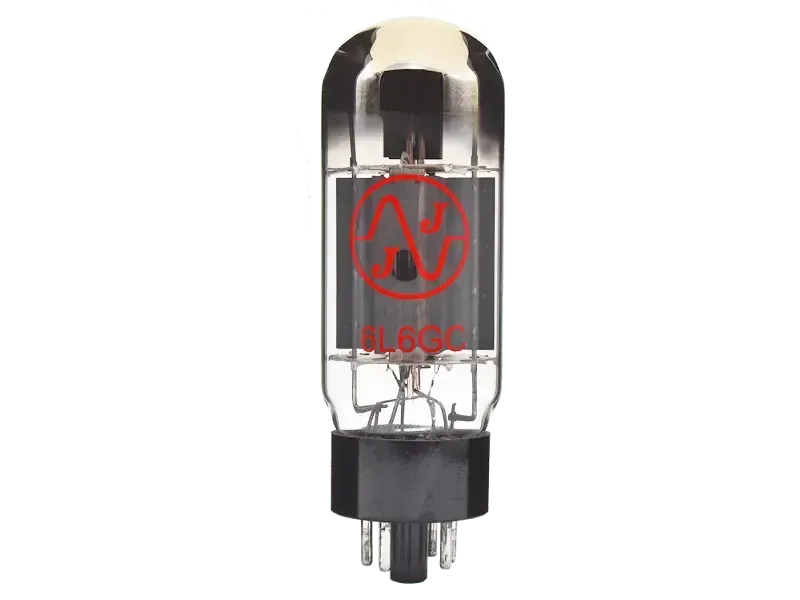

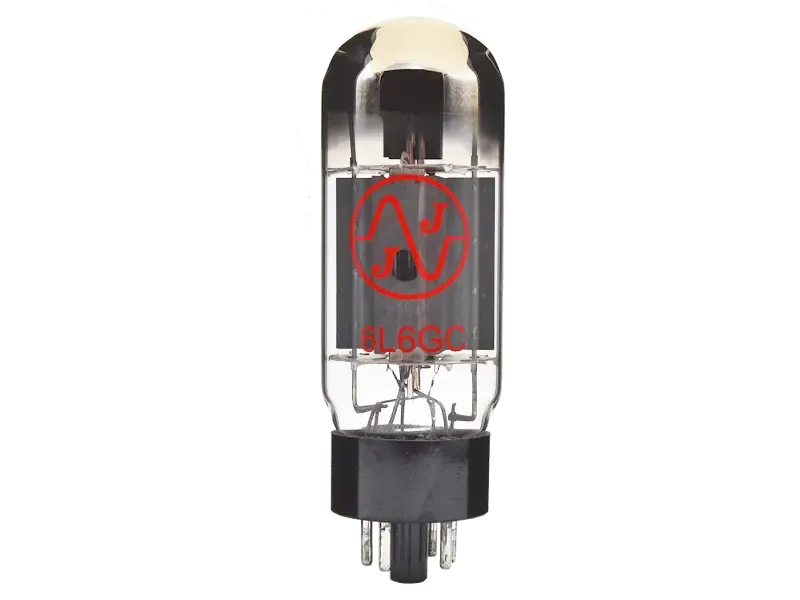

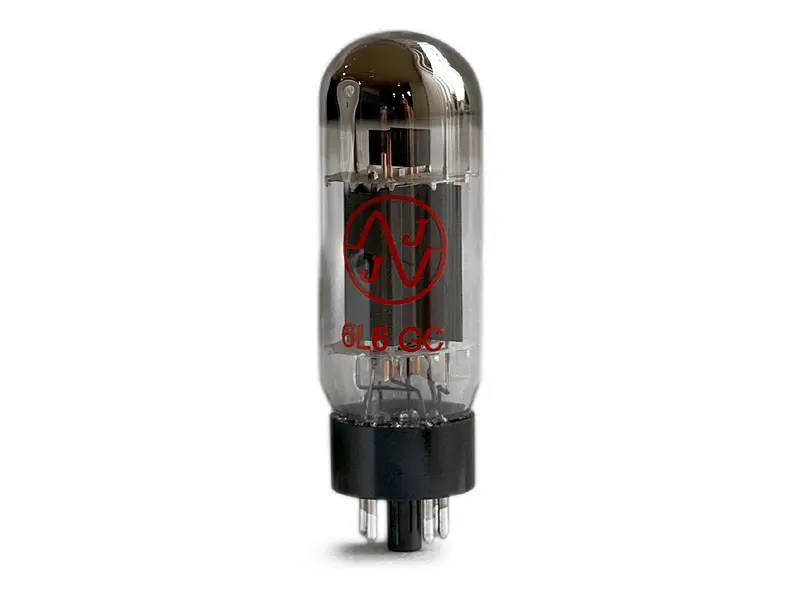

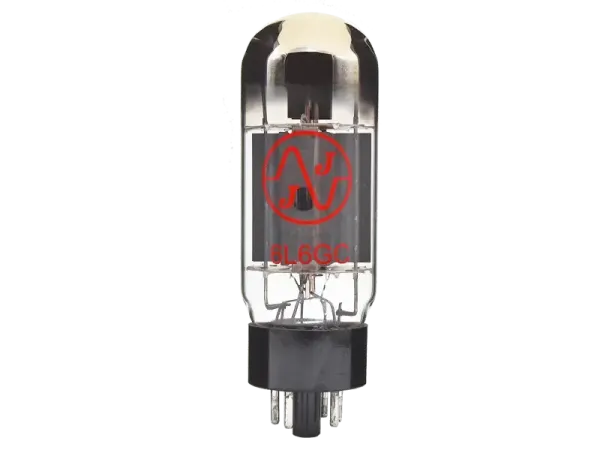

JJ 6L6 - #16 - Mesa RED

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (pe-c1824k)
• High Quality
• Powder Coated black
• Internal radius: 12 mm
• 16 x Screws, flat head, black

• Rubber foot with steel insert
• Size: d = 38 mm, h = 20 mm
• Pack of 4
• Screws included

The 12” Retro 30™ speaker is a brighter and more articulate version of the WGS Veteran 30™ speaker. The Retro 30™ also boasts deeper and tighter bottom end. This speaker is extremely versatile and comes alive on the dirty channel. For those who love to mix speakers, you should pair this with the Reaper™ or the ET65™.

Unit Weight:  10 pounds

Mounting Information

• Diameter: 12.2”
• Overall depth: 5.3”
• Cut-out diameter: 11.1”
• Mounting slot dimensions: 0.31”
• Number of mounting slots: 8

Thiele-Small Parameters (8 Ohm speaker)

• Resonant Frequency (Fs): 103.76 Hz
• DC Resistance (Re): 8.04 Ohm
• Coil Inductance (Le): 0.33 mH
• Mechanical Q (Qms): 9.73
• Electromagnetic Q (Qes): 0.75
• Total Q (Qts): 0.70
• Compliance Equiv. Vol. (Vas): 16.28 cu ft
• Mech. Compliance of Susp. (Cms): 0.09 mm/N
• BL Product (BL): 13.85 T-M
• Diaphragm Mass Inc. Airload (Mms): 27.48 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.63 db

Panel Mount Potentiometer

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M7 (6,8 mm)
• Termination: Solder lugs
• Dimension: 16 mm

waterbased Tolex-Glue, 500 ml

How To use ?
The glue must be applied onto the wood and the Tolex.
After a dyring time of ca. 30 min the Tolex can be put onto the wood.

And how much glue do you need ?
The can of 500 ml is enough for ca. 2.3 m². This is enough for a TTC212REX and there is still about 100 ml glue left.

Attention
For a better adhesive power it is recommended to put a second layer of glue onto the tolex after the drying time.

Files:

• Safety Datasheet

Case Handle imitation leather, Dog-Bone Style

• Mounting fittings: Steel, nickel plated
• Color: Light brown
• WITHOUT NUTS AND SCREWS

4 tubes, matched as quad

JJ 6V6 Double Mica double-layered mica in the upper part of the tube. This stabilizes the tube system and significantly reduces possible vibrations that can occur due to heavy mechanical stress. This version of the JJ 6V6 was specifically designed for use in combo amplifiers.

The JJ6V6 is a beam power pentode with octal base and a maximum plate dissipation of 14W. It has fat low end and full mid tones with very good tone separation and a smooth, clean high end - in general, a very balanced tone.
Currently, the only new production 6V6 which is approved for up to 500V anode voltage in pentode operation.

Files:

• Datasheet
