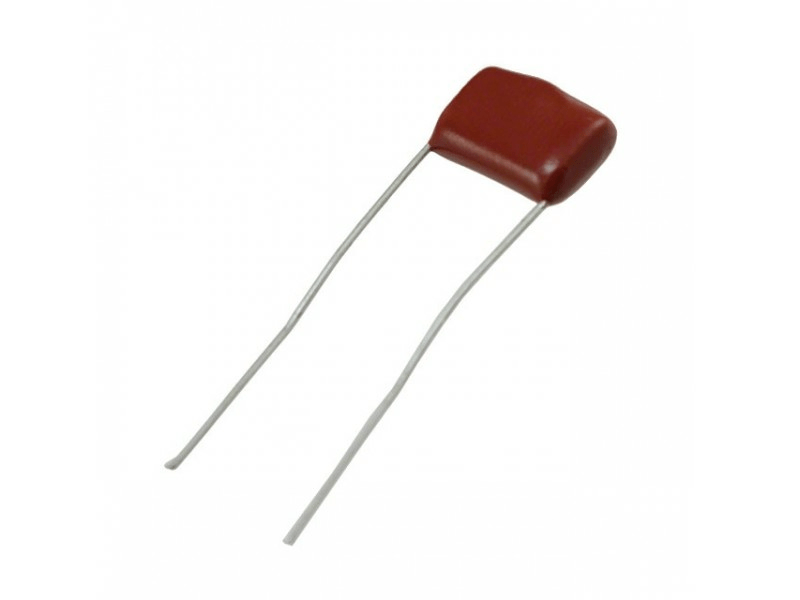

CD DME Polyester Film 0,01 µF / 630 V
CD DME Polyester Film 0,01 µF / 630 V
CD DME Polyester Film 0,01 µF / 630 V

CD DME Polyester Film 0,01 µF / 630 V

Product No.:
cdme-0.01-630
In stock for immediate delivery. Delivery time depends on the destination country* In stock for immediate delivery. Delivery time depends on the destination country*
RoHs:
conform
Weight:
0.001 kg per piece
0,95 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description
Polyester Film Capacitors
  • Voltage Rating: 630 V
  • Tolerance: +/- 10%
  • Operating Temperature Range:c- 55°C / + 125 °C
  • Termination Style: radial
Documents
Cornell Dubilier DME Datasheet  (217.17 KB)
Customer reviews

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Unfortunately there are no review yet. Be the first who rate this product.
