• Pri: 0-120-230-240 V (black-yellow-purple-red)
• Sec 1: 200 V @ 0,085 A (red)
• Sec 2: 6,3 V @ 2 A (green)
• long leads ca 200 mm
• h=35mm d=70mm
• 50/60 Hz EN 61558

Mica Capacitors

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

Very low noise (- 40 dB)
Very low voltage coefficient (5 ppm/V)
Military-Spezification

• Silver-plated Copper wire
• Wire diameter 0.6 mm
• Length: 10 m

Very low noise (- 40 dB)
Very low voltage coefficient (5 ppm/V)
Military-Spezification

Mounting set for case handles with 4 holes consisting of

•     4 x T-Nut M4
•     4 x Countersunk screw M4x25 mm, nickel-plated

Outputtransformer for projects with i.e. ECC99 tubes
Same specs as the tt-ot10 but for vertical mount

• Pri.: 15 kOhm C.T.
• Sec.: 4-8-16 Ohm
• Power: 10 W (35Hz -3dB)

Mica Capacitors

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

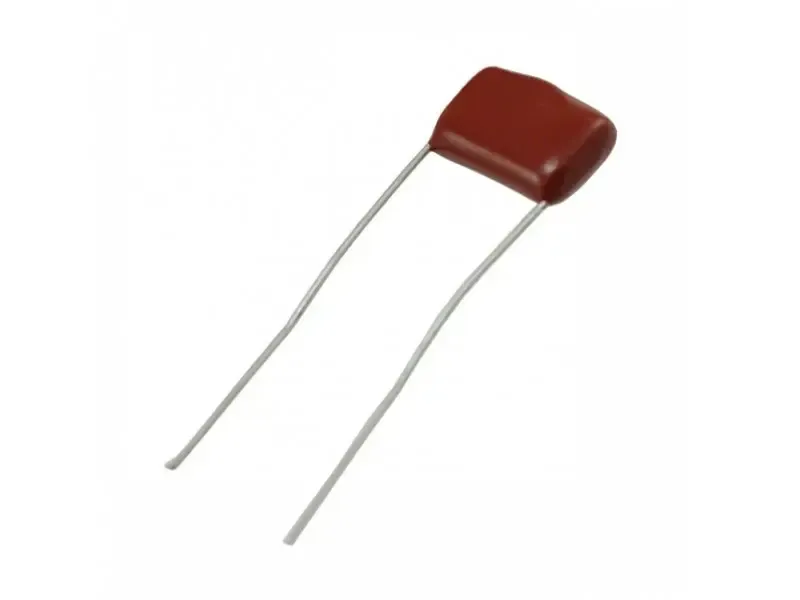

• Type:  Polyester Film Capacitors
• Voltage Rating: 400 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial

• Type: Electrolytic can capacitor
• Capacitance: 47 µF
• Voltage Rating: 400 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 25°C / + 105 °C
• Dimensions: Ø 16 mm x 25 mm
• Termination Style: radial
• Grid: 7,5
