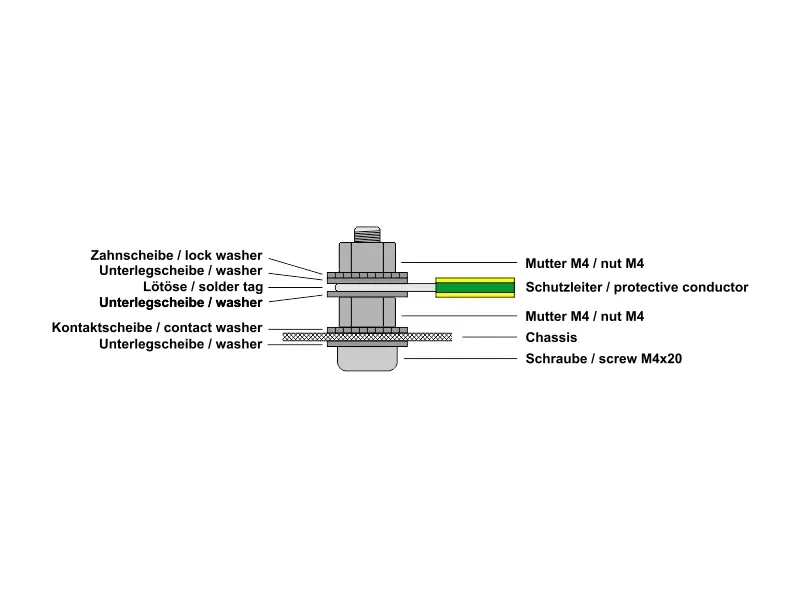

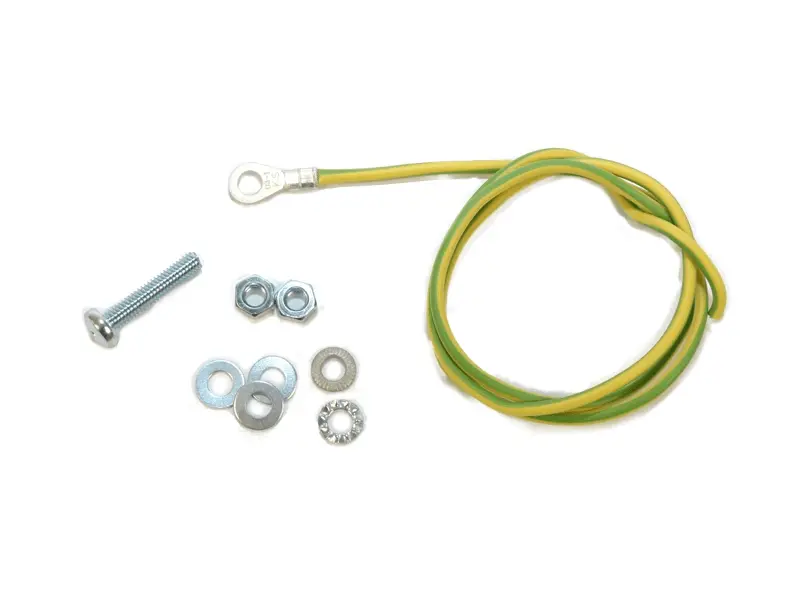

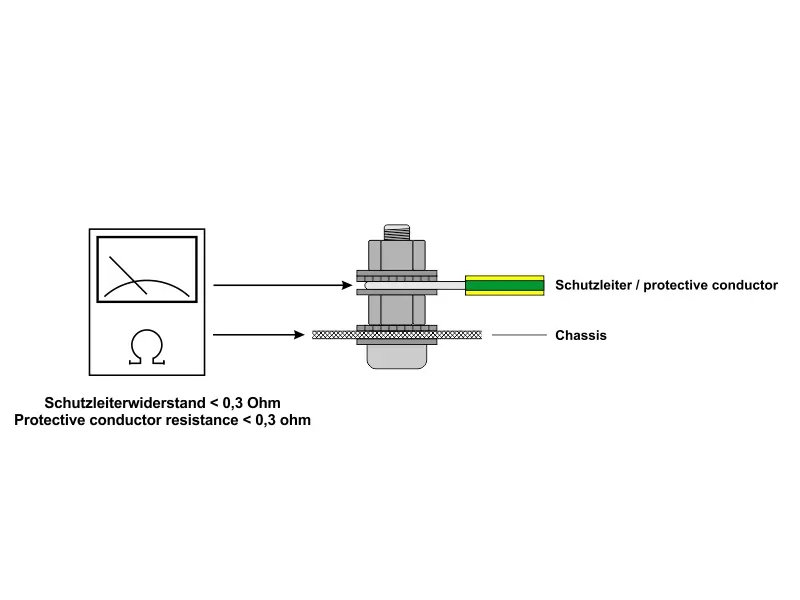

TTCA Wire 0,75 mm² with lug, green-yellow, incl. fastening material

Electrolytic Capacitor

• Capacitance: 100 µF
• Voltage Rating: 500 V
• Tolerance: -10 % / +30 %
• Operating Temperature Range: - 25°C / + 70 °C
• Dimensions: Ø 25 mm x 42 mm
• Termination Style: axial leads

Filter choke, open bracket

• Inductance (+/- 15%): 3 H
• Resistance (+/- 15%): 86 Ohm
• max Current DC: 100 mA
• max Voltage DC: 400 V
• Leads: min 12 cm
• Hipot tested (100%) mit 1500 VAC

Files:

• Datasheet

• Type: Washer
• Material: Steel
• Surface: Zinc-plated
• DIN: 125
• ISO: 7089
• Price: Pack with 100 pcs.

• Type: Washer
• Material: Steel
• Surface: Zinc-plated
• DIN: 125
• ISO: 7089
• Price: Pack with 100 pcs.

Mounting kit for all TT-Chassis which are designed for mounting with cagenuts and 19" housings

Included are:

• 4 x cagenut M6
• 4 x thread screw M6 x 30

Screw set for Torodial-Transformers

1 x Screw M5*60 mm
1 x Screw Lock Nut M5
2 x Washer M5

suitable for this TT Transformers:

tt-t106
tt-t107
tt-t185
tt-t244

Active, serial FX-Loop for a subsequent installation in an existing tube amplifier
The FX-Loop works with  two LND150 in the send and in the return stage. The send and return level can be adjusted to their optimal value with two potentiometers. The Loop works with the present high voltage of the amplifier.
It has two inputs for low and high signal levels.

Input Levels:
InA: 30 - 60 Vpp, max. 65 Vpp
InB: 10 - 15 Vpp, max. 18 Vpp

The FX-Loop utilize POTENTIALLY FATAL HIGH VOLTAGES.
Seek help from a competent technician if you are in any way unfamiliar with high voltage circuits.
Use at your own risk.

Files:

• Documentation
