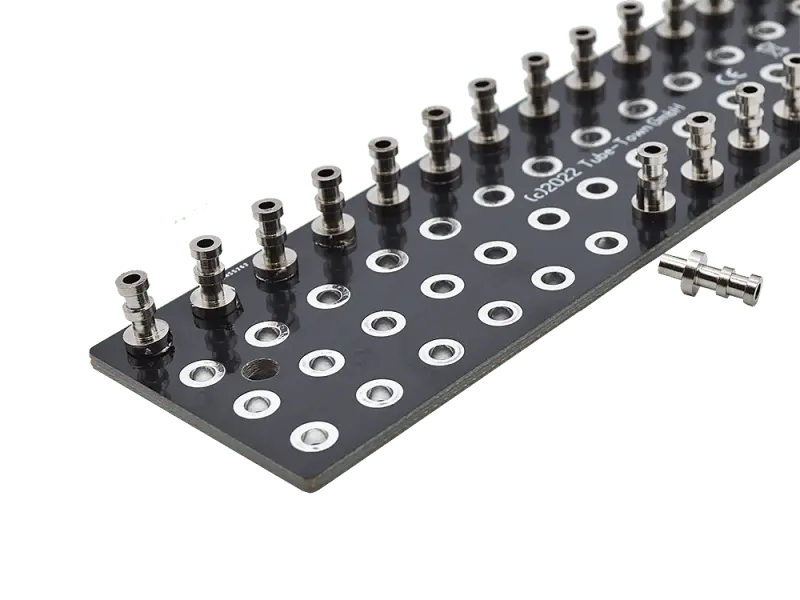

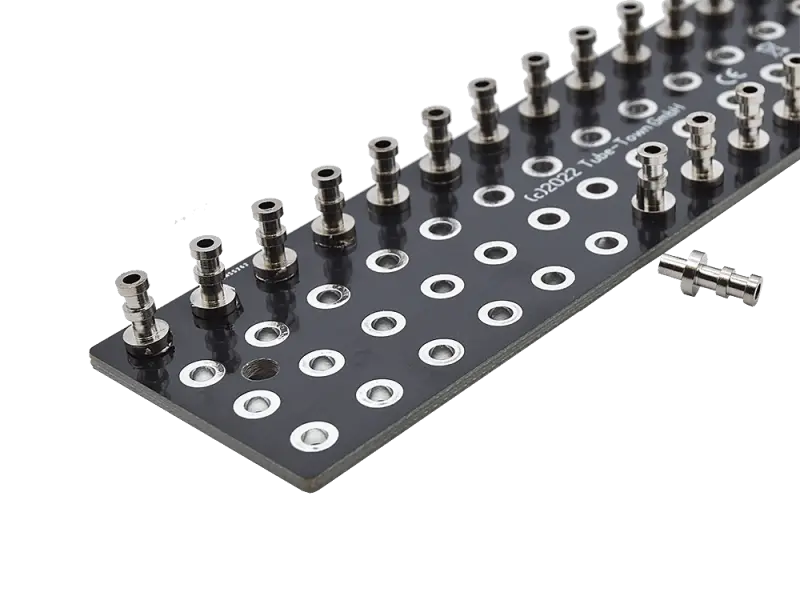

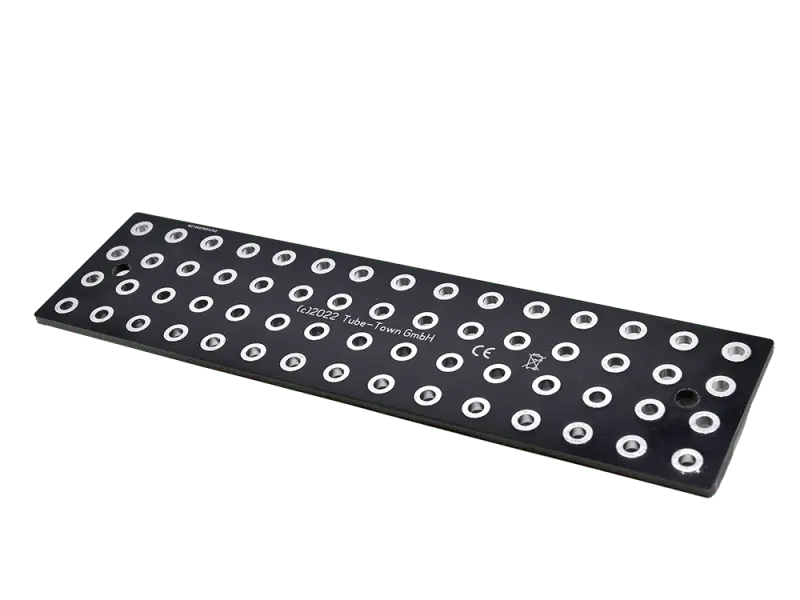

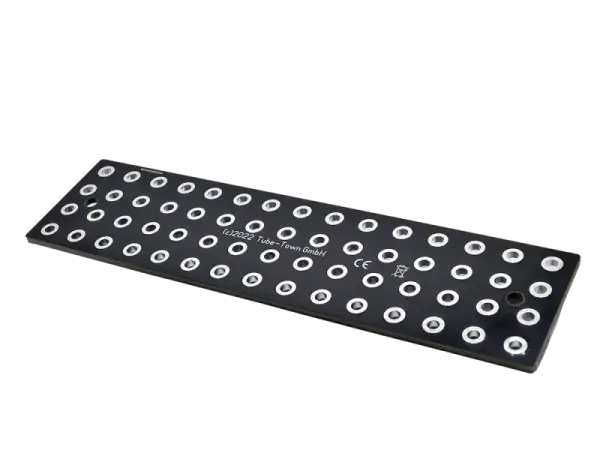

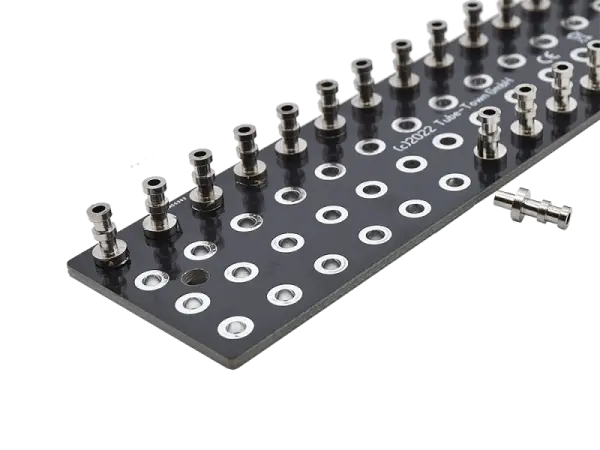

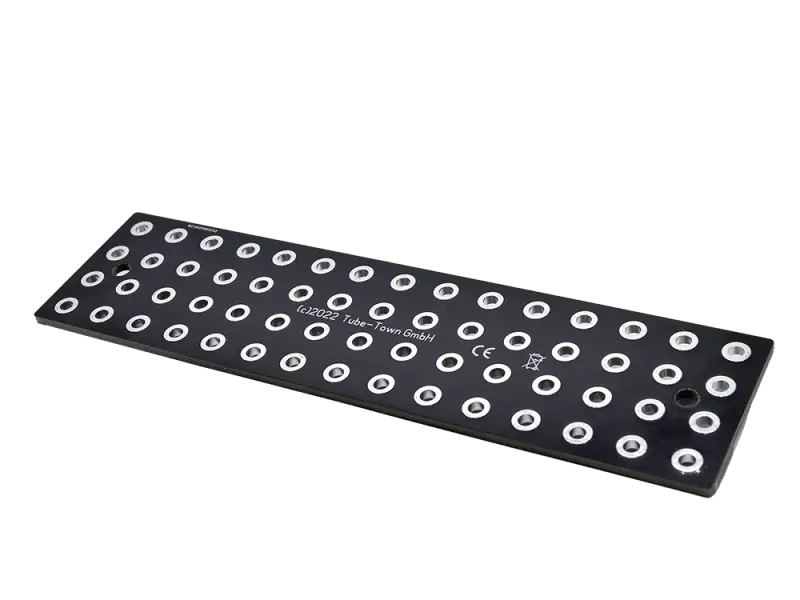

TT EZ-Board Perf board 37 x 143 x 2 mm, black

4 tubes, matched as quad

EL34 II has fuller low mids and low end but does not lose headroom in the high end. Stronger than regular JJ EL34 but not as aggressive as the JJ E34L.

• Ua = 250 V
• Ug3 = 0 V
• Ug2 = 265 V
• Ug1 = -13,5 V
• Ia = 100 mA
• Ig2 = 14,9 mA
• S = 11 mA/V
• Ri = 15 kΩ
• μg2/g1 = 11

• Ua0 = 2000 V
• Ua = 800 V
• Wa(max) = 25 W
• Ug20 = 800 V
• Ug2 = 450 V
• Wg2(max) = 8 W
• Ik = 150 mA
• Uk/f = 100 V
• Rk/f = 20 kΩ

Files:

• Datasheet

• Voltage Rating: 630 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 40°C / + 85°C
• radial
• self-healing
• non inductive

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

• Size: 140 x 38 mm
• Material: FR4, 2 mm
• Color: black
• Turrets: 2 x 15

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 47 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 21 mm x 37 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Resistance: 25k Ohm
• Power: 0,25 W
• Max Voltage: 250 V
• Grid 12,5/10 mm
• Ø: 15,0 mm
• h: 7,0 mm

• Type: Electrolytic capacitor
• Capacitance: 47 µF
• Voltage Rating: 100 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 8 mm x 18 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Type: Electrolytic capacitor
• Capacitance: 22 µF
• Voltage Rating: 100 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 7 mm x 11 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Type: Electrolytic capacitor
• Capacitance: 10 µF
• Voltage Rating: 100 V
• Tolerance: 20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 6,5 mm x 18 mm
• Termination Style: axial

Images are for reference only. See Product Specifications
