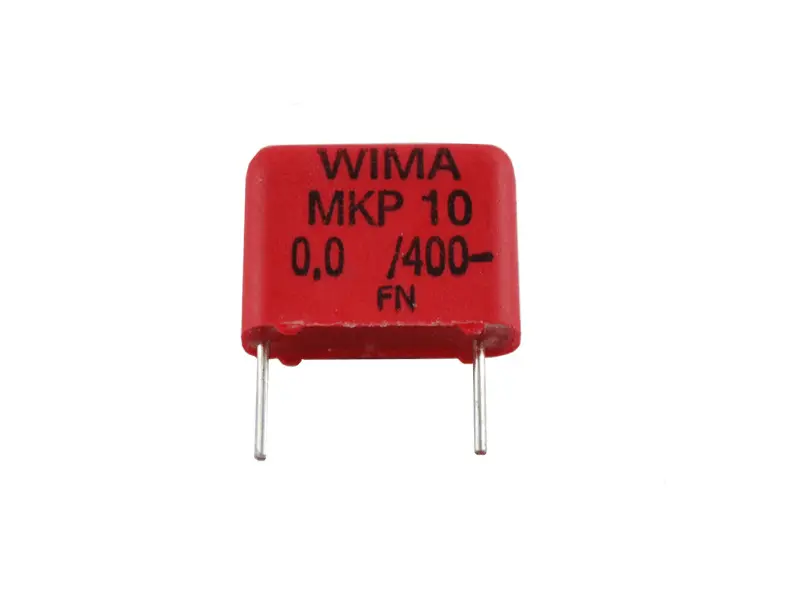

WIMA MKP 10 - 0,1µF / 400 V - film capacitor

Description

Type: Film capacitor
Dielectric: polypropylene film
Coating: plastic foil, metalized on both sides
Capacitance: 0,1 µF
Voltage Rating: 400 VDC / 250 VAC
Tolerance: ±10 %
IEC climate category: 55/100/56
Operating Temperature Range: - 55°C / + 100 °C
Dimensions: 7 x 14 x 18 mm
Termination Style: radial
Grid: 15
