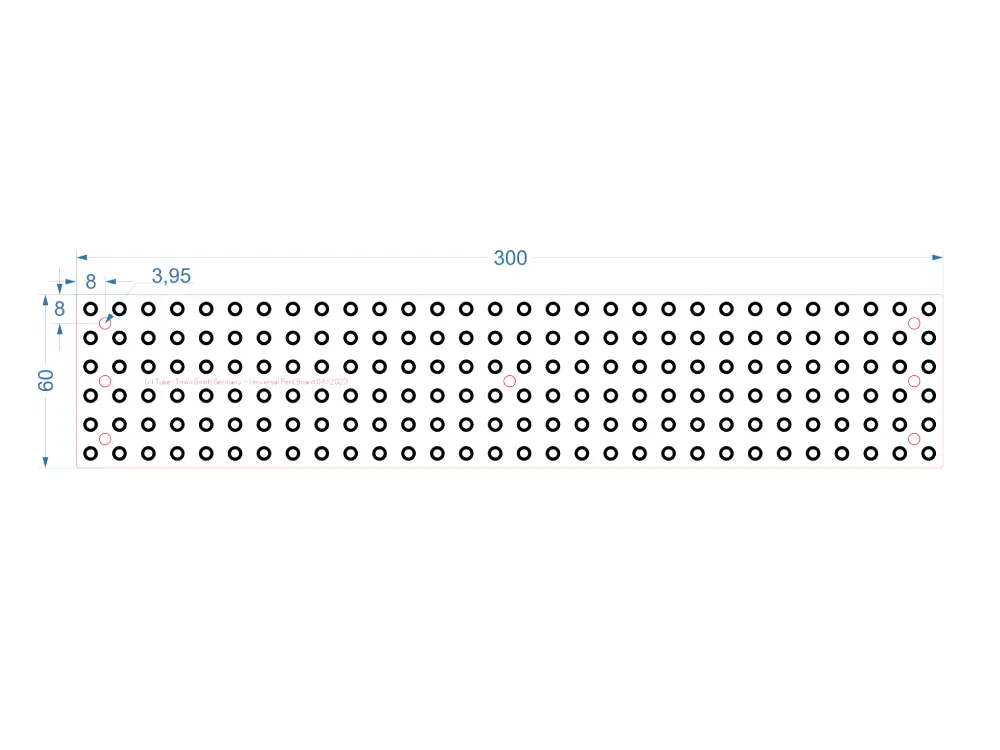

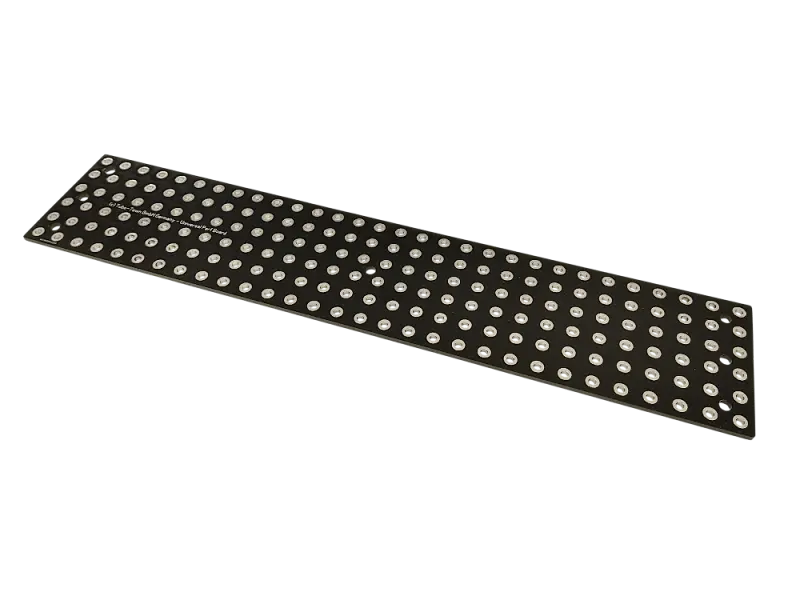

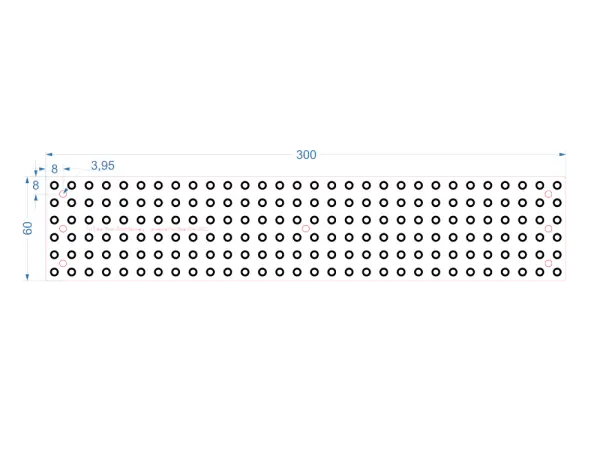

Tube-Town EZ-Board 60 x 300 FR4 2 mm, black

• Turrets
• for 2 mm Boards
• nickel-plated

• Turrets, forked
• for 2 mm Boards
• nickel-plated

Supporting PCB to build a turret socket, components can be mounted directly at the socket.

• Version 2024
• 1,6 mm, black solder mask
• can be used directly as "eylet board"
• turrets for 2mm boards can also be used
• the pin distance is more than 2,5 mm
• conform with actual VDE regulations
• operating voltage 500 V DC
• designed for Belton noval and octal sockets
• with tabs at the side for mounting on an octal socket, these can be snapped off if not needed
• recommended spacer bolts: 30 - 40 mm, M3
• check "accesories" for recommended and fitting parts

Note: The easiest way to assemble the components is when no turrets are used.

Files:

• Application Notes Turret-PCB

• Turrets
• for 2 mm Boards
• nickel-plated

Kit of a bias probe for indirect measurement of the quiescent bias current of a tube. The adapter is placed between the tube and the socket and is connected to a standard voltmeter (not included). Pay attention to the quality of the meter and to sufficiently charged batteries!

The quiescent current is measured indirectly via a precision resistor built into the adapter. The advantages of this measuring method are harmless voltages in the mV range at the measuring plugs as well as short ways for the current, since it does not have to be led through the measuring device (common practice with many measuring adapters of Far Eastern production). As a result, there is no risk of oscillation of the amplifier, which could damage the tubes or the amplifier itself.

Note: This adapter cannot be used when additional tube brackets are installed. These must be removed before using the measurement adapter and reattached after the measurement is complete.

Measurement procedure
Determine the resistance of the adapter, including the test leads. Connect the adapter to the meter, but do not connect it between the tubes and the amplifier. Select the ohms range on the meter and note the reading, e.g. 1.1 ohms.
For the final measurement, insert the adapter between the tube and the de-energized amplifier, connect it to the meter, select the mV range and switch on the amplifier. When the amplifier has reached a stable operating condition, read the value in mV from the meter and calculate the quiescent current using Ohm's law.

Example
Measured voltage = 47 mV, adapter resistance = 1.1 ohms.
Formula (I = V / R) or in this case
Bias Current (in A) = Measured Value (Voltage in V) / Measured Value (Resistance in Ohm)
0.047V / 1.1 Ohm = 0.042A or 42mA

For the calculation of the correct bias current as well as further information on bias measurement please refer to further documents or the bias setting instructions in the info section as well as the manual of the amplifier itself.
This adapter is suitable for all EL34, 6L6, 6550, KT88, 6V6, 6CA7 and other tubes with the same pinout.

Attention HIGH VOLTAGE ! Measurements and work on tube amplifiers should only be done by qualified personnel.

Files:

• Datasheet

Metal Oxide Film Resistors

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

• Type: Octal Socket
• Version: Ceramic
• Termination Style: Print
• for Tube Type: EL34, E34L, 6L6, 6V6, 6550,
•   KT66/77/88 etc.

Sylvania 5751 JAN, Made in USA, NOS, Green Logo

We recommend the Sylvania 5751 as a replacement or upgrade for 12AX7/ECC83 tubes in the input stage of guitar amplifiers (V1 position). Whether your amp is low or high-gain, the Sylvania 5751 provides a full, warm sound with clean bass. These tubes generate a high k2 content, making them ideal for those who prefer a rich sound.
However, the Sylvania 5751 should not be used in cathode follower stages (CF) specifically designed for 12AX7/ECC83 tubes.
