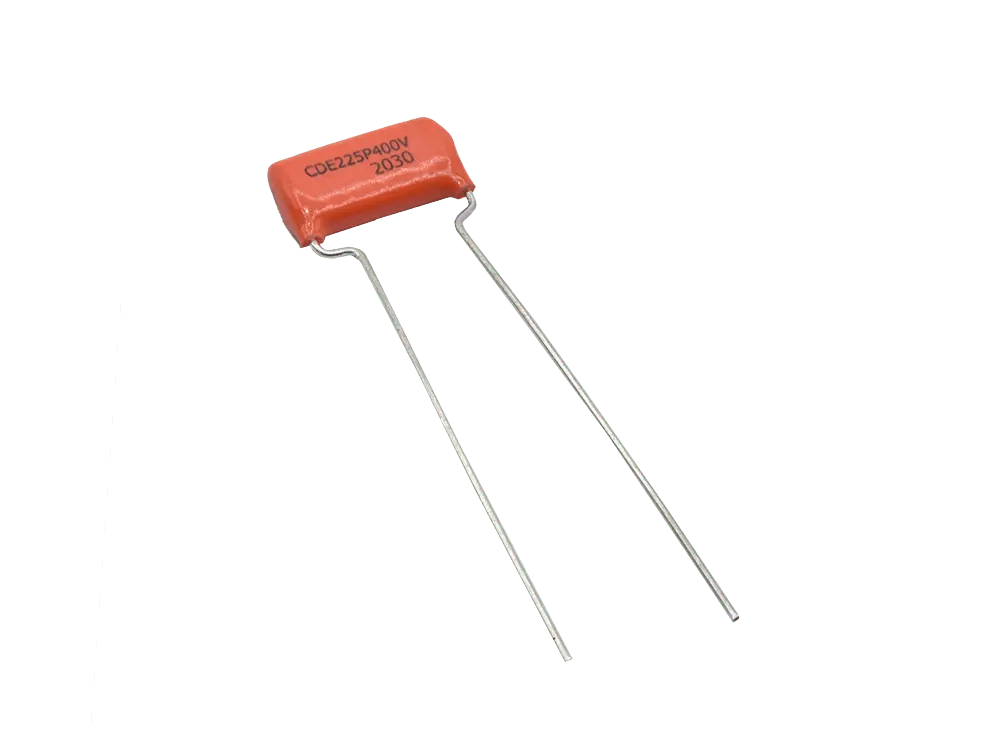

Orange Drop 225P Series 0,022 µF @ 400 V

Description

Vishay ORANGE DROP® 225P

Type: Polyester Film Capacitors
Voltage Rating: 400 V
Tolerance: - 10 % / +10 %
Operating Temperature Range: - 55°C / + 85 °C
Termination Style: radial

Documents

Orange Drops 225P Serie Datasheet (271.02 KB)

Customer reviews

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Unfortunately there are no reviews yet. Be the first who rates this product.
