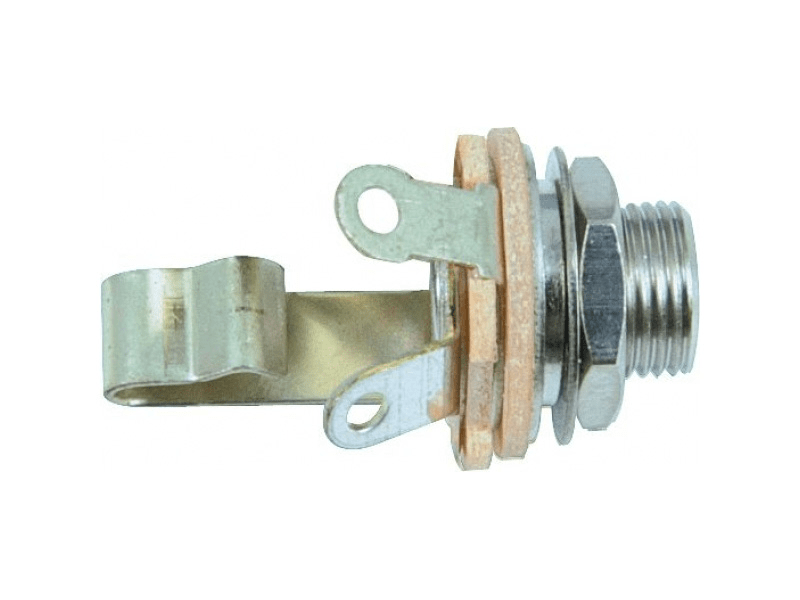

Switchcraft 11, 6,3 mm jack, mono

• Shoulder Washer for mounting Switchcraft jacks isolated from the chassis
• needs also article sc-s1028

• Flat washer for mounting Switchcraft jacks isolated from the chassis
• needs also article sc-s1029

• Powertransformer for Vibrolux, Vibrolux Reverb, Tremolux
• Fender Part Number: 125P26A, 022723, 036483
• 291CEX transformer uses high grade 29M6 magnetic steel laminations for reduced losses, more surge output power, cooler operation & longer life.
• Pri: 240V 50 Hz
• Sec.1: 650 VCT @ 207mA
• Sec.2: 5 VCT @ 3 A
• Sec.3: 6.3 VCT @ 4 A

Files:

• Datasheet

• Capacitance: 22 µF ±20 %
• Withstand voltage: 500 Volts DC
• Dimensions: Ø21xL36 mm
• Connections: Ø0.80xL40 mm
• Temperature range: -40°C/-40°F...+85°C/+185°F
• Conductor material: Aluminum foil
• Winding technique: MLytic

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

• Size: 6.3 mm 1/4"
• Poles: 2-pole, mono
• Design: open, chassis-mount
• Connection type: solder connections
• Housing: metal
• Manufacturer: Rean (by Neutrik)

Files:

• Datasheet

• Size: 6.3 mm 1/4"
• Poles: 3-pole, stereo
• Design: open, chassis-mount
• Connection type: solder connections
• Housing: metal
• Manufacturer: Rean (by Neutrik)

Files:

• Datasheet

• Signal wire LiYDY 1 x 0,14 mm², shielded
• Diameter Outside: ca. 2,6 mm
• Voltage Rating max: 50 / 75 V AC / DC
• Capacity: ca. 260 pF / m
• Temperature range: -10 bis +70 C°
• Conductor resistance: 40 Ohm / km @ 20 C°
• Test voltage: > 1 kHz
• IEC 60228/ VDE 0295
• 2 meter

• Signal wire LiYDY 1 x 0,5 mm², shielded
• Diameter Outside: ca. 3,2 mm
• Voltage Rating max: 250 V
• Capacity: ca. 260 pF / m
• Temperature range: -10 bis +70 C°
• Conductor resistance: 40 Ohm / km @ 20 C°
• Test voltage: > 1 kHz
• IEC 60228/ VDE 0295
• Length: 1 m

• Metalfilm Resistor RN65D
• Very low noise (- 40 dB)
• Very low voltage coefficient (5 ppm/V)
• Military-Spezification
• Tolerance: 1 %
• Power Rating:: 0.5 W (1/2 W)
• Voltage Rating: 350 V
• Temperature Coefficient:: +/- 100 PPM / C
• Series: CMF (Military RN, RL)
• Operating Temperature Range: - 65 C to + 175 C
• Dimensions: 4.57 mm Dia. x 4.57 mm W x 14.27 mm L
• RoHS: NO

• Metalfilm Resistor RN65D
• Very low noise (- 40 dB)
• Very low voltage coefficient (5 ppm/V)
• Military-Spezification
• Tolerance: 1 %
• Power Rating:: 0.5 W (1/2 W)
• Voltage Rating: 350 V
• Temperature Coefficient:: +/- 100 PPM / C
• Series: CMF (Military RN, RL)
• Operating Temperature Range: - 65 C to + 175 C
• Dimensions: 4.57 mm Dia. x 4.57 mm W x 14.27 mm L
• RoHS: NO

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers
• Pack of 5

High-Power 5E3 transformer for the use of 6L6 tubes (or similar) with a 5E3

• Pri.: 0 - 230 - 240 V (50Hz)
• Sec.1: 320 - 0 - 320 V @ 300 mA DC
• Sec.2: 3,15 - 0 - 3,15 @ 5A
• Sec.3: 0 - 5V @ 3A
• Made in Europe

• Datasheet
