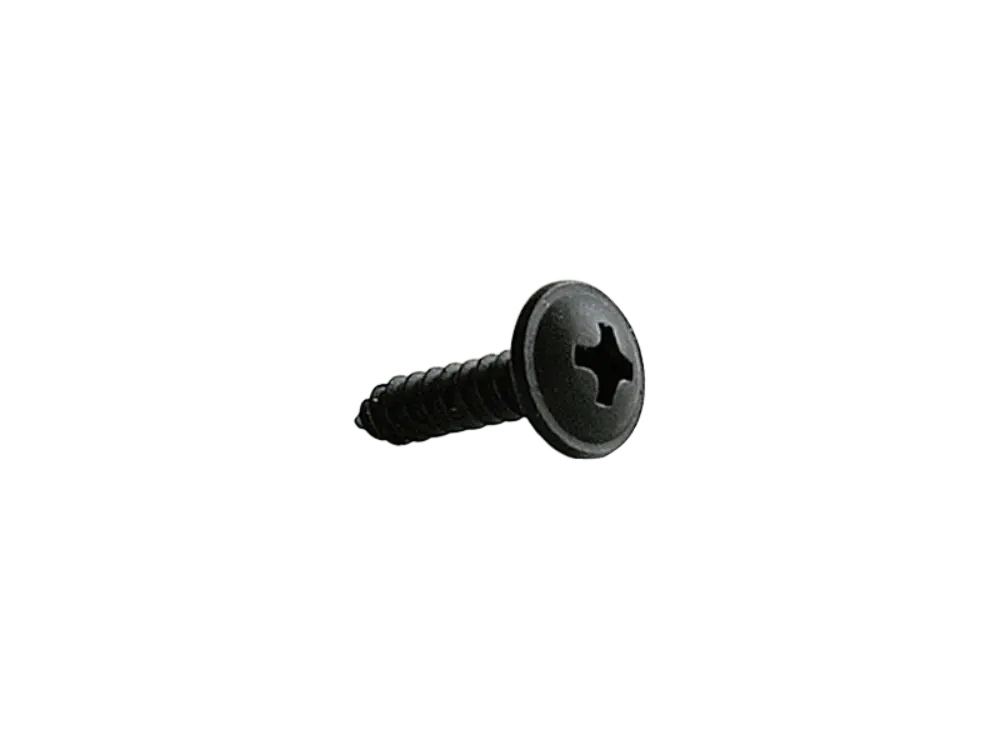

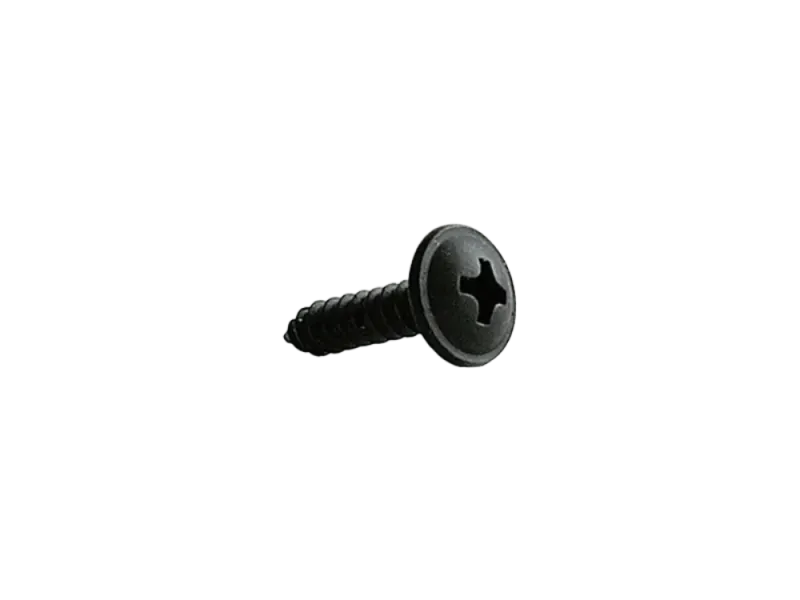

Self tap screw 4.2 X 25 mm black, 25 pcs.

Headroom, clarity, balanced response, power...
These terms have become synonymous with a vintage American design that is known and sought the world over.  WGS now pays tribute to this classic with our WGS12L. However like all of our designs, we didn't set out to make a clone.  With this model we paid extra special attention to the details, producing a speaker that delivers that same even response without sounding sterile and lifeless.  Boasting a cast frame, 2.5" voice coil and a 200 watt rating, and clocking in at 18 pounds, this beast is loaded for bear.  As a welcome addition to the WGS fleet, this speaker is definitely our battleship.

Note from the boss: "We compared both the EVM 12L and the WGS 12L in an 806 cabinet and it was almost impossible to tell them apart. The WGS 12L is a great alternative to the original and we recommend it without reservation as a perfect replacement for the EVM 12L."

Thiele-Small Parameters

• Resonant Frequency (Fs): 49.58 Hz
• DC Resistance (Re): 5.84 Ohm
• Coil Inductance (Le): 0.35 mH
• Mechanical Q (Qms): 7.41
• Electromagnetic Q (Qes): 0.25
• Total Q (Qts): 0.24
• Compliance Equiv. Vol. (Vas): 50.51 cu ft
• Mech. Compliance of Susp. (Cms): 0.27 mm/N
• BL Product (BL): 16.74 T-M
• Diaphragm Mass Inc. Airload (Mms): 38.77 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.67 db

Were raw force reigns...

the sound technicians are at work and do not have the time to handle cables with tender love and care. This robust cable is especially intended for speakers and satifies all special technical demands. The oxygen-free copper strand provides better sound and more durability.
All PVC-versions are easy to wind. Versions SP215 and SP225 are now available with highly flexible 0.15 mm copper stranding!
New are the versions in FRNC and E30 (IEC 228, IEC 332-/1, IEC 332-3 Cat C, IEC 60331, IEC 61034-1/2, IEC 60754-2)

THE ADVANTAGES:

• Flexible and easily windable
• Small diameter
• Great durability through the use of a special jacket mixture
• Very affordable

THE APPLICATION:

• All types of sound systems
• For fixed installation
• Wiring of HiFi-systems

TECHNICAL DATA:

• Construction (2LIY1.50mm²)Y
• Diameter 6,8 mm
• AWG 16
• No. of conductors 2 x 1,5 mm²
• Jacket material, insulation PVC
• Copper strand per conductor 84 x 0,15 mm
• Conductor insulation, diameter 2,62 mm
• Temperature range min. -30 °C
• Temperature range max. 70 °C
• Fire load per m 0,28 kWh
• Weight per 1 m 78 g
• Color black

ELECTRICAL DATA:

• Capac. cond./cond. per 1 m 150 pF
• Cond. resistance per 1 km < 13 Ohm
• Insulat. resistance per 1 km > 5 MOhm

Cabinet corner leather black, Set of 4
100 % real letaher, vegetable tanned
Caution: natural product ! The texture and thickness may vary.

Hint: put the corners into water for a few minuties before mounting. This makes them soft and elastic and than they will fit better.
The corners on the chassis should be well rounded too in order to achieve best results.

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (ah4023b)
• Powder Coated black
• Internal radius: 12 mm
• 16 x Screws, flat head, black

PVC piping for baffles and front panels

• Clear with metal Tinsel
• Marshall style
• Size 3 x 8 mm
• 4 m piece

• RCA Phono socket gold plated with Teflon insulation
• 1 x black
• 1 x red

• Size: 6.3 mm 1/4"
• Poles: 2-pole, mono
• Design: straight
• Connection type: solder terminals
• Housing: metal, large
• Color: black
• Cable outlet: max 9 mm

Files:

• Datasheet

• Size: 6.3 mm 1/4"
• Poles: 2-pole, mono
• Design: straight
• Connection type: solder terminals
• Housing: metal, large
• Color: black
• Cable outlet: max 9 mm

Files:

• Datasheet

PVC piping thin, without lip

• Ø 2.5 mm
• 2 m piece

• Mesh, black
• Size: 660 x 150 mm
• Meshsize: 12 x 6 x 1 x 0,5 mm
• Net Weight: ca. 150 g
