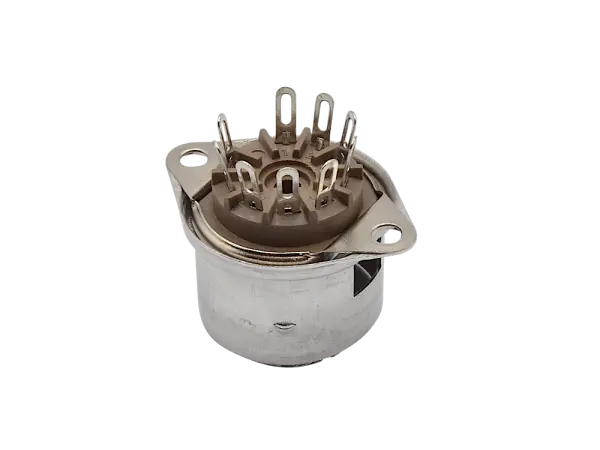

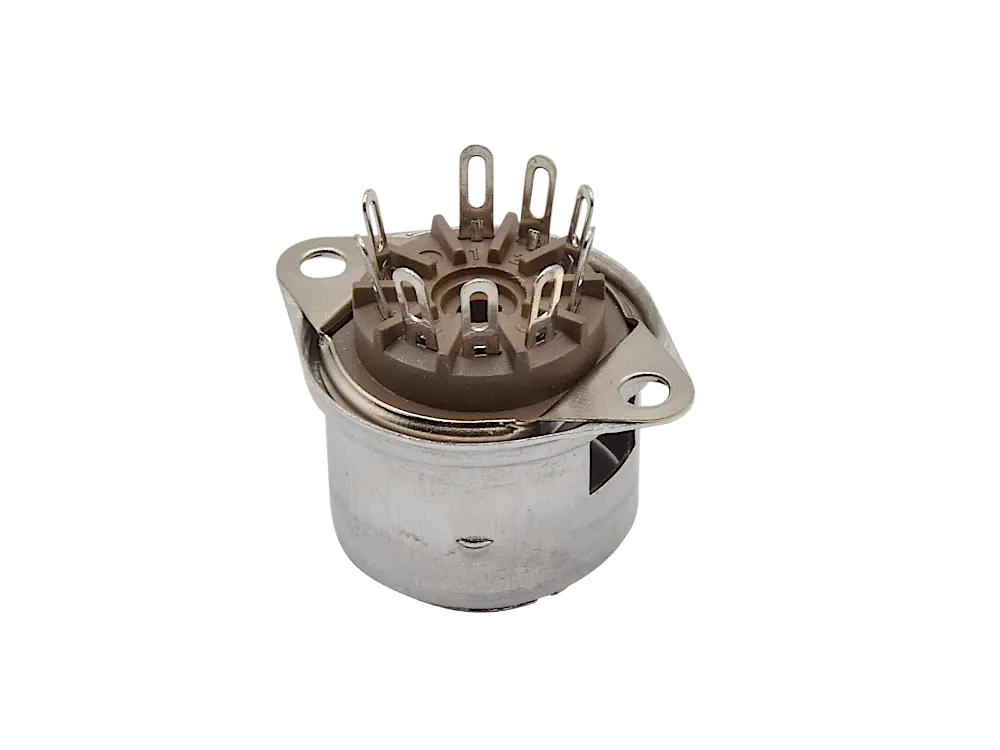

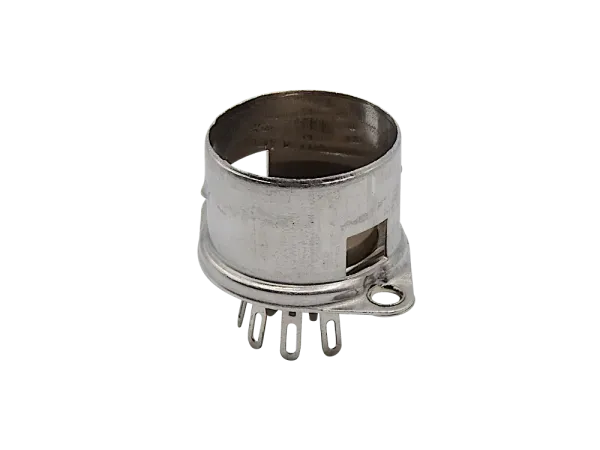

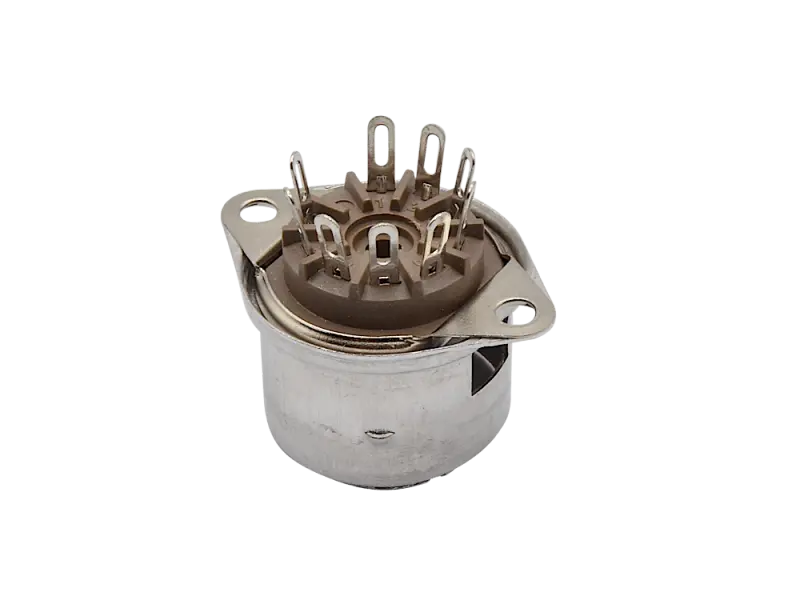

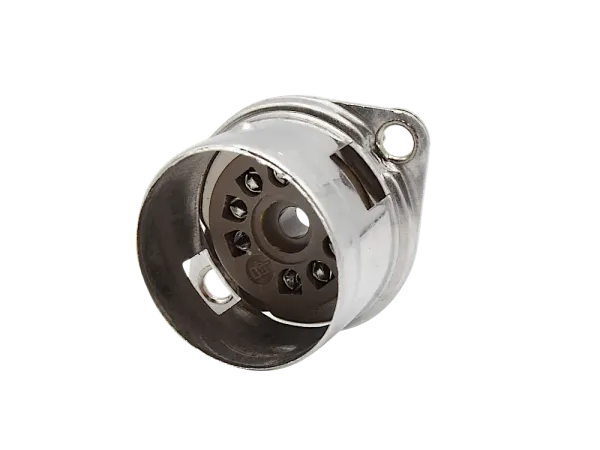

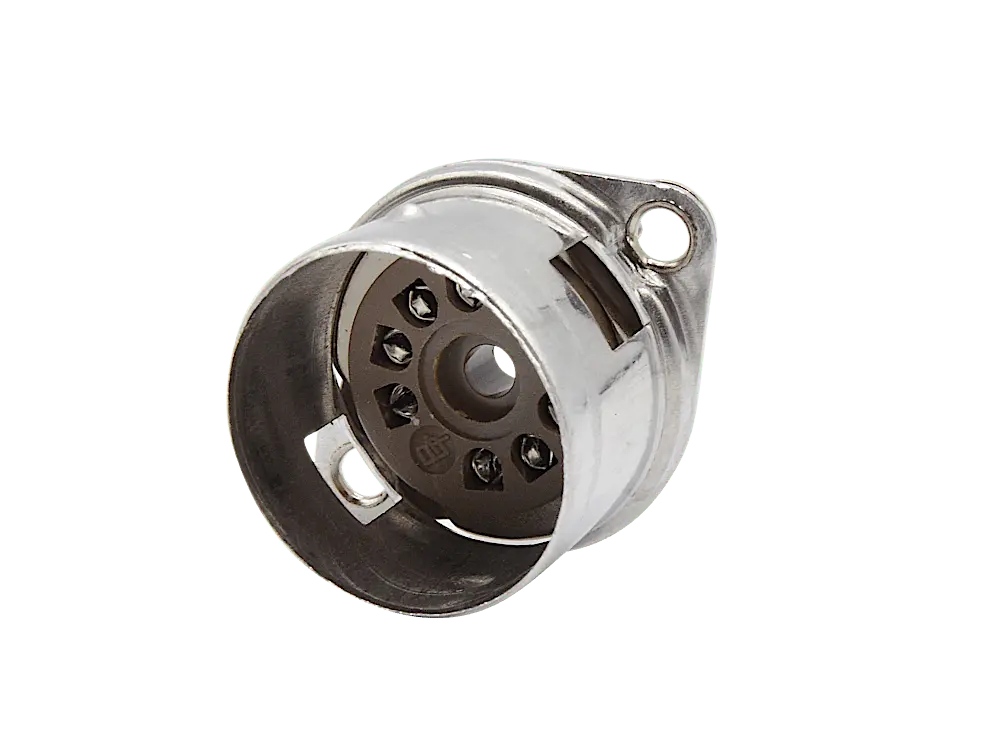

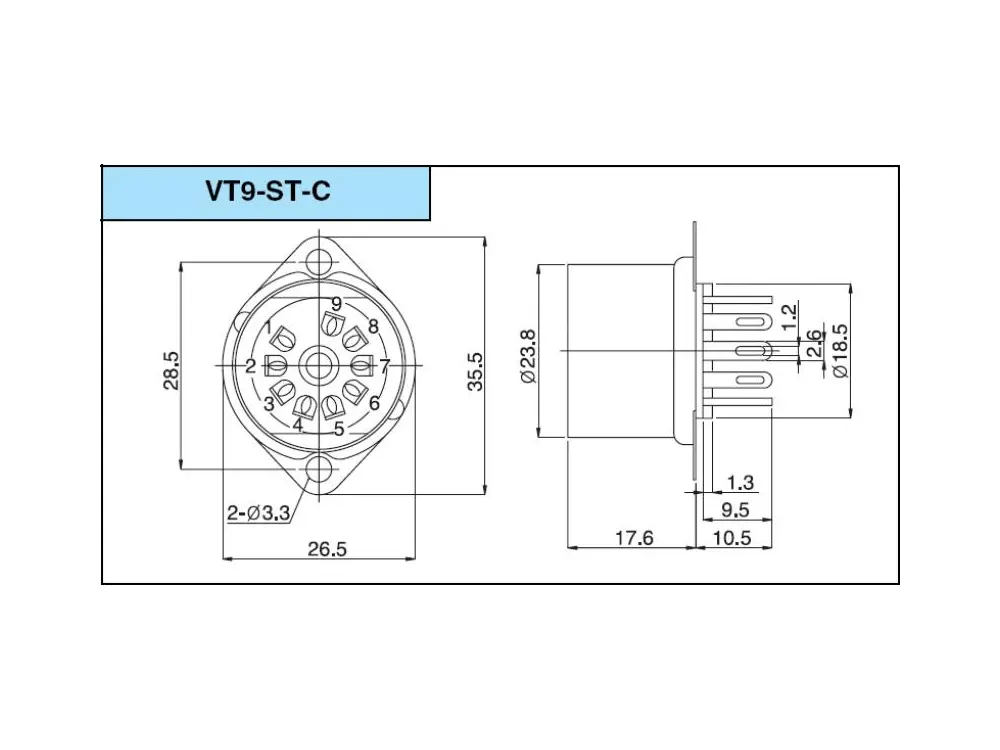

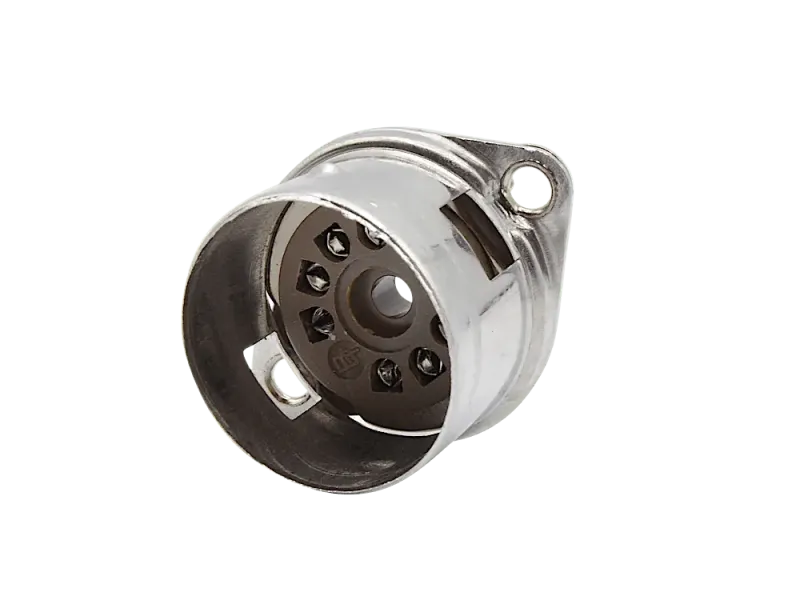

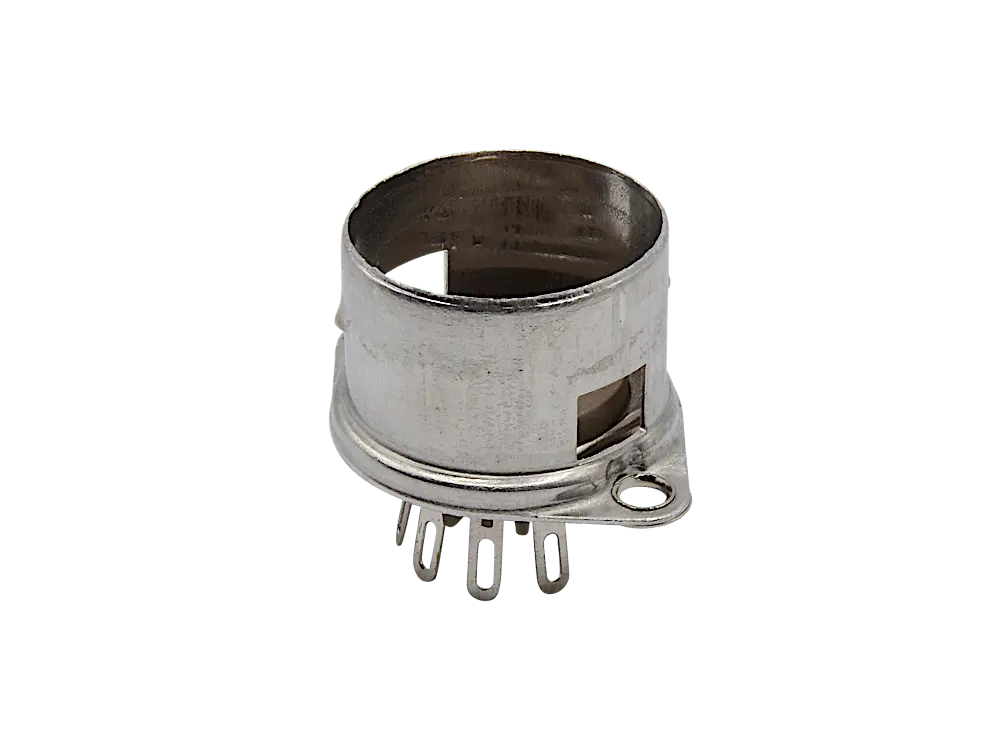

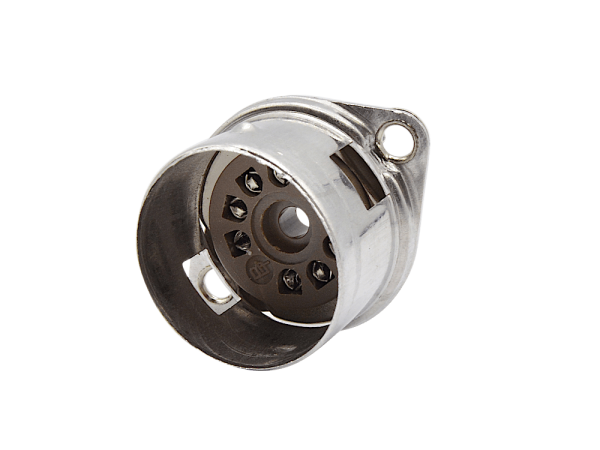

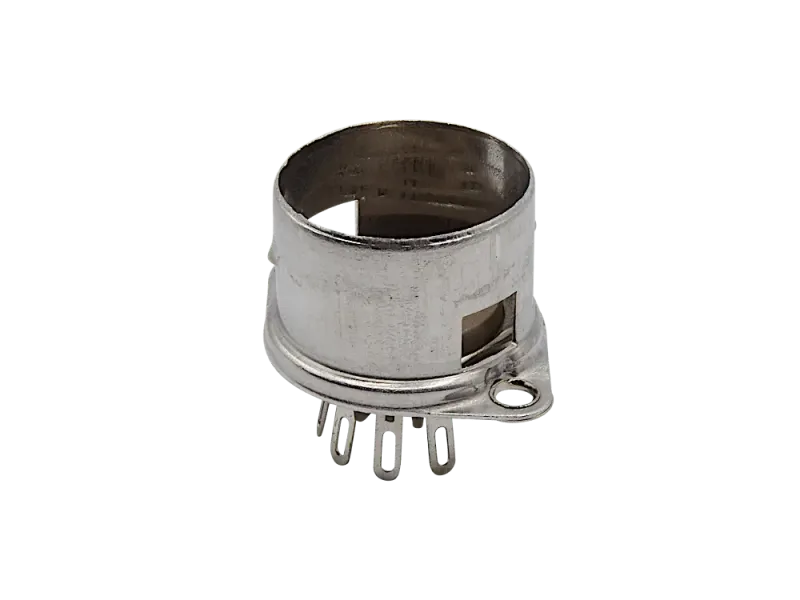

Socket Noval Belton, VT9-ST-C Chassis

Tube-Shield for Belton socket VT9-ST-C

• Color: silver
• Length: 50 mm
• Including Base and Shield

Tube-Shield for Belton socket VT9-ST-C

• Color: silver
• Length: 50 mm
• Including Base and Shield

• Primary: 0-120-230-240V @ 50/60 Hz
• Sec. 1: 600 V C.T. @ 100 mA
• Sec. 2: 6,3 V C.T. @ 3,2 A
• Sec. 3: 0V / 5V (@2,5 A / 6,3V @1,8A)
• Made with high quality 29M6 magnetic steel laminations.
• Made in Europe.
• Marshall 18 Watt Style

Files:

• Datasheet

Anti-Kink Bushing, black
Material: soft PVC
Chassis-Cutout: 11,5 x 9 mm
Diamter: 7 mm

• Type: Film capacitor
• Dielectric: polypropylene film
• Coating: plastic foil, metalized on both sides
• Capacitance: 0,015 µF
• Voltage Rating: 400 VDC / 250 VAC
• Tolerance: ±10 %
• IEC climate category: 55/100/56
• Operating Temperature Range: - 55°C / + 100 °C
• Dimensions: 4 x 9 x 13 mm
• Termination Style: radial
• Grid: 10

Metallized Polypropylene capacitor

• Voltage Rating: 630 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 40°C / + 85°C
• radial
• self-healing
• non inductive

• Type: Metalized Polyester Film Capacitors
• Voltage Rating: 400 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial

Tube Shield Noval

• for noval sockets
• Color: blue
• High: 55 mm
• Including Base and Shield

Solid copper wire, tinned, with vintage cotton fabric insulation

• Cross-Section: AWG #22 / 0,32 mm²
• Outer Diameter: 0,64 mm
• Packing: 5 m

Tube-Town 12AX7 / ECC83 Preamp-Tube

The TT12AX7 impresses with its fine and detailed reproduction of the highs, which is maintained even at high amplification levels. Due to a higher H3 part, the TT12AX7 sounds significantly cleaner than many other 12AX7/ECC83 tubes, which makes the bass range appear much tighter. We therefore especially recommend this tube for styles such as clean, crunch, and metal, where high amplification and clear transparency are required.

Electrical Characteristics

• Heater voltage (Uf): 6.3V or 12.6V
• Heater current (If): 300mA at 6.3V, 150mA at 12.6V
• Anode voltage (Ua): Maximum 300V
• Grid voltages (Ug1): -2V (typical)
• Grid voltages: -50V to 0V
• Anode current (Ia): 1.2mA (typical)
• Anode power dissipation: Maximum 1W per triode
• Anode resistance (ra): 62.5kΩ
• Amplification factor (μ): 100
• Transconductance (S): 1.6mA/V
• Input capacitance (Cin): 1.6pF
• Output capacitance (Cout): 1.6pF

Mechanical Characteristics

• Socket: B9A (Noval)
• Number of pins: 9

Pin Configuration

• 1 Anode (Triode 1)
• 2 Grid (Triode 1)
• 3 Cathode (Triode 1)
• 4 Heater (f)
• 5 Heater (f)
• 6 Anode (Triode 2)
• 7 Grid (Triode 2)
• 8 Cathode (Triode 2)
• 9 Center Heater (f)

Application Notes

• Heater operation: The tube can be operated with 6.3V or 12.6V, depending on the circuit design.
• Grid resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable functionality.
• Coupling capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high-frequency interference.

• Soft Recovery Ultrafast Rectifier
• Maximum repetitive peak reverse voltage: 1000V
• Maximum average forward rectified current: 3,0 A

Files:

• Datasheet

• Electrolytic capacitors, insulated aluminum can
• Capacitance: 22 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 6 mm x 10 mm
• Termination Style: axial
• Mallory Vishay

Images are for reference only. See Product Specifications
