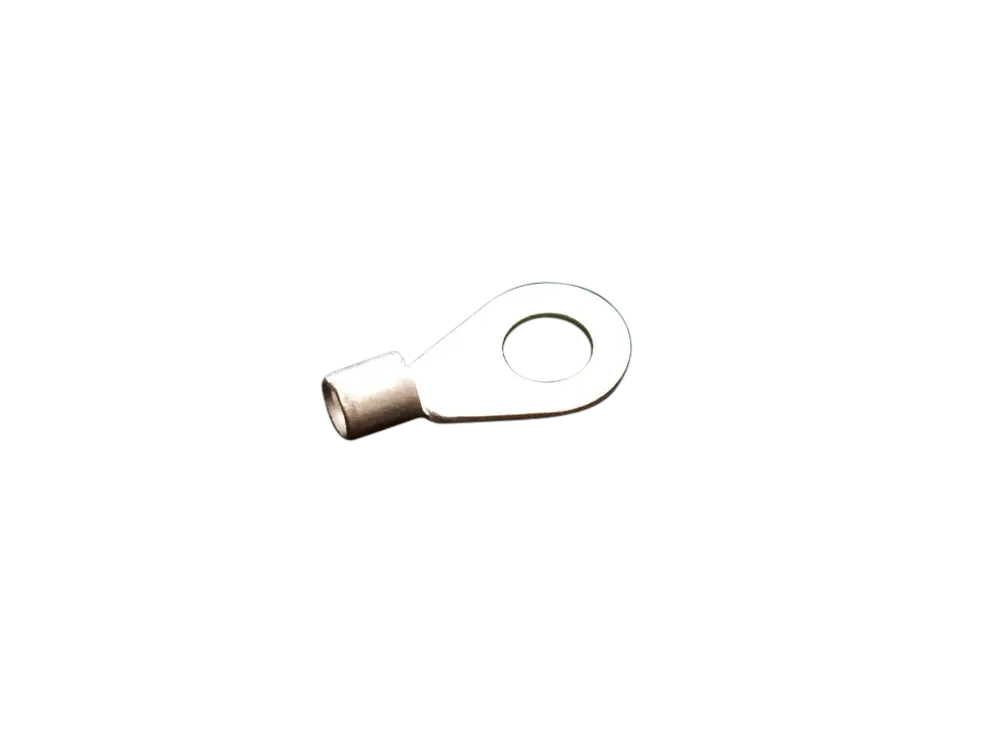

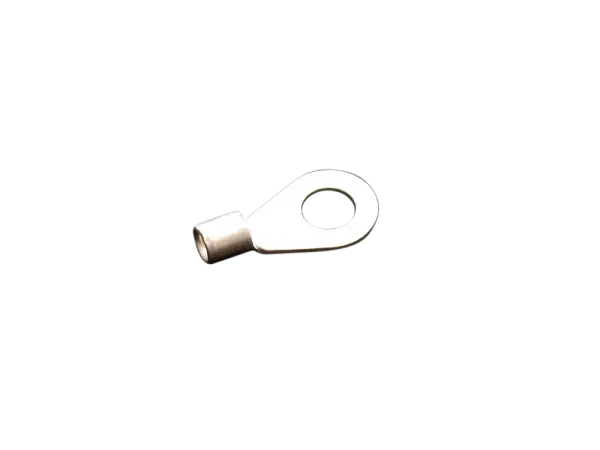

Ring Tongue Cable lugs 0,5 - 1 mm²

• Size (Marshall Small Size):
  • Width: 430 mm
  • Depth: 170 mm
  • Height: 65 mm
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)
• With cutout for 2 power-jack
• Made in Germany

• Datasheet Drawing Version 2020 (PDF)
• Tamplate for Faceplate

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.

• Type: Noval Socket Belton VT9-ST-C
• Version: Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84,
•   EZ81, EL844 etc.

• Color: silver
• Length: 40 mm
• Including Base and Shield

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: EL34, E34L, 6L6, 6V6, 6550, KT66/77/88 etc.

Socket Clamp / Tube Retainer fits for many octal base tubes.

• up to T 70 °C
• with one fuse holders 5.0 x 20 mm
• Housing: polyamide
• UL 94 V-0, black
• for panel mounting
• Double-pole + protective ground 10 A/250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering
• Design to IEC/EN 60320-1
• fuse holder to IEC/EN 60127-6
• Certifications: ENEC, Semko, UL, CSA

• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size 30,5 x 16 mm
• Mounting: Set-Screw

• Type: Chickenhead
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 32 x 13,7 mm
• Mounting: Set-Screw
