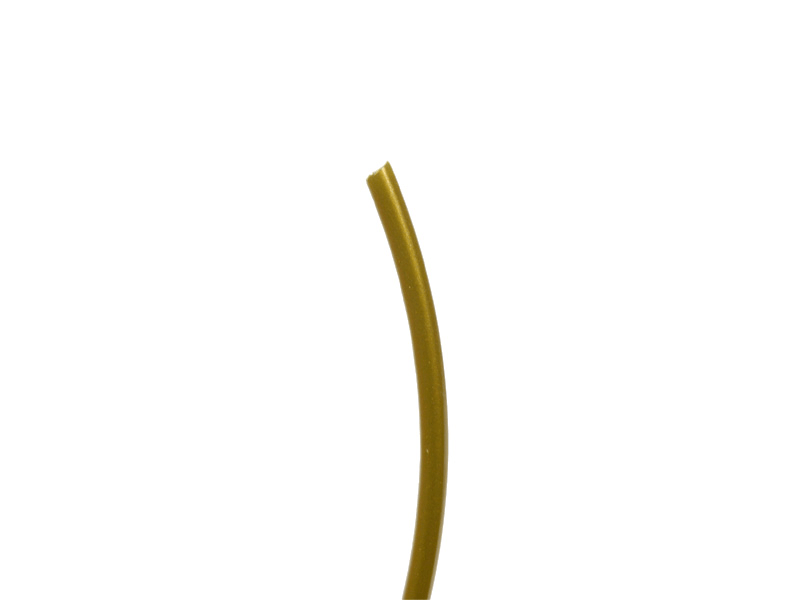

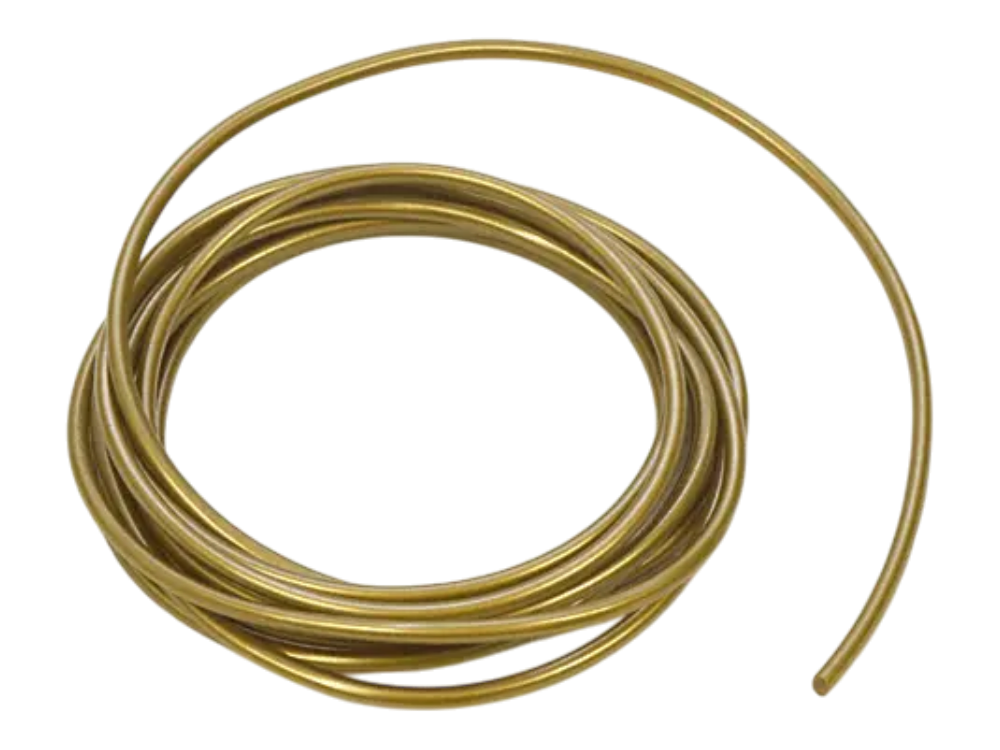

Trim Strip gold - Pack of 2 m

• Turrets
• for 2 mm Boards
• nickel-plated
• pack of 100 pcs

• Material: Steel
• Strength class: 4.8
• Surface: Zinc-plated
• DIN: 7985
• Price: pack with 50 pcs.

• Material: Steel
• Strength class: 4.8
• Surface: Zinc-plated
• DIN: 7985
• Price: pack with 50 pcs.

• Color: black
• Size:
  • A: 10 mm
  • B: 12 mm
  • D: 17,5 mm
  • H: 6,8 mm
  • h: 2 mm
• Material: soft PVC,UL 94 V-2
• Operating temperatures: –30 to +60 °C

• TT-Chassis Aluminium - Typ 003
• Size : 590 x 190 x 64 mm
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)
• Made in Germany
• Version 2019 Update: Reinforced corners

Files:

• Datasheet
• Datasheet (old)

Relays, type Finder Dual-In-Line-Relais 2,0 A
for low breaking capacity

• Compact dimensions: 20.3 x 10.1 x 11.4 mm, grid according to wiring diagram
• Function: 2 x changeover contacts
• Constant/inrush current: 3.0 A/2.0 A
• Rated/switching voltage: 125 VAC/250 VAC
• Breaking capacity AC 1/AC 15 (230 V): 125 VA/25 VA
• Switching current DC 1:    2.0 A/30 V, 0.3 A/110 V
• Minimum switching load: 10 mW (0.1 V/1.0 mA)
• Contact material: AgNi+Au (5.0 µm)
• Useful mechanical life DC: 10 x 10 exp6 switching cycles
• Electrical life AC 1: 100 x 10 exp3 switching cycles
• Insulation coordination EN 61810-5: 1.2 kV/2
• Electric strength coil/contact (1.2/50 µs): 1.5 kV
• Response/release time: 6.0 ms/2.0 ms
• Ambient temperature: –40 to +85 °C
• Relay protection class: RT III
• Certifications: CSA, UL, GOST

• Datasheet

• Wide body and extremely durable contacts
• Mates with all stereo A-gauge plugs acc. EIA RS-453 standard

Files:

• Datasheet

• Pri: 1700 Ohm / CT
• Sec: 4-8-16 Ohm
• Power: 100 Watt

Made with Grain Oriented Electrical Steel Cores for better magnetic permeability, which leads to

• more efficiency
• more linearity
• less distortion
• and a higher performance

Files:

• Datasheet
