Toggle Switch DPDT - 2 position ON-ON, 10 A

Product No.:
xsw89
<font color=green><b>In stock for immediate delivery.</b></font> </br>Delivery time depends on the destination country* In stock for immediate delivery.
Delivery time depends on the destination country*
RoHs:
conform
Weight:
0.02 kg per piece
5,75 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description
SCI R13-29B High Current DPDT On-On Toggle Switch

The SCI R13-29B is a high current DPDT toggle switch (double pole double throw), designed for use in high current applications.

Specifications
  • Type: Toggle switch with metal lever
  • Design: 2-Pole ON-ON switch
  • Mounting Ø: 12.2 mm
  • Switching capacity: 15A@125VAC / 10A@250VAC

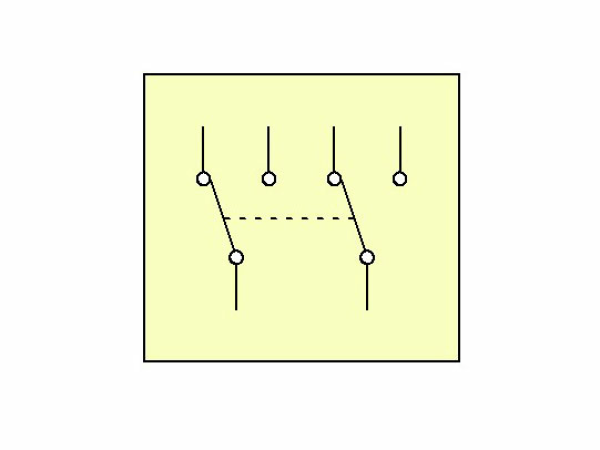

  • Switch type: DPDT (double pole double throw)
Information about the manufacturer
Herstellerinformationen | Manufacturer Information

Tube-Town GmbH
Rumbergring 37
D-66969 Lemberg
eMail: info@tube-town.de
Customer reviews

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Unfortunately there are no review yet. Be the first who rate this product.
