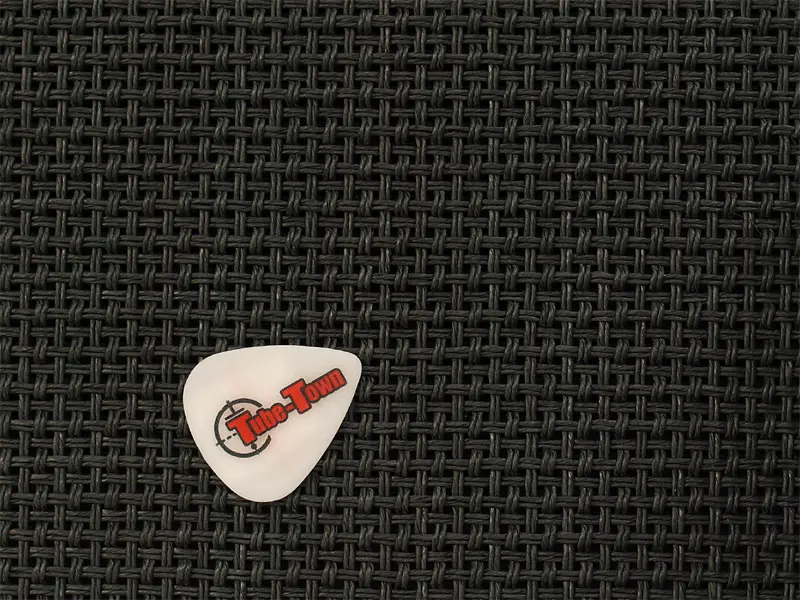

Grillcloth Tube-Town Black Weave - 80 x 100 cm

• 4 x Screw M5x20mm
• 4 x Washer M5
• 4 x T-Nut M5

• Insulation: Silicon
• Operation Voltage: 300 V AC / 500 V DC
• Test Voltage: 2000 V
• Operating temperatures:  –50 bis +180 °C
• Packing: 5 m
• Cross-Section: 1,5 mm²
• Outer Diameter: 2,8 mm
• Stranded wire structure: 30 x 0,25 mm tinned copper

• Insulation: Silicon
• Operation Voltage: 300 V AC / 500 V DC
• Test Voltage: 2000 V
• Operating temperatures:  –50 bis +180 °C
• Packing: 5 m
• Cross-Section: 1,5 mm²
• Outer Diameter: 2,8 mm
• Stranded wire structure: 30 x 0,25 mm tinned copper

Specification label. Self adhesive. 50 x 80 mm. Aluminium with satin black print. German text.

• Pri: 0-220-230-240 V (blue-black-orange-yellow)
• Sec 1:  250 V / 0,1 A (red)
• Sec 2: 6,3 V / 1,5 A (blue)
• Sec 3: 12,6 V / 1 A (green)
• Size: d = 80 mm, h = 35 mm
• ta 40 EN 61558

4 tubes, matched as quad

Standard EL34 made by JJ with a smooth and dizzy sound.

Limiting Values:

• Ua0: 2000 V
• Ua: 800 V
• Wa(max): 25 W
• Ug20: 800 V
• Ug2: 450 V
• Wg2(max): 8 W
• Ik: 150 mA
• Uk/f: 100 V
• Rk/f: 20 kΩ

• Datasheet

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

• The 12AX7EH provides high gain with ultra low noise and detailed, musical tone that rivals the most desirable NOS types.

Files:

• Datasheet
