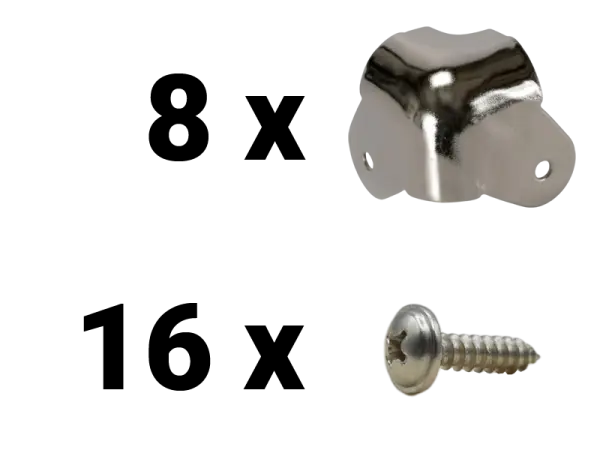

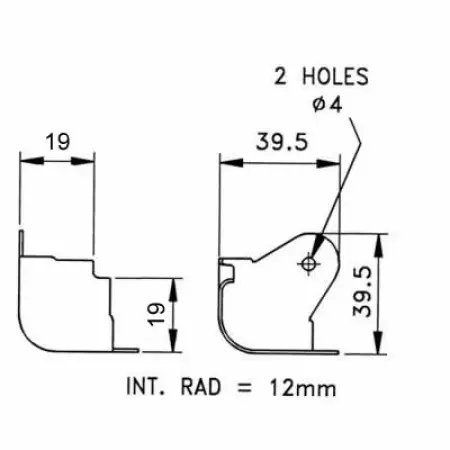

Set Corners w/ cutaway 2 leg, glossy, Fender Style - silver incl. Screws

The ideal speaker cabinet for the DIY guitarist!
All parts CNC milled and drilled from high quality birch plywood for easy assembly at home or as a base for your own creations.

Size:

• Width: 350 mm
• Height: 335 mm
• Depth: 225 mm
• Speaker cutout: 8"
• Material: 15 mm birch plywood housing, 12 mm birch plywood baffle

The kit includes all components to build the speaker box according to standard as per documentation, such as:

• Connection terminal, round
• Fixing screws for terminal
• Screws and drive-in nuts for speaker mounting
• Wood glue
• Wooden dowels

Not included

• Cable set
• Corner
• Rubber pads
• Handle
• Wood screws

Files:

• Building Instruction (PDF)

[content:3210136]

Specifications

• Size: ca. 660 x 570 x 280 mm
• Speaker cutout: d=360 mm
• Material:
  • Body: 18 mm Pine Plywood
  • Baffle: 12 mm Birch Plywood
• Tolex: -
• Grillcloth: -
• Hardware: -
• Back: Open-Back
• Weight: ca.12,3 kg
• Speaker: None

[content:3210142]
[content:3210137]
[content:3210136]

High Quality Speaker Cabs for the DIY
Specifications

• Size: ca. 510 x 420 x 240 mm
• 1 x 12"
• Material:
  • Body: 18 mm Pine Plywood
  • Baffle: 12 mm Birch Plywood
• Tolex: -
• Grillcloth: -
• Hardware: -
• Back: Open-Back
• Weight: ca.  7,5 kg
• Speaker: None

[content:3210142]
[content:3210137]
[content:3210136]

High Quality Speaker Cabs for the DIY
Specifications

• Size: ca. 590 x 400 x 300 mm
• 1 x 12"
• Material:
  • Body: 15 mm Pine Plywood
  • Baffle: 12 mm Birch Plywood
• Tolex: -
• Grillcloth: -
• Hardware: -
• Back: Open-Back
• Weight: ca. 9,8 kg
• Speaker: None

[content:3210142]
[content:3210137]
[content:3210136]

The ideal speaker cabinet for the DIY guitarist!
All parts CNC milled and drilled from high quality birch plywood for easy assembly at home or as a base for your own creations.

Size based on the very popular 112AM Lemberg:

• Width: 500 mm
• Height: 410 mm
• Depth: 240 mm
• Speaker cutout: 12"
• Material: 15 mm birch plywood housing, 12 mm birch plywood baffle

The kit includes all components to build the speaker box according to standard as per documentation, such as:

• Connection terminal, round
• Fixing screws for terminal
• Screws and drive-in nuts for speaker mounting
• Wood glue
• Wooden dowels

Not included

• Cable set
• Corner
• Rubber pads
• Handle
• Wood screws

Files:

• Building Instruction (PDF)

[content:3210136]

Empty headshell for TT-Chassis #073 as well as chassis with the same size (Fender Princetone). Surface untreated. Delivery without hardware. Suitable accessories see link list below.

Specifications

• Size (W x H x D, external): 505 x 242 x 220 mm
• Weight: approx. 3 kg
• Wood: 18 mm Wise Spruce
• Rugged construction, Dovetail joints
• Made in Germany

[content:3210136]

High Power Rotary Switch

• Can be used as Voltage or Impedance selector
• 1 pole / 3 position
• 3 A @ 250 VAC
• 6 A @ 125 VAC
• Solder lugs
• Size: 28 mm x 39,5 mm
• Frontpanel drill: 10,5 mm
• Shaft Diameter 6 mm, D-Shaft

• Type:Toggle Switch
• Version:SPST, ON-OFF
• Rating: 3A / 250V, 6A / 125V
• Insulation resistance: 100MΩ min.
• Dielectric strength: 1000V min.
• Operating Life: 25.000 cycles
• Drill Ø: 12 mm
• Termination Style: solder-lugs

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg - Dumble Style, silver
• Steel nickel plated
• Internal radius: 11 mm
• 16 x Screws with extra flat head, silver

Noval Socket - Pack of 5

• Ceramic
• Chassis mount with shield
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7 etc.



• Size (W x H): ca. 100 x 75 cm (only available in this size)
• Material: 100 % Polyamid
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

Noval Socket Belton VTB9-PT

• Version: High quality Micalex socket
• Glassfiber filled PPS black body
• Termination Style: print / pcb mount
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.

Power Jack, Chassis mount

• Schurter 6162.0046
• Ratings IEC: 10 A / 250 VAC; 50 Hz
• Ratings UL/CSA: 15 A / 250 VAC; 60 Hz
• Dielectric Strength:
  • > 3 kVAC between L-N
  • > 1.5 kVAC between L/N-PE (1 min/50 Hz)
• Allowable Operation Temp.:-25 °C to 70 °C
• Degree of Protection: from front side IP 20 acc. to IEC 60529
• Protection Class:Suitable for appliances with protection class 1 acc. to IEC 61140
• Material: Housing PA6, black, UL 94V-0

Case Handle Fender-Style, imitation leather

• Length: ca. 280 mm
• Color: black
• Mounting hardware: Screws and t-nuts included

• Solder lugs
• Power Rating: 2A@250VAC
• Contact Resistance: <10mΩ
• Insulation Resistance: 1000MΩ Minimum
• Dielectric Strength: 1000V RMS @ Sea Level
• Operating Temperature: -40°C ~ +85°C
• Electrical Life: 40,000 Cycles
• RoHS & Lead-free

Panel Mount Potentiometer - Pack of 5

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm
