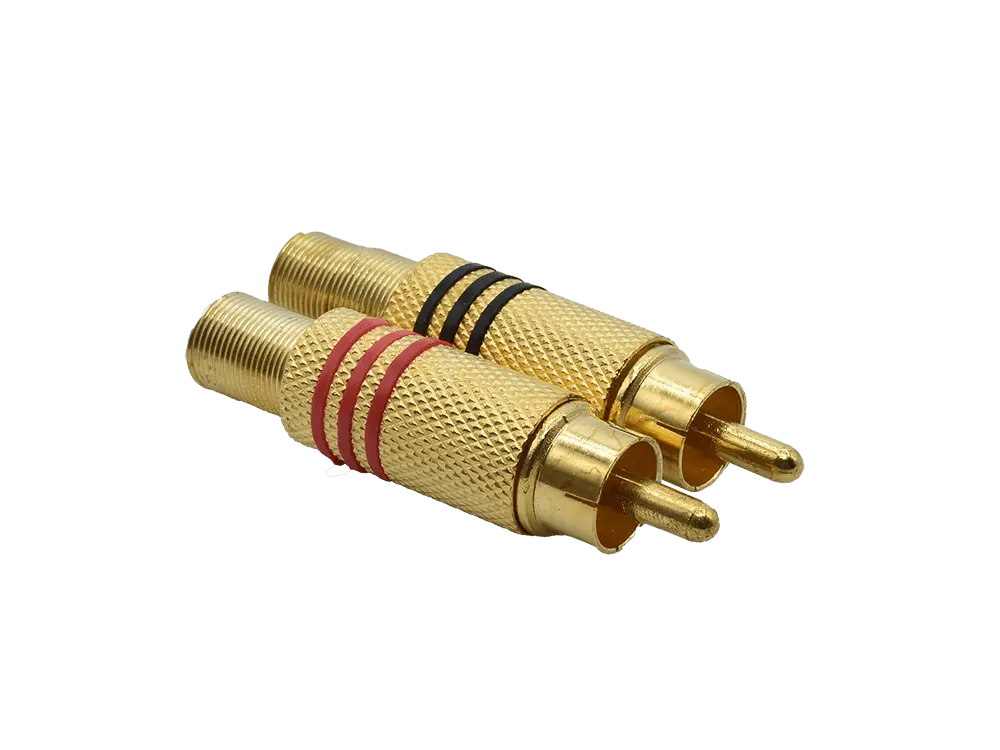

RCA phono plug, red + black, pair

• Spot welded heavy duty construction chassis.
• Natural finish as shown above - protected through manufacturing and shipping with a plastic skin cover to ensure a high quality finish.
• Optional bottom plates are punched with 4 holes (Chassis requires drilling to install optional bottom plates).
• Hardware not provided, please order separately
• Size: 432 x 254 x 76 mm

Files:

• Datasheet

• Color: black
• Size:
  • A: 8 mm
  • B: 11 mm
  • D: 15,9 mm
  • H: 6,8 mm
  • h: 1,6 mm
• Material: soft PVC,UL 94 V-2
• Operating temperatures: –30 to +60 °C

• Assembly Ø: 6,2 mm
• Rating: 2A / 250VAC, 5A / 125VAC
• Termination Style: solder-lugs

• Type: Alpha Rotary Switch
• Version: 4 pole / 3 positions, non-Shorting
• Shaft lenght: 19 mm
• Rating: 0.3 A / 125 V/AC
• Contact resistance: max. 50 mΩ
• Insulation resistance: min. 100 mΩ / 500 V/DC
• Termination Style: solder lugs
• Shaft: 6,3 mm, D-Shaft
• Drill Ø: 8,9 mm

The rosette is versatile and ideal for construction and assembly projects. Thanks to the high-quality brass material and nickel-plated surface, it is well protected against corrosion and offers a long lifespan.

• Inner diameter (d1): 6.4 mm
• Outer diameter (d2): 20 mm
• Height (h1): 4 mm
• Standards: DIN 17670
• Material: Brass
• Surface: Nickel-plated
• Pack of 10

The TRICONE® MKII is a flexible cable for guitar, keyboard, the live musician, studio keyboarder, and the home recorder. Based on the sound wire diameter of 0.22 mm² and the fine individual strands of 0.10 mm, it is protected against cable breaks and convinces with high bending cycles. It is very robust, easy to wind, and very reasonably priced.

When working with it care should be taken when removing the concutive shielding (black PVC-hose) from the insulation, so that it does not touch the inner conductor.

TRICONE® is a protected and registered trademark of SOMMER CABLE GmbH.

THE ADVANTAGES:

• Very robust due to the large conductor diameter and fine individual stranding
• Good electrical values due to the insulation made of skin PE
• 100 % Protected due to double shielding (copper spiral + conductive carbon shielding)
• High number of bending cycles

• Dependable cable for live application (guitar and keyboard)
• Reasonable line or patch cable for the home recorder

• Construction LI2Y(LS)DY1x0.22mm²
• Jacket, diameter PVC 5,9 mm
• AWG 24
• No. of inner conductors 1 x 0,22 mm²
• Copper strand per conductor 28 x 0,10 mm
• Conductor insulation skin PE 1,8 mm
• Shielding copper spiral shielding + semiconductor
• Shielding factor 100 %
• Temperature range min. -20 °C
• Temperature range max. 70 °C
• Fire load per m 0,26 kWh
• Color: black
• Weight per 1 m 42 g

• Capac. cond./shield. per 1 m < 85 pF
• Cond. resistance per 1 km < 90 Ohm
• Insulation resist. per 1 km > 1 GOhm

Were raw force reigns...

the sound technicians are at work and do not have the time to handle cables with tender love and care. This robust cable is especially intended for speakers and satifies all special technical demands. The oxygen-free copper strand provides better sound and more durability.
All PVC-versions are easy to wind. Versions SP215 and SP225 are now available with highly flexible 0.15 mm copper stranding!
New are the versions in FRNC and E30 (IEC 228, IEC 332-/1, IEC 332-3 Cat C, IEC 60331, IEC 61034-1/2, IEC 60754-2)

THE ADVANTAGES:

• Flexible and easily windable
• Small diameter
• Great durability through the use of a special jacket mixture
• Very affordable

THE APPLICATION:

• All types of sound systems
• For fixed installation
• Wiring of HiFi-systems

• Construction (2LIY1.50mm²)Y
• Diameter 6,8 mm
• AWG 16
• No. of conductors 2 x 1,5 mm²
• Jacket material, insulation PVC
• Copper strand per conductor 84 x 0,15 mm
• Conductor insulation, diameter 2,62 mm
• Temperature range min. -30 °C
• Temperature range max. 70 °C
• Fire load per m 0,28 kWh
• Weight per 1 m 78 g
• Color black

• Capac. cond./cond. per 1 m 150 pF
• Cond. resistance per 1 km < 13 Ohm
• Insulat. resistance per 1 km > 5 MOhm
