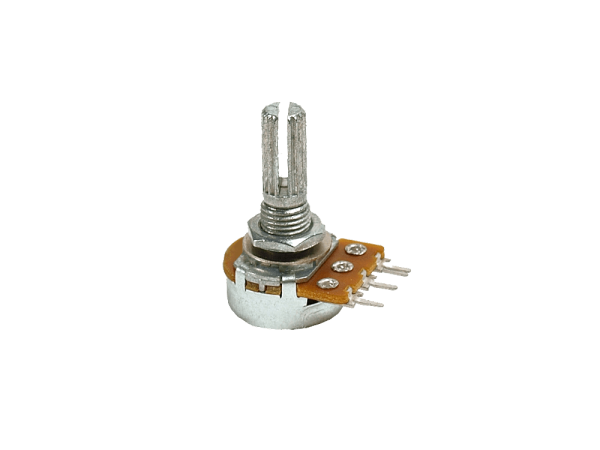

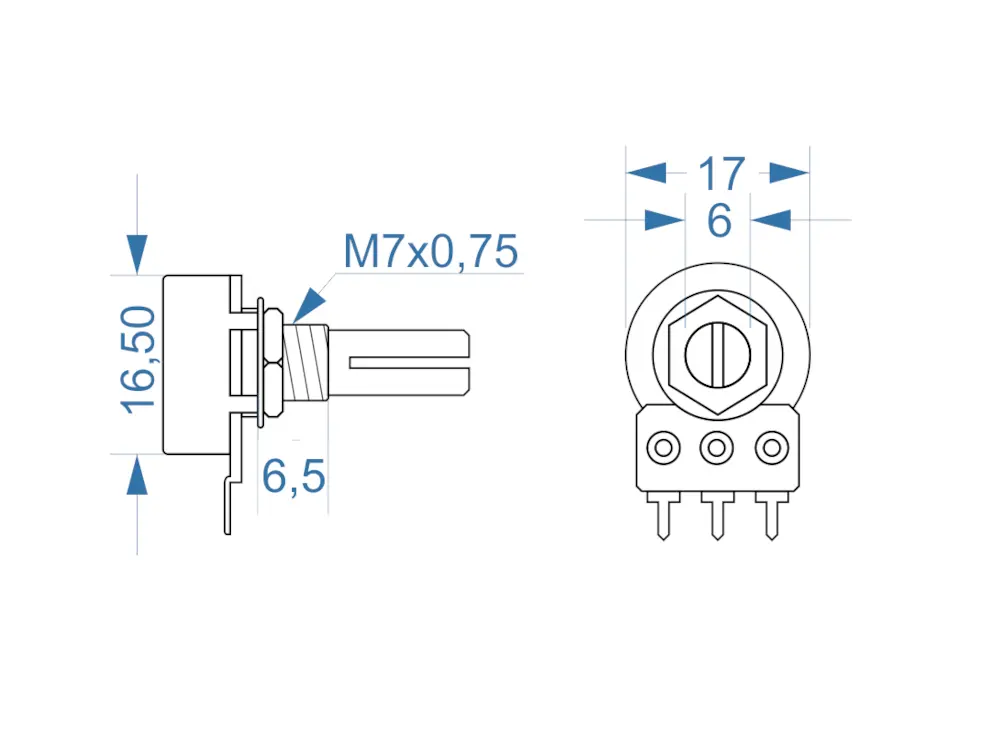

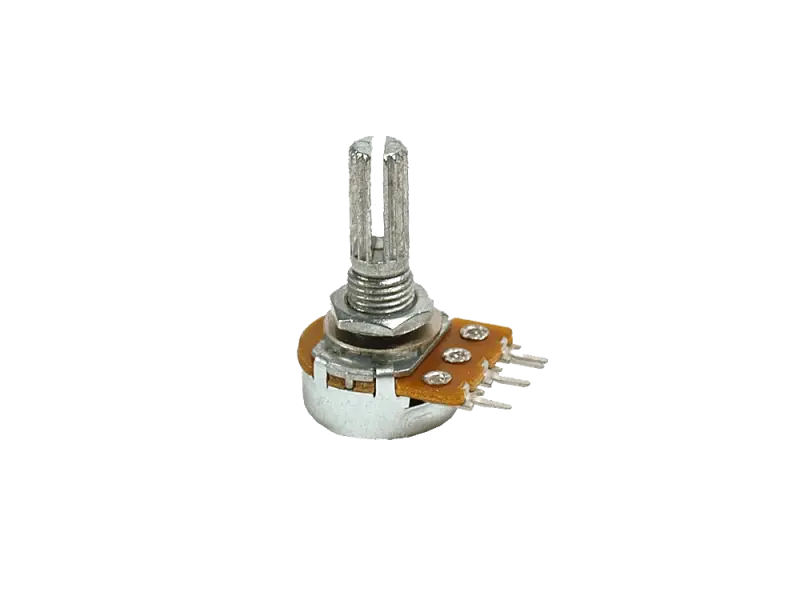

Potentiometer Alpha 16 PCB 220k log

MiL-C-17, type RG 187
heat resistant

• Insulation: PTFE, 1.6 mm D.
• Inner conductor: Staku stranded wire 7 x 0.10 mm, silver-plated
• Inner conductor diameter: 0.30 mm
• Outer conductor: silver-plated copper braid
• Outer insulation: PTFE. Outer diameter: 2.69 mm
• Wave impedance: 75 ±3 ohm
• Operating temperatures: –55 to +200 °C
• Capacitance: approx. 63 pF/m.
• Operating voltage: max. 1000 V
• Attenuation (100 m) at 200 MHz: approx. 34.4 dB
• Outer insulation: white
• Length: 1 m

Active, serial FX-Loop for a subsequent installation in an existing tube amplifier
The FX-Loop works with  two LND150 in the send and in the return stage. The send and return level can be adjusted to their optimal value with two potentiometers. The Loop works with the present high voltage of the amplifier.
It has two inputs for low and high signal levels.

Input Levels:
InA: 30 - 60 Vpp, max. 65 Vpp
InB: 10 - 15 Vpp, max. 18 Vpp

The FX-Loop utilize POTENTIALLY FATAL HIGH VOLTAGES.
Seek help from a competent technician if you are in any way unfamiliar with high voltage circuits.
Use at your own risk.

Files:

• Documentation

• Size: 380 x 76 x 1,6 mm
• gray

• Type: Hex Nut
• Material: Steel
• Strength class: 8
• Surface: Zinc-plated
• DIN: 934
• ISO: 4032
• Price: Pack with 100 pcs.
• >

Small signs for universal labeling tasks.
The labels can be glued with superglue directly onto the chassis.

Text: Warning ! Risk of shock. Do not open.

Material: 1,5 mm Transply
Color: Black / White
Size: 50 x 22 mm

• #22 AWG 7/30 bare soft copper with a tinned overcoat
• celanese braid, overall cotton braid, waxed
• Packing: 5 m

• Size: M4
• Toothed bottom
• Material: spring steel
• Pack of 10

• Type: bipolar electrolytic capacitor, rough
• Capacitance: 22 µF
• Voltage Rating: 100 VDC / 35 VAC
• Dimensions:  Ø 12 mm x 30 mm
• Termination Style: axial
• Tolerance: 5%

Jupiter Condenser “Vintage” Tone
Based closely on the Yellow Molded Astron capacitor for a more authentic tone to the time period. Construction is Aluminum Foil with Polyester(Mylar) Film Dielectric with tinned copper leads.

• Type: Polyester/Aluminum Foil
• Voltage Rating: 600VDC - Tested at 1200VDC
•   at three stages of production)
• Tolerance: +/-10% typically much closer
• Operating temperature: -55C - 85C, derate 50% at 125C
• Leads: 20awg Tinned Copper
• Application: Guitar Amplifier, Guitar Tone Control

Made in USA of US materials

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial
