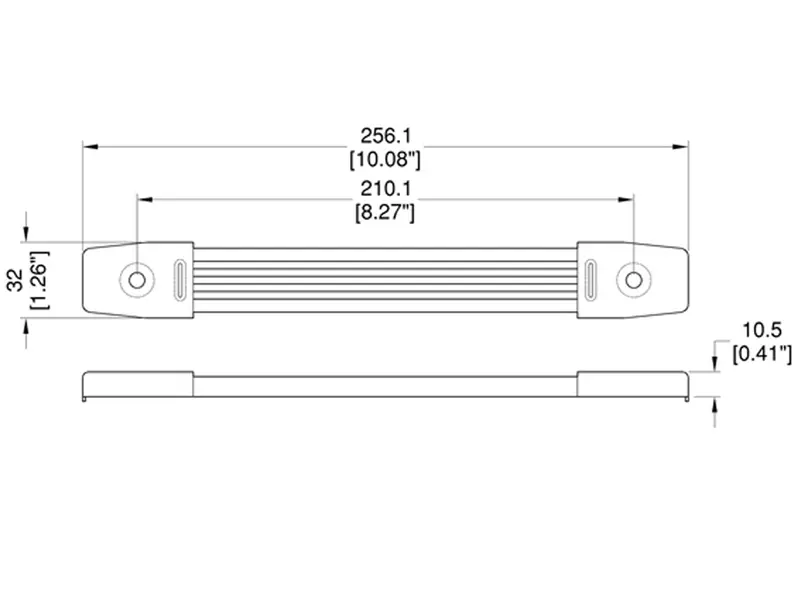

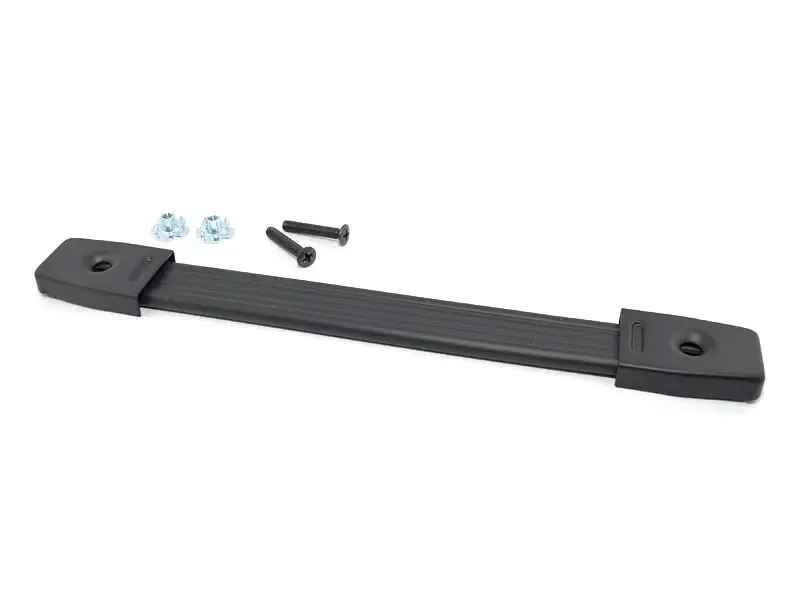

Strap Handle black w/ black ends

The ideal speaker cabinet for the DIY guitarist!
All parts CNC milled and drilled from high quality birch plywood for easy assembly at home or as a base for your own creations.

Size based on the very popular 112AM Lemberg:

• Width: 500 mm
• Height: 410 mm
• Depth: 240 mm
• Speaker cutout: 12"
• Material: 15 mm birch plywood housing, 12 mm birch plywood baffle

The kit includes all components to build the speaker box according to standard as per documentation, such as:

• Connection terminal, round
• Fixing screws for terminal
• Screws and drive-in nuts for speaker mounting
• Wood glue
• Wooden dowels

Not included

• Cable set
• Corner
• Rubber pads
• Handle
• Wood screws

Files:

• Building Instruction (PDF)

[content:3210136]

d= 309mm / 12.17"
mounting brackets NOT included


• Plastic speaker clamp
• for speaker mounting

• Rubber foot with steel insert
• Size: d = 38 mm, h = 25 mm
• Pack of 4

waterbased Tolex-Glue, 500 ml

How To use ?
The glue must be applied onto the wood and the Tolex.
After a dyring time of ca. 30 min the Tolex can be put onto the wood.

And how much glue do you need ?
The can of 500 ml is enough for ca. 2.3 m². This is enough for a TTC212REX and there is still about 100 ml glue left.

Attention
For a better adhesive power it is recommended to put a second layer of glue onto the tolex after the drying time.

Files:

• Safety Datasheet

Aluminium Chassis 036, made for the B-Series kits

• Version: 2020
• 2 mm Aluminium
• predrilled
• made for the TT B-Series Amp-Kits
• 2 x noval, 2 x octal

Files:

• Datasheet

Steel Bar Handle

• Version: mounted in recessed plastic dish
• for top edge mounting with 12 mm Radius
• Color: Black, black powder coated
• Cutout: 170  mm wide

Steel Bar Handle Medium, Recessed

• Material: Steel, black powder coated
• Size: 220 x 162 mm
• Cutout: 170 x 112 mm
• With rivet protection

Punch Sound speakers offer great dynamics and super-fast response, giving the player an extremely solid bass sound.
Equipped with ferrite magnets and steel baskets, they are ideal for classic styles where a clean, tight and bright sound is required.

Specifications

• Nominal Diameter: 209 mm / 8 in
• Nominal Impedance: 8 Ω
• Rated Power AES: 150 W
• Continuos Program Power: 300 W
• Sensitivity @ 1W/1m: 95.0 dB
• Voice Coil Diameter: 50 mm (2")
• Voice Coil Winding Depth: 11 mm
• Magnetic Gap Depth: 8 mm
• Flux Density: 1.10 T
• Magnet Weight: 1100 g
• Net Weight: 3.1 Kg
• Magnet Type: Ferrite
• Basket Material: Pressed Sheet Steel
• Voice Coil Winding Material: Copper
• Voice Coil Former Material: Kapton
• Cone Material: Paper
• Cone Treatment: No
• Surround Material: Treated Cloth
• Dust Dome Material: Solid Paper

Thiele & Small Parameters

• Re: 6.08 Ω
• Qms: 3.61
• Qts: 0.33
• Cms: 203 µm/N
• Vas: 13.1 l
• X max: +/- 3.1 mm
• N: 1.45 %
• Fs: 74.7 Hz
• Qes: 0.36
• Mms: 22.4 g
• Bxl: 13.29 Tm
• Sd: 213.8 cm²
• X var: +/- 6.6 mm
• Le (1KHz): 0.71 mH
