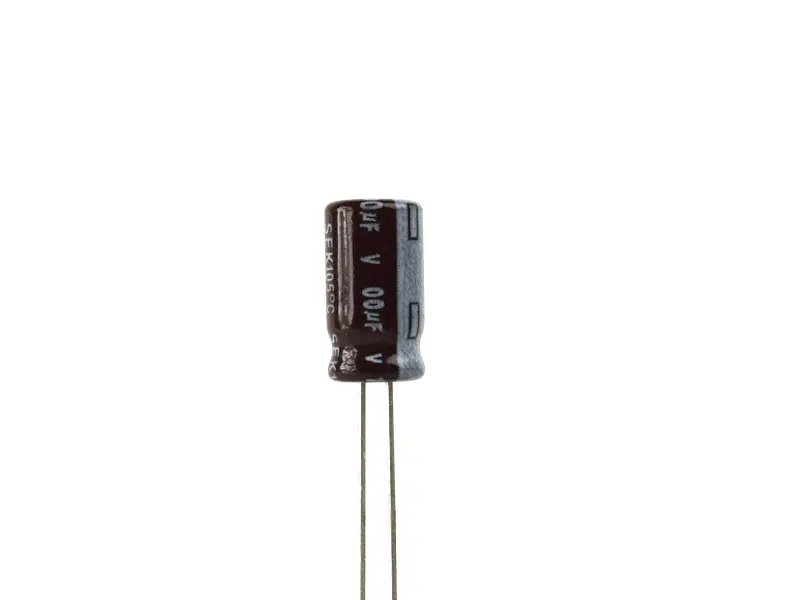

Elektrolyt 22 µF @ 35V

Active, serial FX-Loop for a subsequent installation in an existing tube amplifier
The FX-Loop works with  two LND150 in the send and in the return stage. The send and return level can be adjusted to their optimal value with two potentiometers. The Loop works with the present high voltage of the amplifier.
It has two inputs for low and high signal levels.

Input Levels:
InA: 30 - 60 Vpp, max. 65 Vpp
InB: 10 - 15 Vpp, max. 18 Vpp

The FX-Loop utilize POTENTIALLY FATAL HIGH VOLTAGES.
Seek help from a competent technician if you are in any way unfamiliar with high voltage circuits.
Use at your own risk.

Files:

• Documentation

Resistor, Metal Oxide 5 Watt

• +/- 5% tolerance
• -55° C to 240° C operating range
• max 500 V
• Excellent flame retardant coating
• Small Size

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers
• Pack of 5

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 25 + 25 µF
• Voltage Rating: 25 V
• Tolerance: -10% +30%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 25 mm x 49 mm
• Termination Style: axial

• Size: 6.3 mm 1/4"
• Poles: 2-pole, mono
• Design: open, chassis-mount
• Connection type: solder connections
• Housing: metal
• Manufacturer: Rean (by Neutrik)

Files:

• Datasheet

• Type: Electrolytic capacitor
• Capacitance: 22 µF
• Voltage Rating: 35 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 5 mm x 11 mm
• Termination Style: axial
• Color and manufacturer may differ from the picture shown

Images are for reference only. See Product Specifications

• 2+1 Solder lugs
• lugs brass, tinned

• Type: Electrolytic capacitor
• Capacitance: 4700 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 25 mm x 49 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Type: Electrolytic can capacitor
• Capacitance: 3,3 µF
• Voltage Rating: 63 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 4 mm x 7 mm
• Termination Style: radial
• Grid: 1,5

Images are for reference only. See Product Specifications

Metal Oxide Film Resistors

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

• Type: Electrolytic can capacitor
• Capacitance: 10 µF
• Voltage Rating: 63 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 5 mm x 11 mm
• Termination Style: radial
• Grid: 2

Images are for reference only. See Product Specifications

• Type: Electrolytic can capacitor
• Capacitance: 22 µF
• Voltage Rating: 63 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 6 mm x 11 mm
• Termination Style: radial
• Grid: 2,5

Images are for reference only. See Product Specifications

• Type: Electrolytic can capacitor
• Capacitance: 220 µF
• Voltage Rating: 63 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 10 mm x 19 mm
• Termination Style: radial
• Grid: 5

Images are for reference only. See Product Specifications
