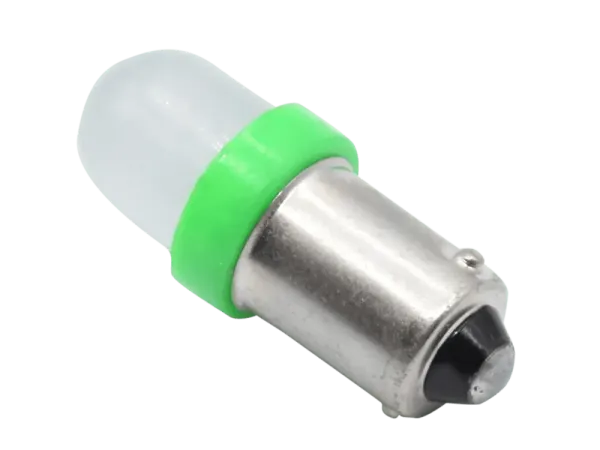

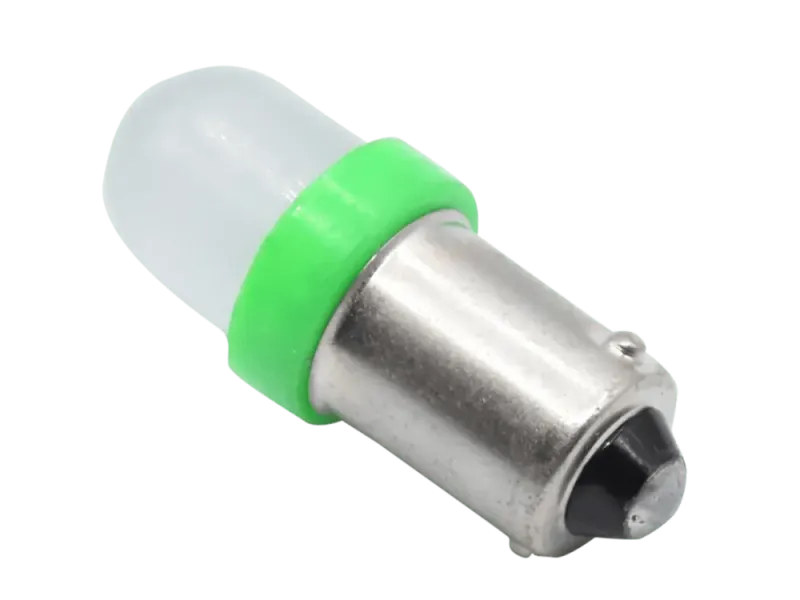

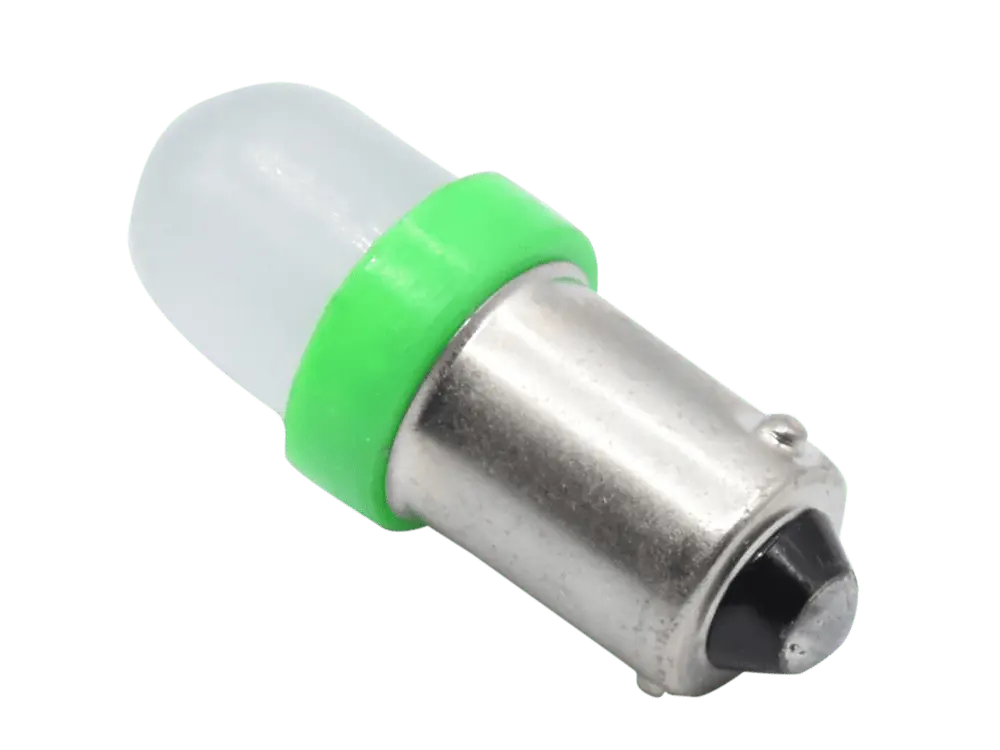

Pilot Lamp - LED Version #47 - green - Sockel BAa9s

• Assembly Ø: 6,2 mm
• Rating: 2A / 250VAC, 5A / 125VAC
• Termination Style: solder-lugs

Fender Pilot Light Set- red

• Chassis Hole: 15,5 mm
• Threading: 9/16 - 24
• Jewel green

• Color: black
• Size:
  • A: 14 mm
  • B: 18 mm
  • D: 24 mm
  • H: 7 mm
  • h: 3 mm
• Material: soft PVC,UL 94 V-2
• Operating temperatures: –30 to +60 °C

Tube-Town EZ-Board #080

• Drills: 6 x 30
• Size: 60 x 300 mm
• Diameter drill: 2,8 mm
• Material: 2 mm
• No drilling needed! Ready for use.

The EZ-Board an be used as an Eyelett-Board without the need to install any Eyeletts or it can be used with Turrets type 1509-4 or TT Type 32.

Files:

• Application Notes Turret-PCB

• Type: Toggle Switch
• Version:DPST, ON - OFF
• Rating: 15A / 250VAC, 10A / 400VAC
• Contact resistance: 10 mΩ max. at 1A 2VDC
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Dielectric strength: 2.000 Vrms 50 Hz min.
• Operating Life:    10.000 cycles at full load
• Termination Style: solder lug / quick-connect terminals

• Datasheet

Metaloxide film resistor

• Nominal Power: 1 Watt
• Max. cont. Working Voltage:: 500 V RMS
• Tolerance: +/- 1%
• Temperature range: -55° C...200° C
• Flame retardant
• Very Small Size
• Size: 6,3 x 2,4 mm

• Power Rating: 0,3 W
• Tolerance: 20%
• Shaft: 6,3 mm, solid metal
• Shaft length: 6 mm
• Drill Ø: 9,5 mm
• Termination: Solder lugs
• Dimension: 24 mm

Metaloxide film resistor

• Nominal Power: 1 Watt
• Max. cont. Working Voltage:: 500 V RMS
• Tolerance: +/- 1%
• Temperature range: -55° C...200° C
• Flame retardant
• Very Small Size
• Size: 6,3 x 2,4 mm

Metaloxide film resistor

• Nominal Power: 1 Watt
• Max. cont. Working Voltage:: 500 V RMS
• Tolerance: +/- 1%
• Temperature range: -55° C...200° C
• Flame retardant
• Very Small Size
• Size: 6,3 x 2,4 mm
