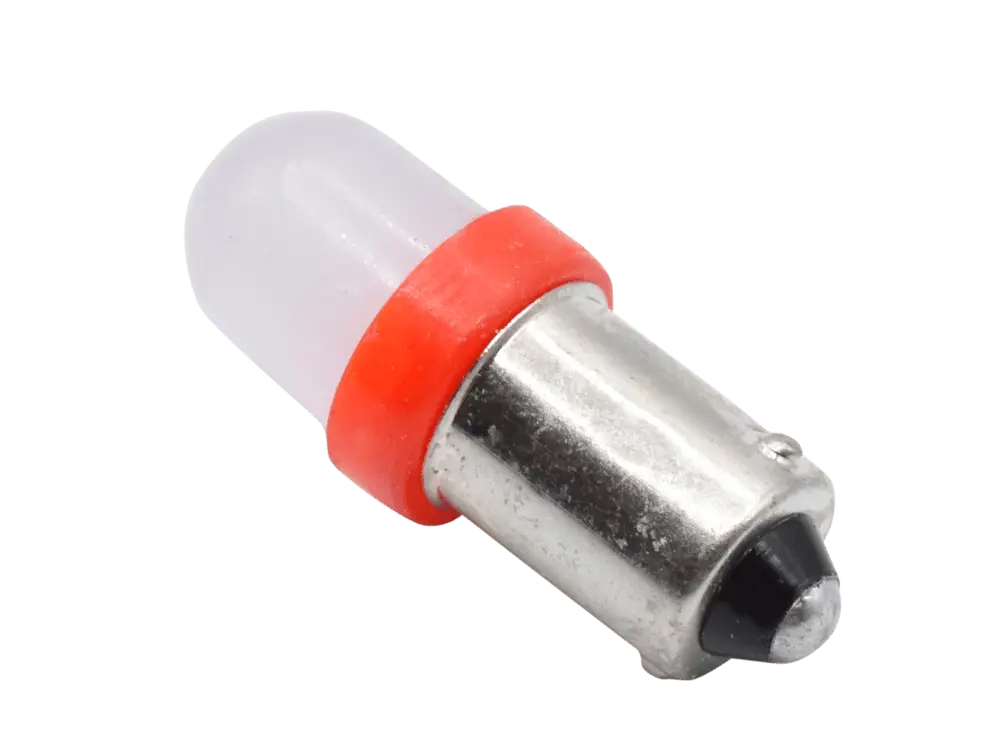

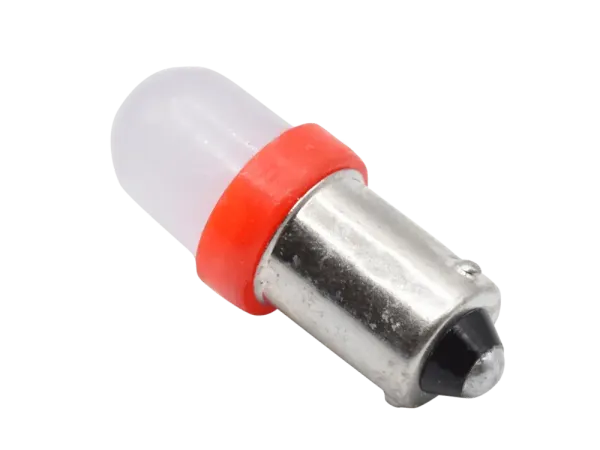

Pilot Lamp - LED Version #47 - red - Sockel BA9s

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers
• Pack of 5

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

• Powertransformer for (Deluxe, 5A3, 5B3, 5C3, 6G3, AB763) (Deluxe Reverb, A1172, A1270, AA763, AB763, AB868, Blackface, Silverface, W/Volume Boost, Tweed Tremolux)
• Fender Part Number 125P23D and 041316
• needed chassis cut-out around 68x54 mm
• Pri: 240V 50 Hz
• Sec.1: 660 VCT @ 138mA
• Sec.2: 6.3 V @ 3 A
• Sec.3: 5 V @ 3 A

Files:

• Datasheet

• Fender Choke 125C3A & 022707
• Deluxe, Deluxe Reverb, Vibrolux, Vibrolux Reverb
• 4 H

Files:

• Datasheet

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 350 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 12 mm x 30 mm
• Termination Style: axial

SoZo NexGen Mustard Vintage Capacitors™
Used by many boutique amp builders. The difference between the Mustard NexGen Vintage™ and Mustard Cap Standard™ lines is that the NexGen Vintage capacitors are made entirely by hand, with no machine automation. This is the only way to achieve this level of performance and sound.

Fender® style lamp jewels

• Threading: 9/16 - 24

Variable voltage control for voltages up to 600 V

Possible applications:
- G2 Control
- Power adjustment

Please see the >>TT VoCoM Projekt-Seite zu finden.

Der Bausatz beinhaltet alle Teile die zum Bau benötigt werden wie Widerstände, Dioden, Leistungstransistor, Kühlkörper, Potentiometer, Schraube, Mutter, Leitung, Beschriftungsschild.

ACHTUNG HOCHSPANNUNG:
Dieser Bausatz ist nichts für Anfänger. Wer nicht weis, was er damit tut, sollte diesen Bausatz auch nicht kaufen !

">>TT VoCoM project page for more infos

Kit includes:
all parts to build this VVC. Resistors, Heatsink, Wires, Potentiometer, PCB, Label, Screws, Nuts.

WARNING: HIGH VOLTAGE !!
This kit is not for beginners. If you do not know what you are doing than you should NOT buy this kit!
