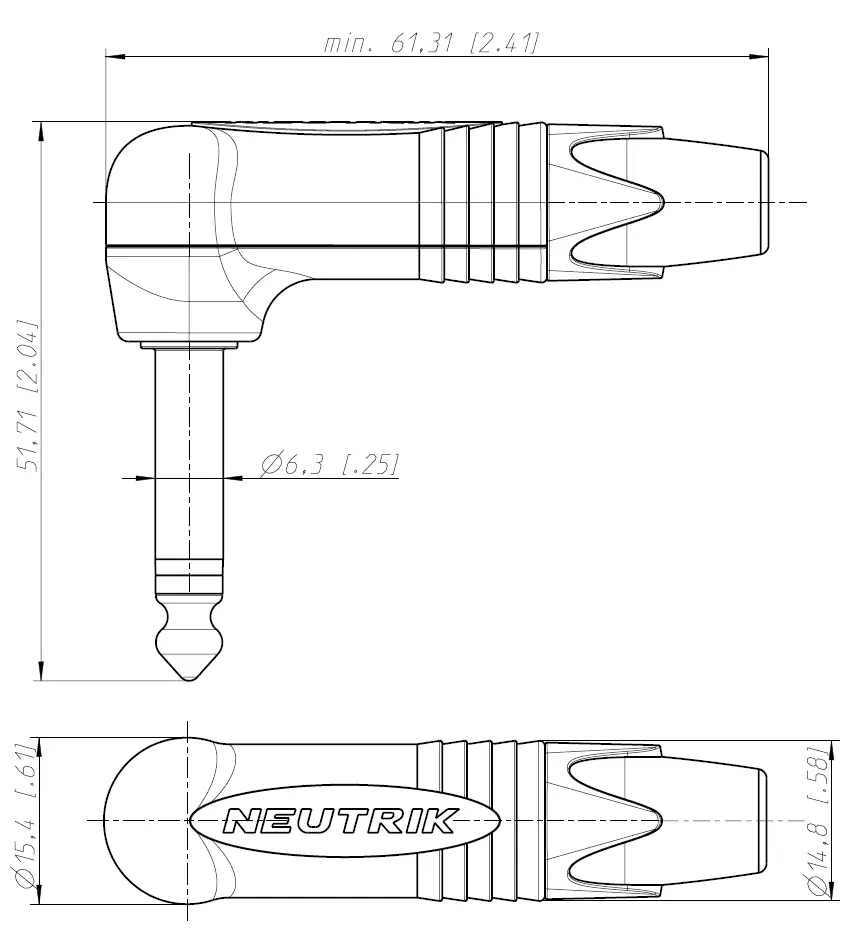

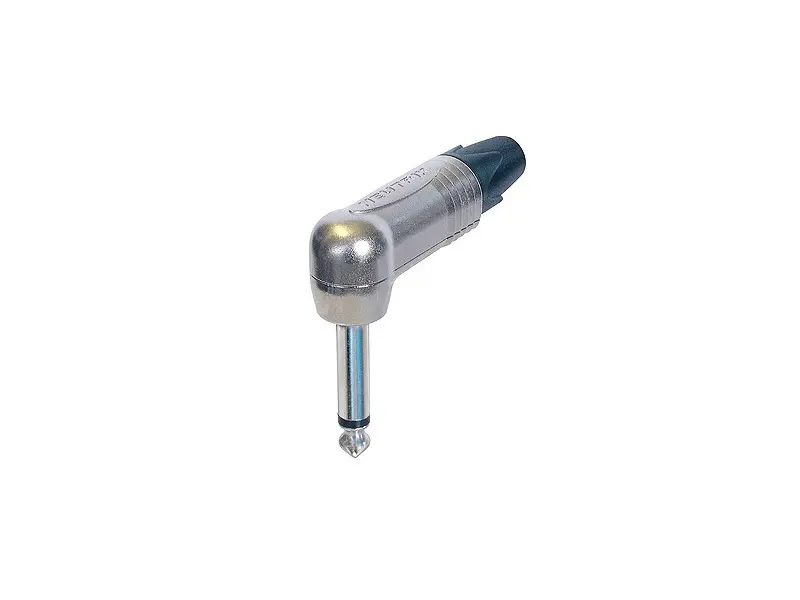

Neutrik NP2RX - 6,3 mm (1/4") phone plug, right-angle, mono, silver

The TRICONE® MKII is a flexible cable for guitar, keyboard, the live musician, studio keyboarder, and the home recorder. Based on the sound wire diameter of 0.22 mm² and the fine individual strands of 0.10 mm, it is protected against cable breaks and convinces with high bending cycles. It is very robust, easy to wind, and very reasonably priced.

When working with it care should be taken when removing the concutive shielding (black PVC-hose) from the insulation, so that it does not touch the inner conductor.

TRICONE® is a protected and registered trademark of SOMMER CABLE GmbH.

THE ADVANTAGES:

• Very robust due to the large conductor diameter and fine individual stranding
• Good electrical values due to the insulation made of skin PE
• 100 % Protected due to double shielding (copper spiral + conductive carbon shielding)
• High number of bending cycles

• Dependable cable for live application (guitar and keyboard)
• Reasonable line or patch cable for the home recorder

• Construction LI2Y(LS)DY1x0.22mm²
• Jacket, diameter PVC 5,9 mm
• AWG 24
• No. of inner conductors 1 x 0,22 mm²
• Copper strand per conductor 28 x 0,10 mm
• Conductor insulation skin PE 1,8 mm
• Shielding copper spiral shielding + semiconductor
• Shielding factor 100 %
• Temperature range min. -20 °C
• Temperature range max. 70 °C
• Fire load per m 0,26 kWh
• Color: black
• Weight per 1 m 42 g

• Capac. cond./shield. per 1 m < 85 pF
• Cond. resistance per 1 km < 90 Ohm
• Insulation resist. per 1 km > 1 GOhm

This high end guitar cable is one of the most successful products of the past years and enjoys cult status with guitarists and bassists alike. Because of the excellent price-performance ratio, German and international trade press elected the SC-SPIRIT XXL test champion several times in a row.
The cable is robust and yet flexible, while its smoke-coloured jacket gives it a high recall value.
The shielding is ideal: The braiding is 95 % opaque and provides optical protection of 100 %, for even more safety.
A special lacquering makes the complex foamed polyethylene insulation very endurable and helps protect the excellent transmission properties for years to come.
The wire diameter of 0.75 mm² limits the loss typical for long distance guitar cables. There is hardly a guitar cable at a length of 10 m that sounds as good as the SC-SPIRIT XXL.
The customers consider the sound of the SC-SPIRIT XXL to be crystal-clear, clean and very neutral. It reproduces the impulsiveness of bass attacks exquisitely.
Caution: The black carbon shield between the braided shielding and the insulation is highly conductive. It must be removed before soldering to avoid short circuiting!

THE APPLICATION:

• Enormously powerful and clear sound image for bass, guitar and keyboard
• Double shielding due to the combination of copper braided shield and conductive carbon shielding
• Transmission free of losses due to low capacity and large wire diameter
• Very flexible and easy to wind due to the use of fine individual stranding
• Durability and robustness due to a special high quality PVC-mixture for the jacket
• High quality guitar and bass cable for studio and stage
• Unbalanced cable for keyboards, samplers, mixing boards, etc.
• Connection of stereo video recorder and DAT-recorder

• Construction LI2Y(LS)CY 1x0,75mm²
• Jacket, diameter PVC 6,8 mm
• AWG 18
• Inner conductors 1 x 0,75 mm²
• Copper strand per conductor 42 x 0,15 mm
• Conductor insulation Foam/skin-PE 3,1 mm
• Shielding copper spiral tin-plated + semiconductor
• Shielding factor 100 %
• Temperature range min. -30 °C
• Temperature range max. 70 °C
• Fire load per m 0,26 kWh
• Weight per 1 m 52 g
• Color black transparent

• Capac. cond./shield. per 1 m 86 pF
• Cond. resistance per 1 km 25 Ohm
• Insulation resist. per 1 km > 50 MOhm

Tube-Town EZ-Board #080

• Drills: 6 x 30
• Size: 60 x 300 mm
• Diameter drill: 2,8 mm
• Material: 2 mm
• No drilling needed! Ready for use.

The EZ-Board an be used as an Eyelett-Board without the need to install any Eyeletts or it can be used with Turrets type 1509-4 or TT Type 32.

Files:

• Application Notes Turret-PCB

• Size: 119 mm x 93 mm x 41 mm
• Color: Natural

Files:

• Datasheet

• 500 kOhm Audio
• Power Rating: 250 mW (1/4 W)
• Voltage Rating: 250 V
• Tolerance: 20 %
• Termination Style: Solder Lug
• Element Type: Carbon
• Shaft Diameter: 6,3 mm
• Shaft Type: Knurled Split Shaft

This high end guitar cable is one of the most successful products of the past years and enjoys cult status with guitarists and bassists alike. Because of the excellent price-performance ratio, German and international trade press elected the SC-SPIRIT XXL test champion several times in a row.
The cable is robust and yet flexible, while its smoke-coloured jacket gives it a high recall value.
The shielding is ideal: The braiding is 95 % opaque and provides optical protection of 100 %, for even more safety.
A special lacquering makes the complex foamed polyethylene insulation very endurable and helps protect the excellent transmission properties for years to come.
The wire diameter of 0.75 mm² limits the loss typical for long distance guitar cables. There is hardly a guitar cable at a length of 10 m that sounds as good as the SC-SPIRIT XXL.
The customers consider the sound of the SC-SPIRIT XXL to be crystal-clear, clean and very neutral. It reproduces the impulsiveness of bass attacks exquisitely.
Caution: The black carbon shield between the braided shielding and the insulation is highly conductive. It must be removed before soldering to avoid short circuiting!

THE APPLICATION:

• Enormously powerful and clear sound image for bass, guitar and keyboard
• Double shielding due to the combination of copper braided shield and conductive carbon shielding
• Transmission free of losses due to low capacity and large wire diameter
• Very flexible and easy to wind due to the use of fine individual stranding
• Durability and robustness due to a special high quality PVC-mixture for the jacket
• High quality guitar and bass cable for studio and stage
• Unbalanced cable for keyboards, samplers, mixing boards, etc.
• Connection of stereo video recorder and DAT-recorder

• Construction LI2Y(LS)CY 1x0,75mm²
• Jacket, diameter PVC 6,8 mm
• AWG 18
• Inner conductors 1 x 0,75 mm²
• Copper strand per conductor 42 x 0,15 mm
• Conductor insulation Foam/skin-PE 3,1 mm
• Shielding copper spiral tin-plated + semiconductor
• Shielding factor 100 %
• Temperature range min. -30 °C
• Temperature range max. 70 °C
• Fire load per m 0,26 kWh
• Weight per 1 m 52 g
• Color black transparent

• Capac. cond./shield. per 1 m 86 pF
• Cond. resistance per 1 km 25 Ohm
• Insulation resist. per 1 km > 50 MOhm

Double Relay Switcher for channel switching and similar applications.

The kits comes with all components incl. 6 V Finder relaise but without switches for the front panel.
Works with 6,3 V heater voltage.

Files:

• Datasheet

Carbonfilm Resistor
Low noise, small size, high power rating
Power: 1 Watt
Voltag: 500 V working / 1000 V overload
Axial Leads
-55° C - 155° C
12 * 5 mm
RoHS
