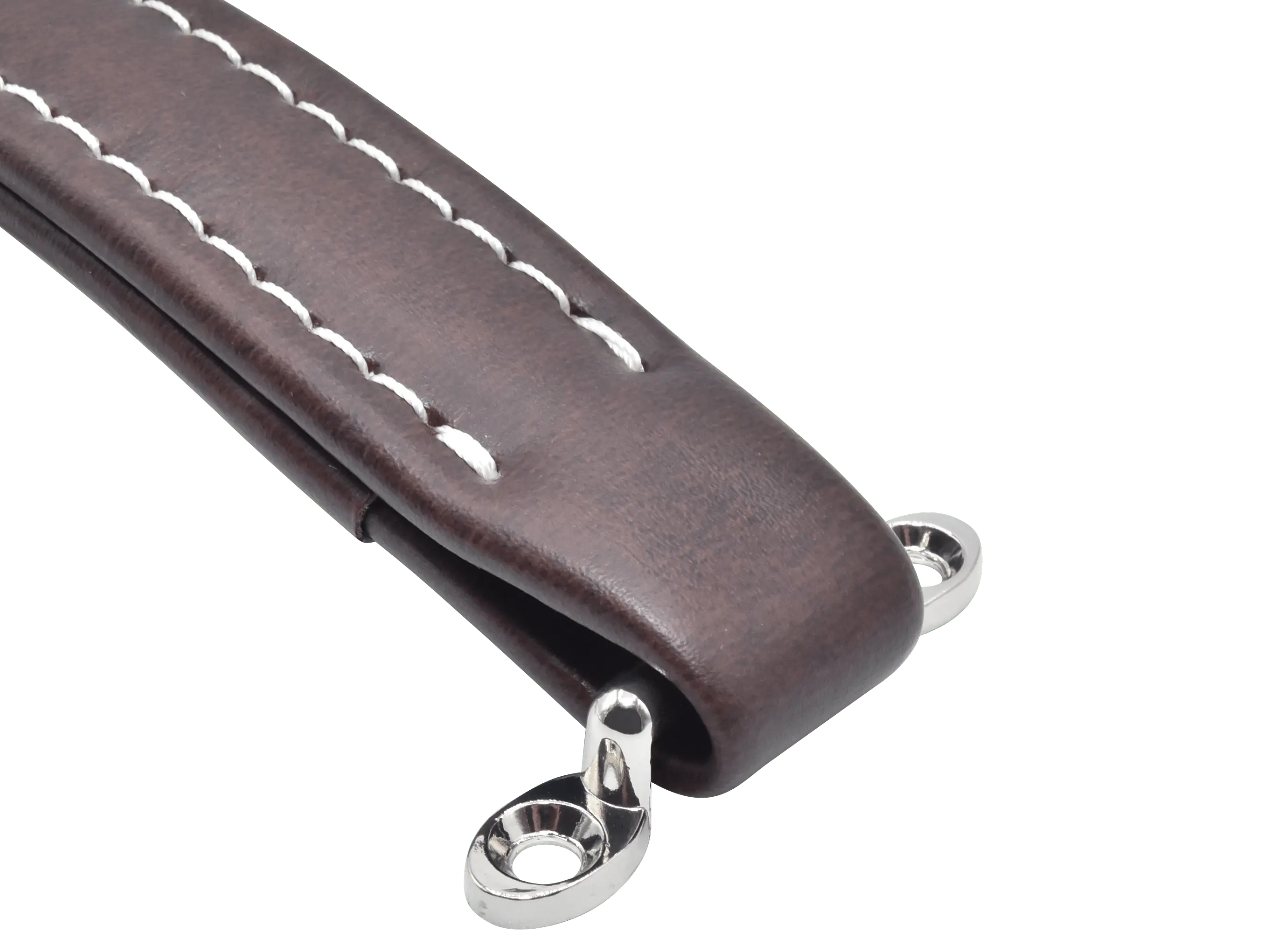

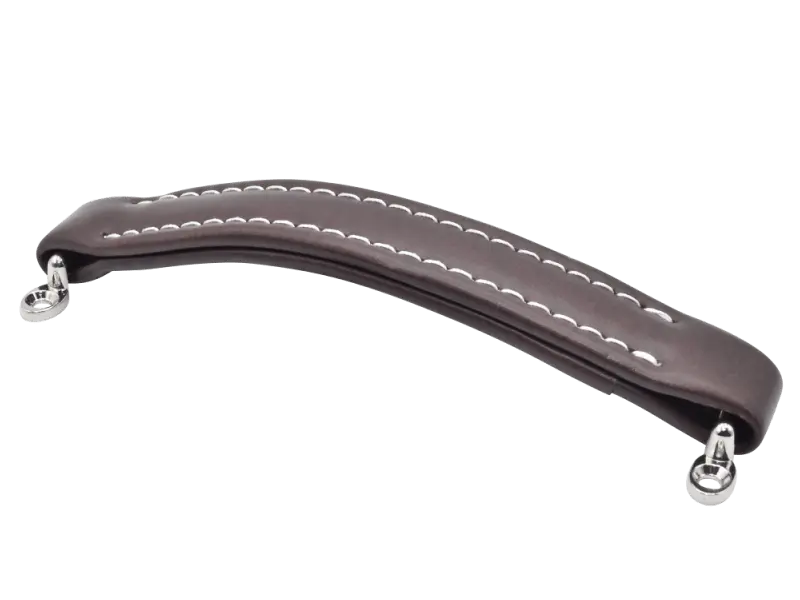

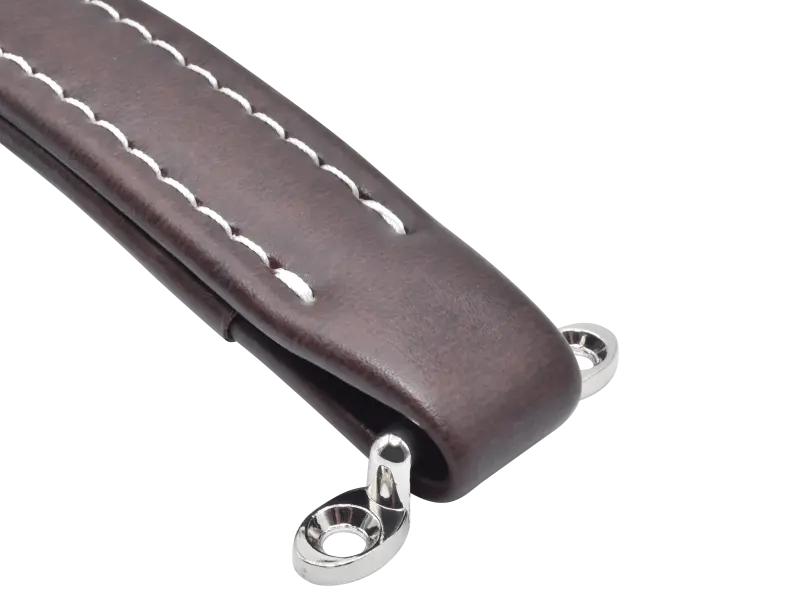

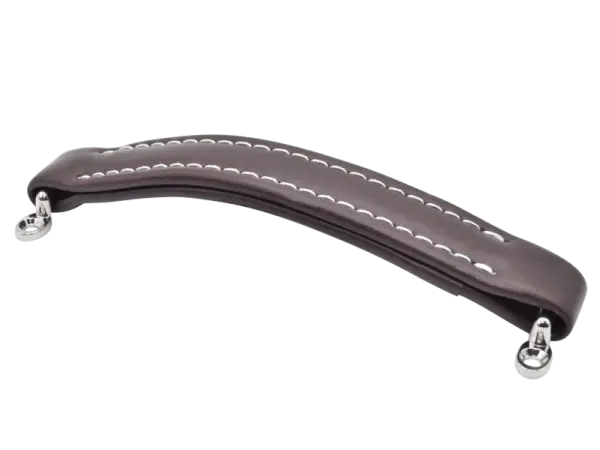

Case Handle imitation leather, dark brown

A 100% Matchless® Spitfire Clone, Point-to-Point

Set of componentes for building the TT Spit F. Guitar Amp.
Please visit the >>Project page for more infos about the amp, schematics and layout.

INCLUDED:

• Transformers (Power and Output, tt-ma18pw-INT and Hammond 1750PA or TT-MA18-OT)
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Chassis ( see "Accessories" tab for matching chassis )
• Knobs
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

Tube-Town Marshall Style18 Watt Chassis

• Size: (WxHxD) 432 x 170 x 65 mm
• Material: 2 mm Aluminium (AllMg3)
• reinforced corners (V2020 and above)

Please see also the list with recommended accessories !

Files:

• Datenblatt V2020
• Template 18W Faceplate
• Template Faceplates

• Type: Chickenhead
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 32 x 13,7 mm
• Mounting: Set-Screw

Vacuum Tube Damper made of silicon, helps to reduce noise and rattle of vacuum tubes. But it will not turn a bad tube into a good tube.
If a higher level of damping is needed, than use more than one damper per tube.

• Inner diameter ca. 22 mm
• Can not be used with JJ 12AX7 and other JJ preamp tubes with similar diameter and JJ EL84 and JJ EL844
• Price per damper

BEFORE ordering check the exact outer diameter of the vacuum tubes and compare it with the diameter of the damper to make sure that the damper fits.

Cabinet corner leather dark brown, Set of 4
100 % real letaher, vegetable tanned
Caution: natural product ! The texture and thickness may vary.

Hint: put the corners into water for a few minuties before mounting. This makes them soft and elastic and than they will fit better.
The corners on the chassis should be well rounded too in order to achieve best results.

• Cagenut for 19" racks or chassis
• Pack of 4 cagenuts

• Type: Raised Head with cross recess
• Material: Steel
• Strength class: 4.8
• Surface: Zinc-plated
• DIN: 7985
• ISO: 7045
• Price: per pcs.

2 tubes, matched as pair

JJ 6V6 Double Mica double-layered mica in the upper part of the tube. This stabilizes the tube system and significantly reduces possible vibrations that can occur due to heavy mechanical stress. This version of the JJ 6V6 was specifically designed for use in combo amplifiers.

The JJ6V6 is a beam power pentode with octal base and a maximum plate dissipation of 14W. It has fat low end and full mid tones with very good tone separation and a smooth, clean high end - in general, a very balanced tone.
Currently, the only new production 6V6 which is approved for up to 500V anode voltage in pentode operation.

Files:

• Datasheet

Cliff 11607 mono jack

• Jack socket, mono
• switched
• gold plated
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug

Files

• Datasheet



The 12” Veteran 30™ speaker from WGS is tonally superior to Celestion's™ Vintage 30™ speaker. The tonal improvement is in the upper-mids. The Veteran 30™ speaker has smoothed out the upper-mid "spike" notorious in the Vintage 30™ speaker.

Unit Weight:  10 pounds

Mounting Information

• Diameter:12.2”
• Overall depth: 5.3”
• Cut-out diameter: 11.1”
• Mounting slot dimensions: 0.31”
• Number of mounting slots: 8

Thiele-Small Parameters

• Resonant Frequency (Fs): 94.84 Hz
• DC Resistance (Re): 7.99 Ohm
• Coil Inductance (Le): 0.35 mH
• Mechanical Q (Qms): 12.15
• Electromagnetic Q (Qes): 0.78
• Total Q (Qts): 0.74
• Compliance Equiv. Vol. (Vas): 18.53 cu ft
• Mech. Compliance of Susp. (Cms): 0.10 mm/N
• BL Product (BL): 13.25 T-M
• Diaphragm Mass Inc. Airload (Mms): 28.88 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.84 db
