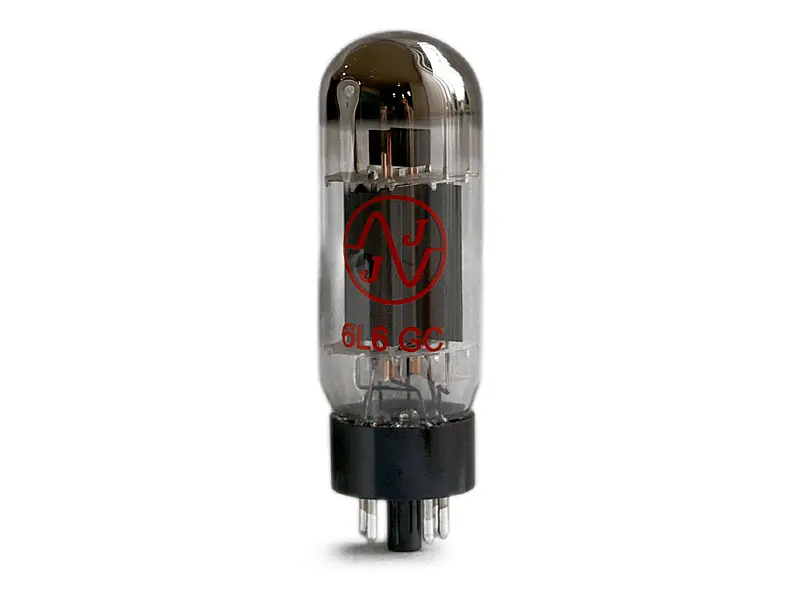

JJ 6L6 - #19 - Mesa GREEN - GRAY

4 tubes, matched as quad

Standard EL34 made by JJ with a smooth and dizzy sound.

Limiting Values:

• Ua0: 2000 V
• Ua: 800 V
• Wa(max): 25 W
• Ug20: 800 V
• Ug2: 450 V
• Wg2(max): 8 W
• Ik: 150 mA
• Uk/f: 100 V
• Rk/f: 20 kΩ

Files:

• Datasheet

JJ EL84 #08 - Medium

• recommended for TT 18W, TT Spitfire and AC30
• Price for one tube.

FAQ: If I order two or more of these tubes, are they all "the same"?
Yes, the tubes are all "matched" and selected for the in the description mentioned amplifiers.
FAQ: Can I replace the tubes myself or are adjustments needed?
Adjustments are not possible on the listed amplifier (unless a bias potentiometer has been added afterwards). The replacement can therefore be done without adjustments.

EMI suppression capacitors (MKP) X2 class

• Capacitance: 10 nF
• Voltage: 305 VAC
• Lead Pitch: 10 mm
• Maximum Operating Temperature: +110°C
• Tolerance: ±20%
• Terminal Type: Through Hole

• Rated Voltage: 250 VAC
• Contact caps: nickel-plated brass
• Size: Ø 5 mm x 20 mm

Metal Oxide Film Resistors

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

• Type: Electrolytic capacitor
• Capacitance: 22 µF
• Voltage Rating: 35 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 5 mm x 11 mm
• Termination Style: axial
• Color and manufacturer may differ from the picture shown

Images are for reference only. See Product Specifications

2 tubes, matched as pair

Standard EL34 made by JJ with a smooth and dizzy sound.

Limiting Values:

• Ua0: 2000 V
• Ua: 800 V
• Wa(max): 25 W
• Ug20: 800 V
• Ug2: 450 V
• Wg2(max): 8 W
• Ik: 150 mA
• Uk/f: 100 V
• Rk/f: 20 kΩ

Files:

• Datasheet

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 47 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 21 mm x 37 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

JJ's version of the ECC81/12AT7 tube type with a warm and soft sound. Often used for phase inverters or reverb drivers.

Files:

• Datasheet

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

Single tube, not matched

Rugged and wonderful-sounding Power Beam tetrode that performs flawlessly at up to 475 volts. Great replacement for single-ended amps such as Fender Champ, or high plate voltage amps like the Fender Deluxe Reverb.

• Specially developed cathode coating
• Tri-alloy plate material
• Carefully aligned grid
