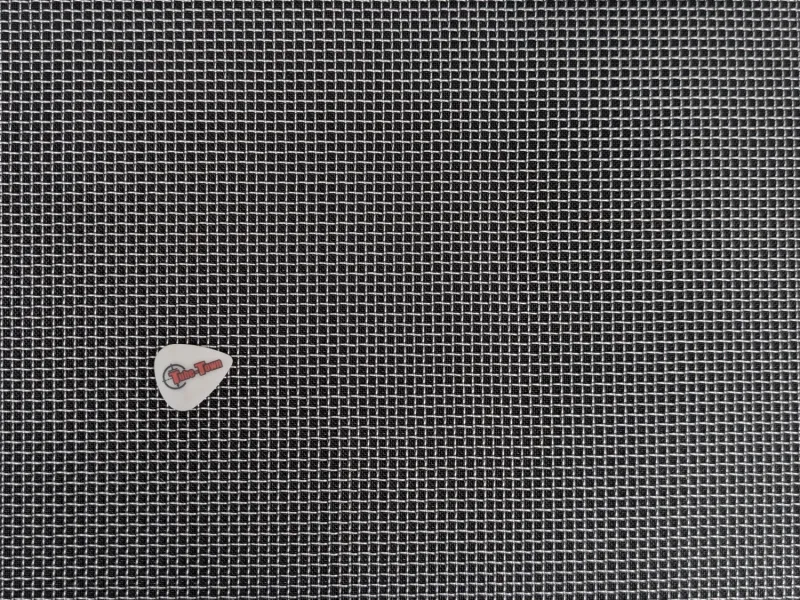

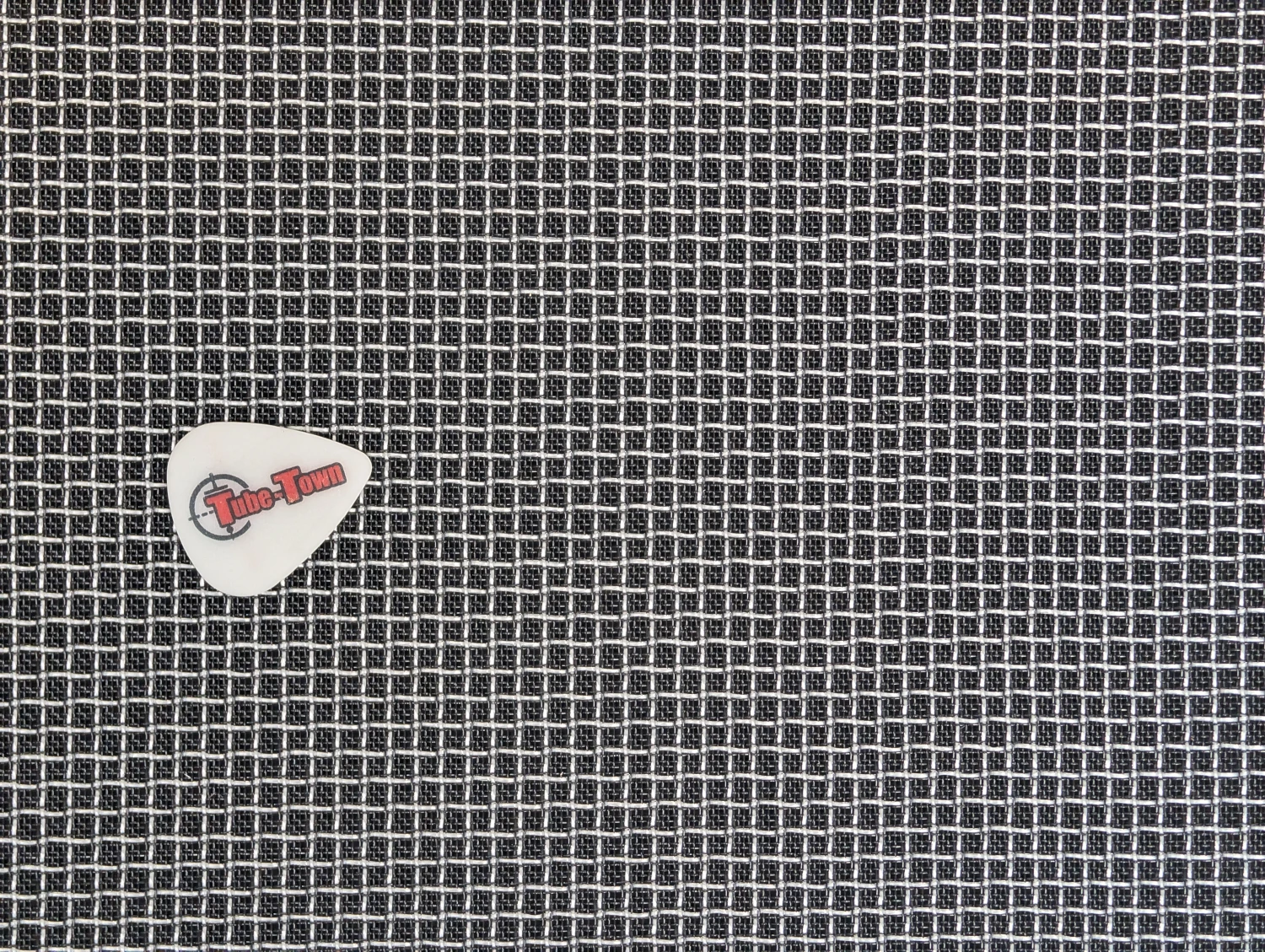

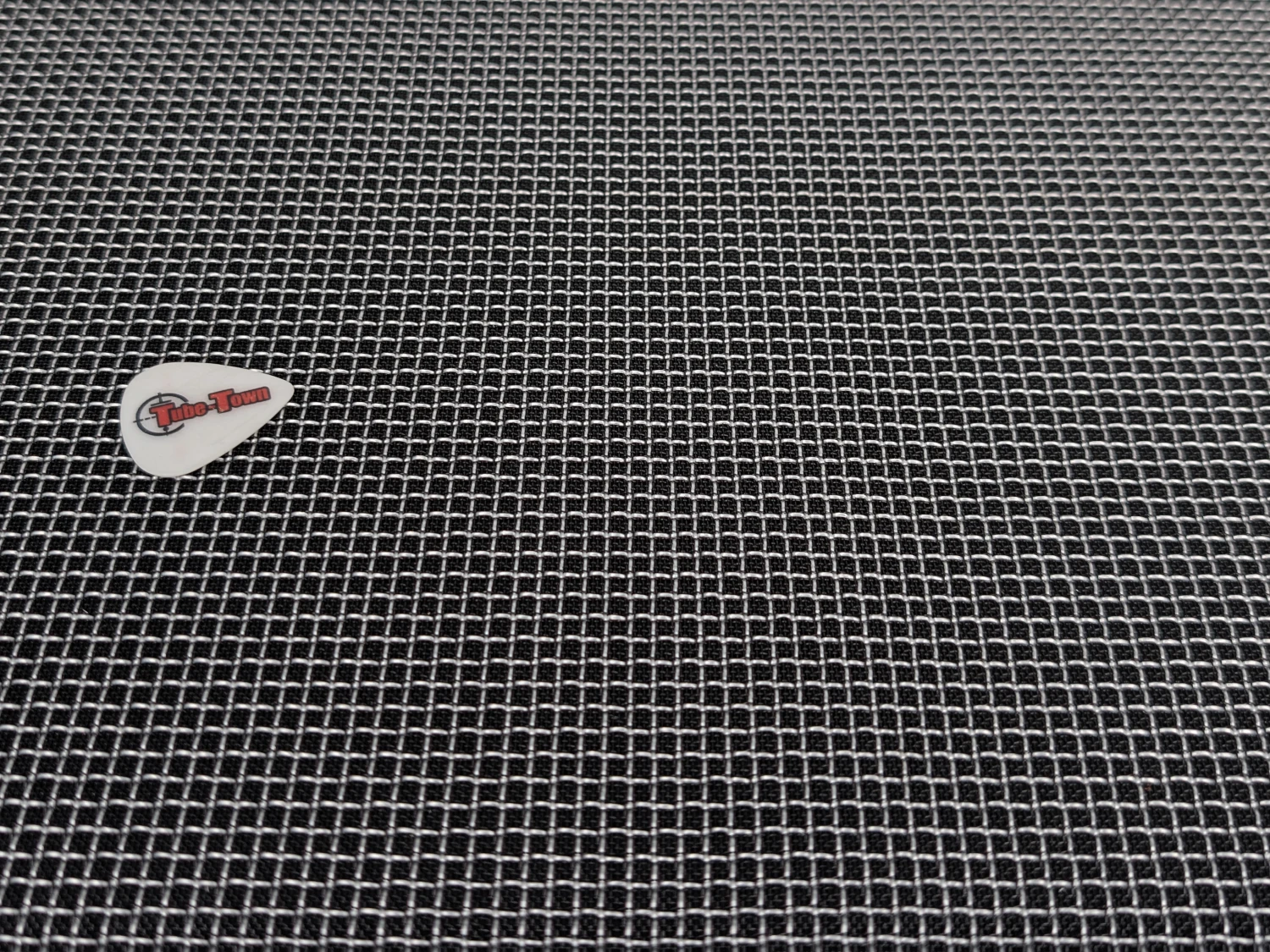

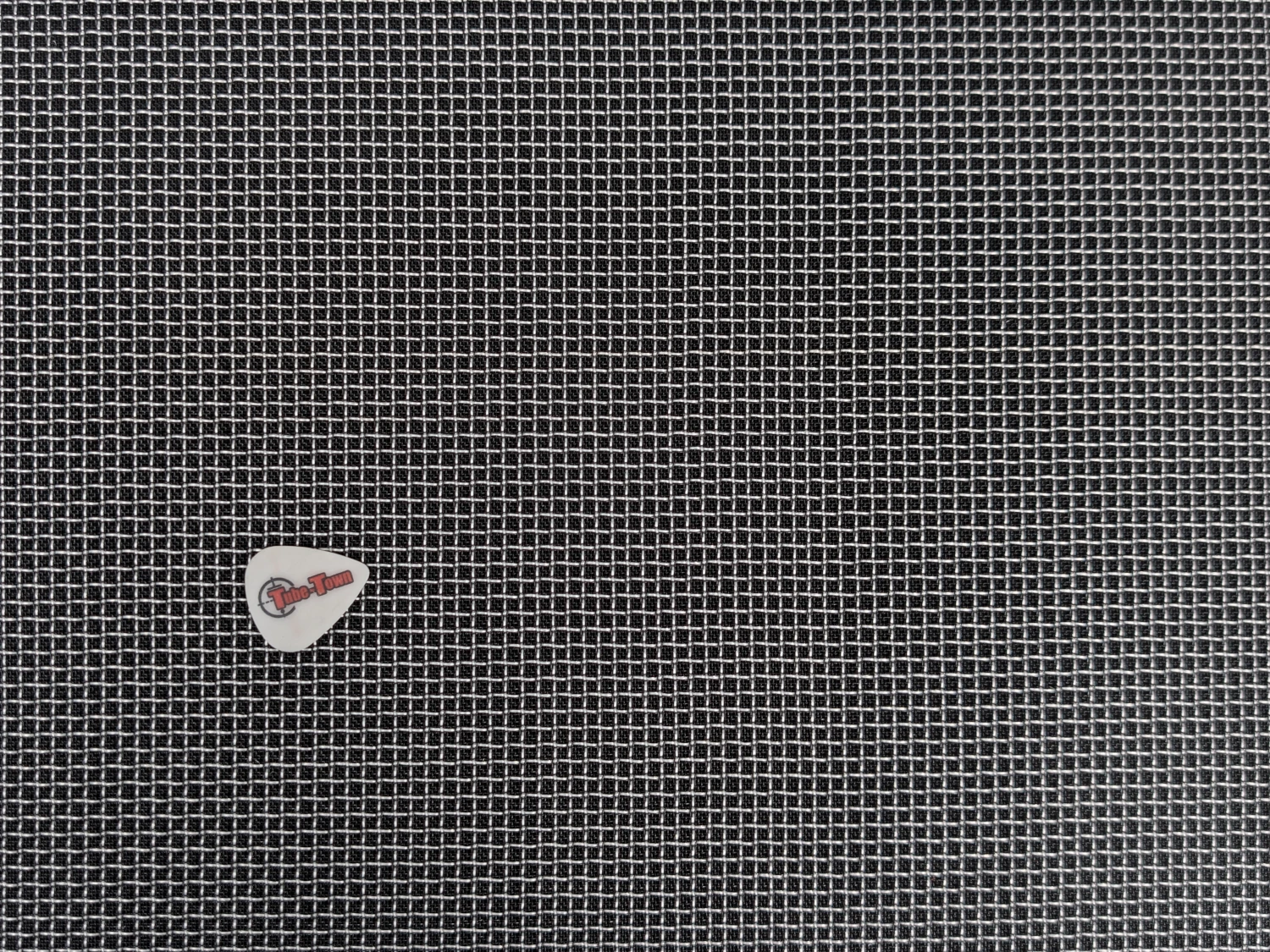

Grillcloth Tube-Town Silver Square - 75 x 100 cm

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

4 tubes, matched as quad

EL34 II has fuller low mids and low end but does not lose headroom in the high end. Stronger than regular JJ EL34 but not as aggressive as the JJ E34L.

• Ua = 250 V
• Ug3 = 0 V
• Ug2 = 265 V
• Ug1 = -13,5 V
• Ia = 100 mA
• Ig2 = 14,9 mA
• S = 11 mA/V
• Ri = 15 kΩ
• μg2/g1 = 11

• Ua0 = 2000 V
• Ua = 800 V
• Wa(max) = 25 W
• Ug20 = 800 V
• Ug2 = 450 V
• Wg2(max) = 8 W
• Ik = 150 mA
• Uk/f = 100 V
• Rk/f = 20 kΩ

Files:

• Datasheet

• Standard Recovery Rectifier
• Voltage max: 1000V
• Current Rating: 1A
• Forward Current: 1A
• Forward Current Avg Rectified, IF(AV): 1A
• Forward Surge Current Max, Ifsm: 1A
• Forward Voltage: 1 V
• Forward Voltage Max, VF:1.3V
• Pack of 10 pcs

• Eyelet 1/8"
• recommended for use with 2 mm boards
• Length under flange: 0,125" / 3,18 mm
• 50 pcs/Pack

Files:

• Datasheet

Technical Data:

• Primary:  220, 230 & 240 V @ 50 Hz
• Sec. 1: 250V @ 125 mA
• Sec. 2: 250V @ 125 mA
• Sec. 3: 6,3V C.T. @ 7 A
• Sec. 4: 60V @ 100 mA
• Sec. 5: 15V @ 1 A

Files:

• Datasheet
