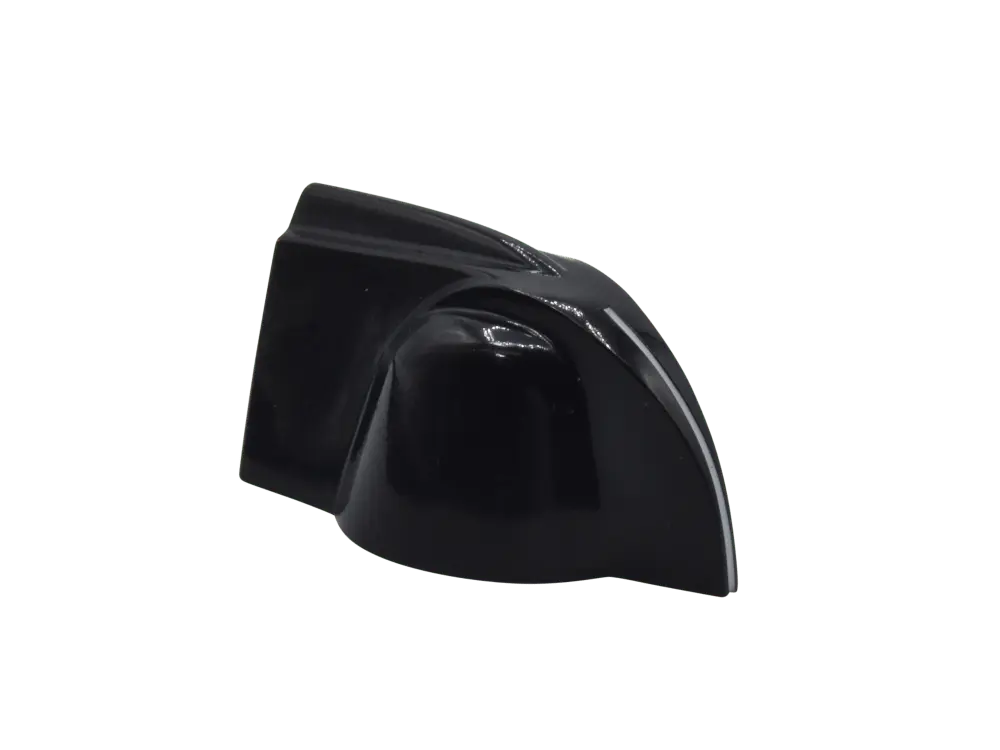

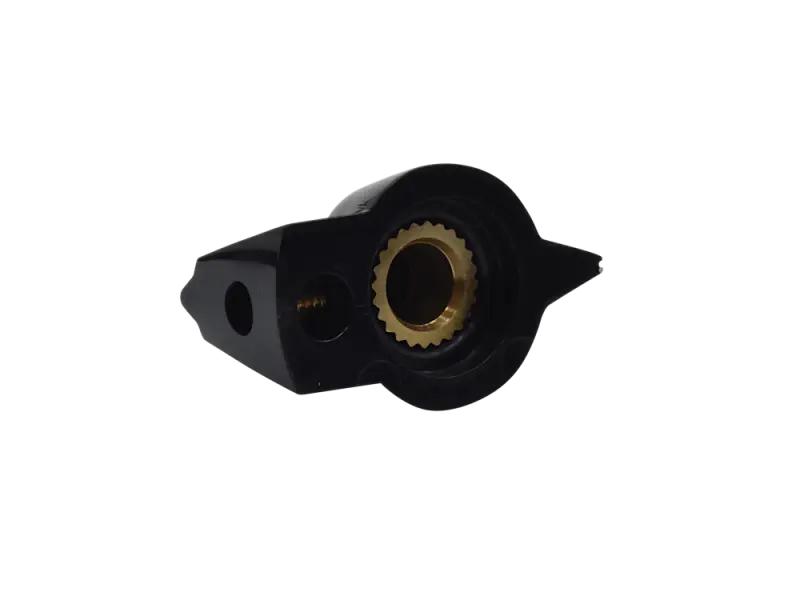

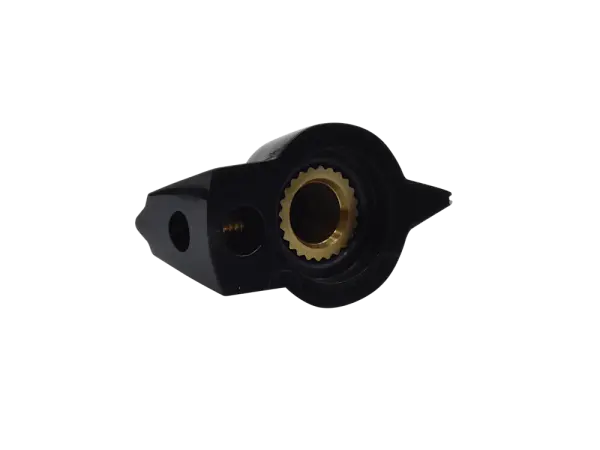

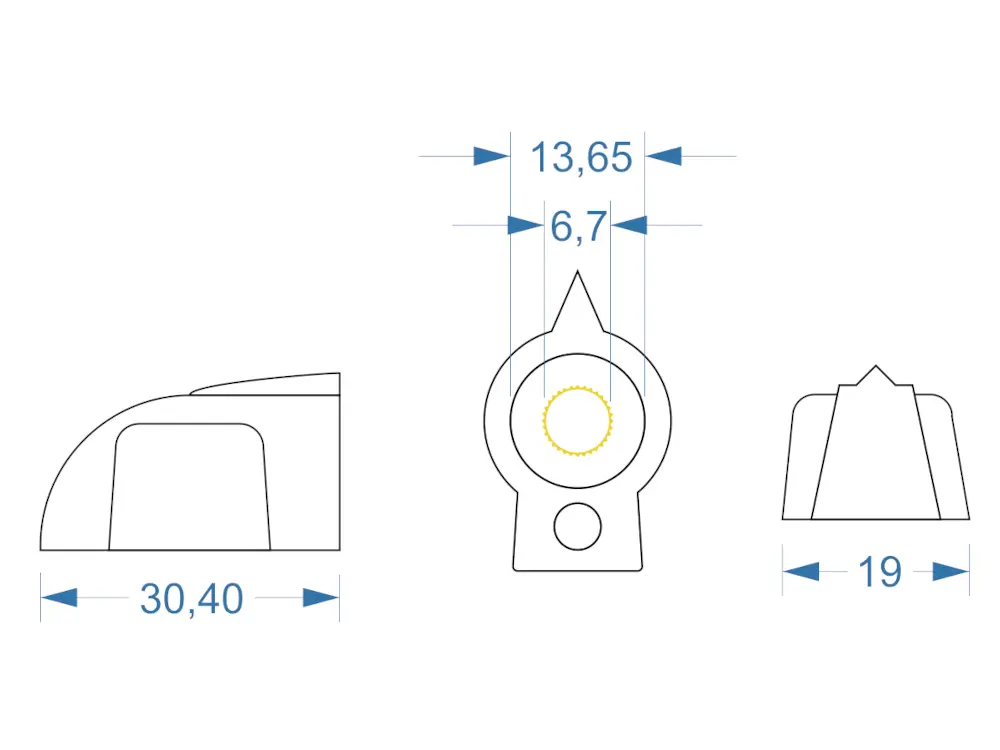

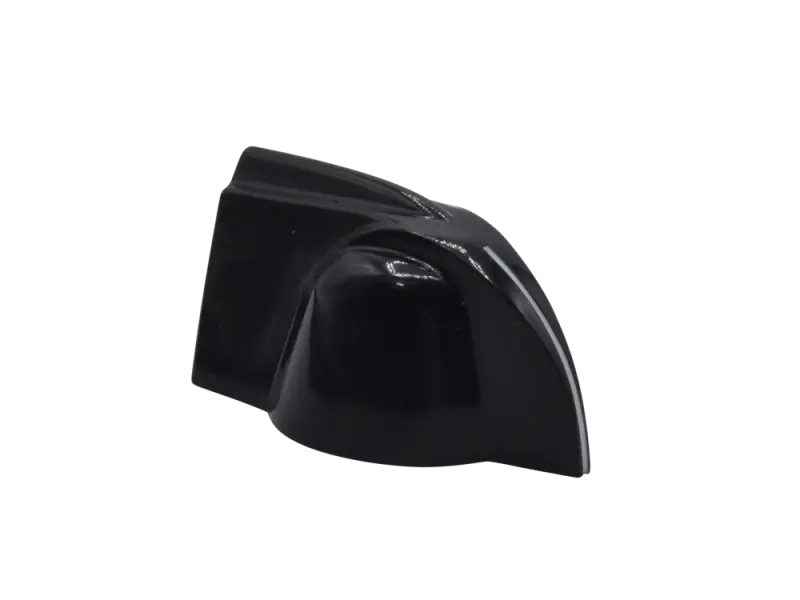

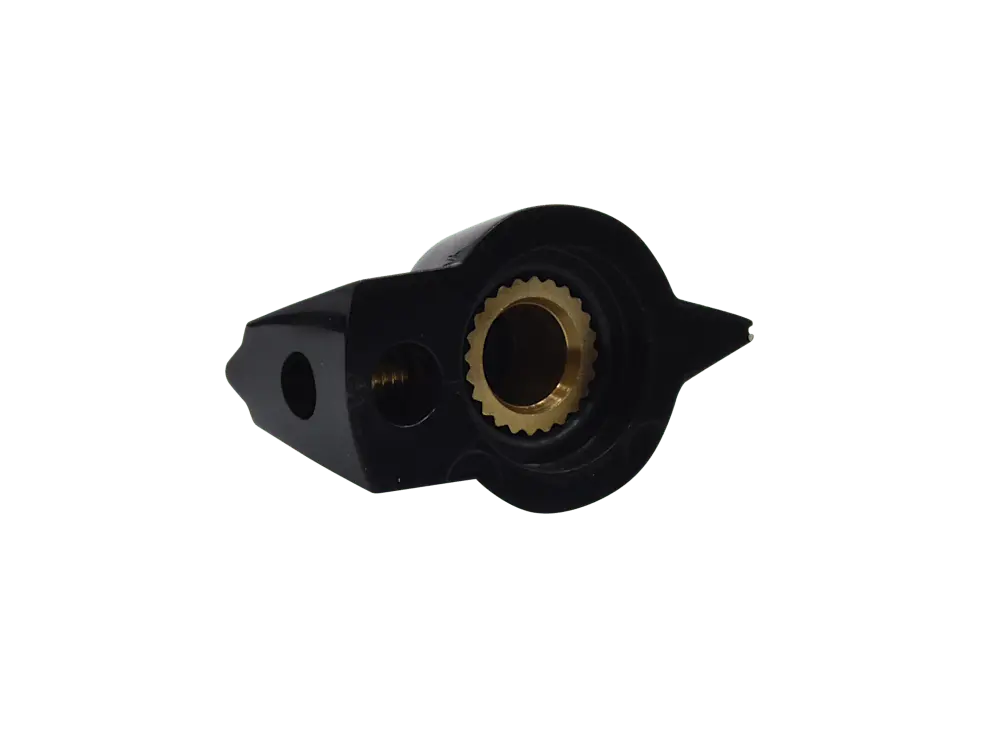

Knob Chickenhead Raised, black

• LED 3,0 mm
• Color: blue
• Lense: blue
• forward voltage: 2,9 V

TT-Chassis Aluminium - Typ 008 Standard, Dumble-Size (V2020

• Size: 490 x 200 x 65 mm (Dumble size)
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)
• reinforced Corners
• With two cut-outs for power jacks
• Made in Germany

Files:

• Datasheet V2020
• Datasheet V2017 (old)

Active, serial FX-Loop for a subsequent installation in an existing tube amplifier
The FX-Loop works with  two LND150 in the send and in the return stage. The send and return level can be adjusted to their optimal value with two potentiometers. The Loop works with the present high voltage of the amplifier.
It has two inputs for low and high signal levels.

Input Levels:
InA: 30 - 60 Vpp, max. 65 Vpp
InB: 10 - 15 Vpp, max. 18 Vpp

The FX-Loop utilize POTENTIALLY FATAL HIGH VOLTAGES.
Seek help from a competent technician if you are in any way unfamiliar with high voltage circuits.
Use at your own risk.

Files:

• Documentation

• Type: Tubular Metalized Polyester Film Capacitors
• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial
• • Non-inductive
  • Self healing windings.
  • Similar to the Mallorys 150-Series

• Power Rating: 0,125 W log
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M7 (6,8 mm)
• Termination: Solder lugs
• Dimension: 16 mm

• Rated Voltage: 250 VAC
• Contact caps: nickel-plated brass
• Size: Ø 5 mm x 20 mm
• Pack of 10

• Type: Tubular Metalized Polyester Film Capacitors
• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial
• • Non-inductive
  • Self healing windings.
  • Similar to the Mallorys 150-Series

• Type: Film capacitor
• Dielectric: polypropylene film
• Coating: plastic foil, metalized on both sides
• Capacitance: 0,047 µF
• Voltage Rating: 400 VDC / 250 VAC
• Tolerance: ±10 %
• IEC climate category: 55/100/56
• Operating Temperature Range: - 55°C / + 100 °C
• Dimensions: 5 x 11 x 18 mm
• Termination Style: radial
• Grid: 15

• Type: Film capacitor
• Dielectric: polypropylene film
• Coating: plastic foil, metalized on both sides
• Capacitance: 0,022 µF
• Voltage Rating: 400 VDC / 250 VAC
• Tolerance: ±10 %
• IEC climate category: 55/100/56
• Operating Temperature Range: - 55°C / + 100 °C
• Dimensions: 4 x 9 x 13 mm
• Termination Style: radial
• Grid: 10

5+2 solder lugs
