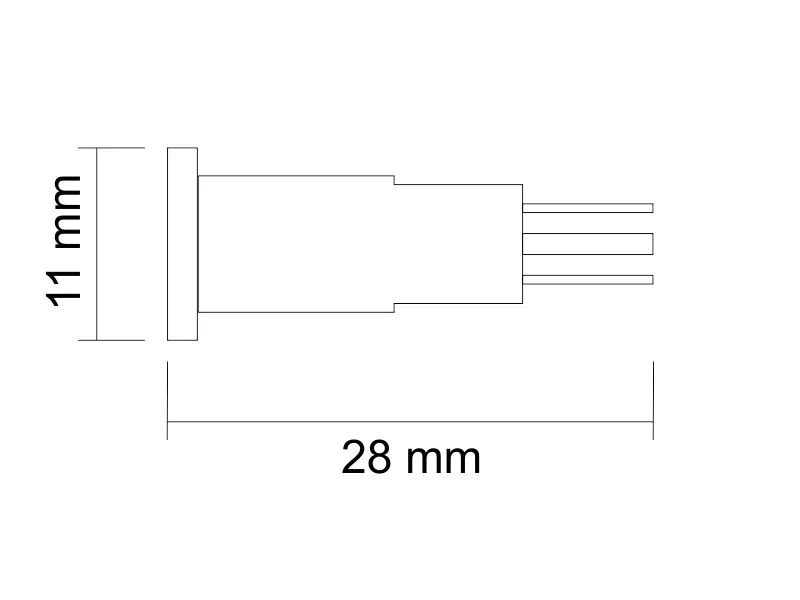

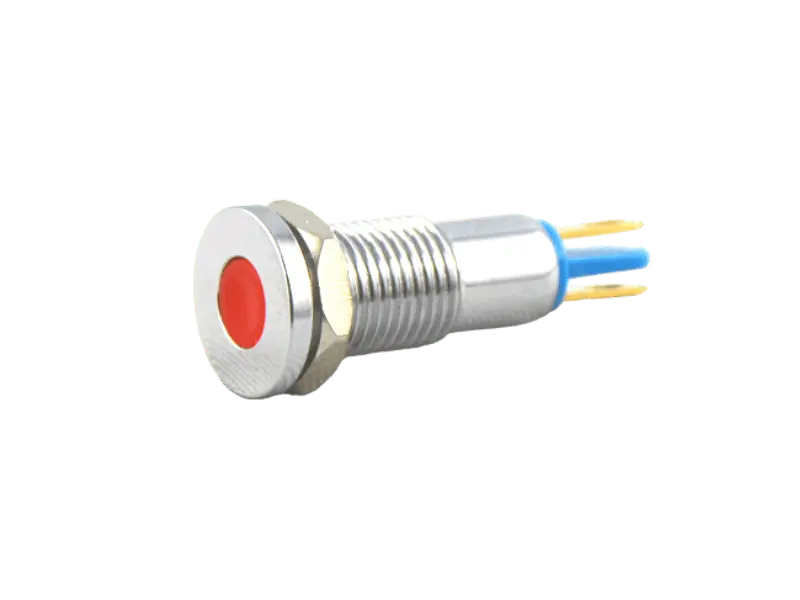

LED Signal lamp, 6V, red

• Type: Alpha Rotary Switch
• Version: 4 pole / 3 positions, non-Shorting
• Shaft lenght: 19 mm
• Rating: 0.3 A / 125 V/AC
• Contact resistance: max. 50 mΩ
• Insulation resistance: min. 100 mΩ / 500 V/DC
• Termination Style: solder lugs
• Shaft: 6,3 mm, D-Shaft
• Drill Ø: 8,9 mm

• Contacts: gold-plated
• Connection type: solder contacts
• Color: black
• Cable diameter: 7 mm
• Housing: steel

• Type: Chickenhead, Mini
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 22.75 x 18.7 mm
• Mounting: Set-Screw

• Type: Pointer Knob "Classic Fluted"
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 20 x 11,5 mm
• Mounting: Set-Screw

• Type: Pointer Knob "Classic Fluted"
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 33 x 16 mm
• Mounting: Set-Screw

4 tubes, matched as quad

JJ 6V6 Double Mica double-layered mica in the upper part of the tube. This stabilizes the tube system and significantly reduces possible vibrations that can occur due to heavy mechanical stress. This version of the JJ 6V6 was specifically designed for use in combo amplifiers.

The JJ6V6 is a beam power pentode with octal base and a maximum plate dissipation of 14W. It has fat low end and full mid tones with very good tone separation and a smooth, clean high end - in general, a very balanced tone.
Currently, the only new production 6V6 which is approved for up to 500V anode voltage in pentode operation.

Files:

• Datasheet

• Type: Noval Socket
• Version: Ceramic Chassis mount
•   w/ mounting bracket Gold
• Termination Style: solder lugs Gold
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84,
•   EZ81, EL844 etc.

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M7 (6,8 mm)
• Termination: Solder lugs
• Dimension: 16 mm

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M7 (6,8 mm)
• Termination: Solder lugs
• Dimension: 16 mm
