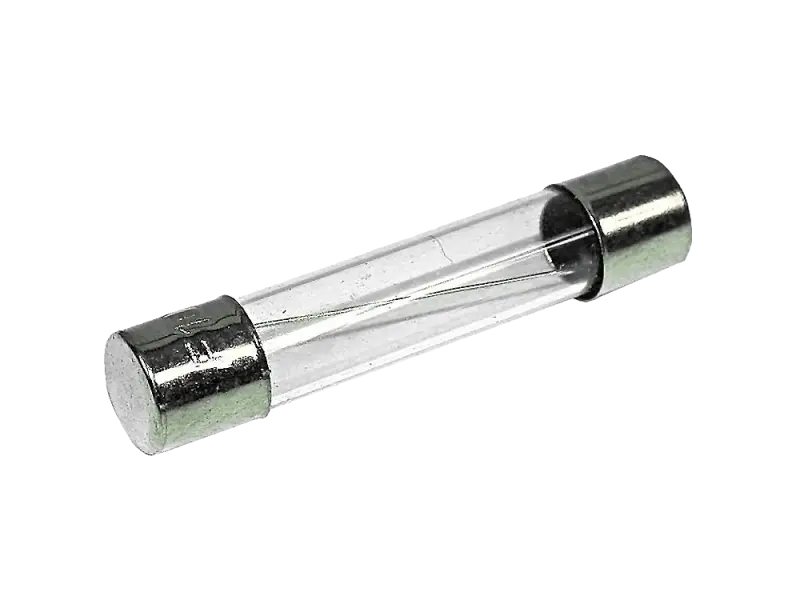

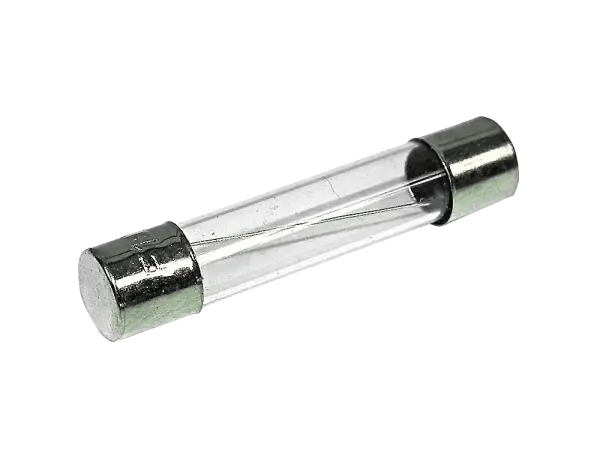

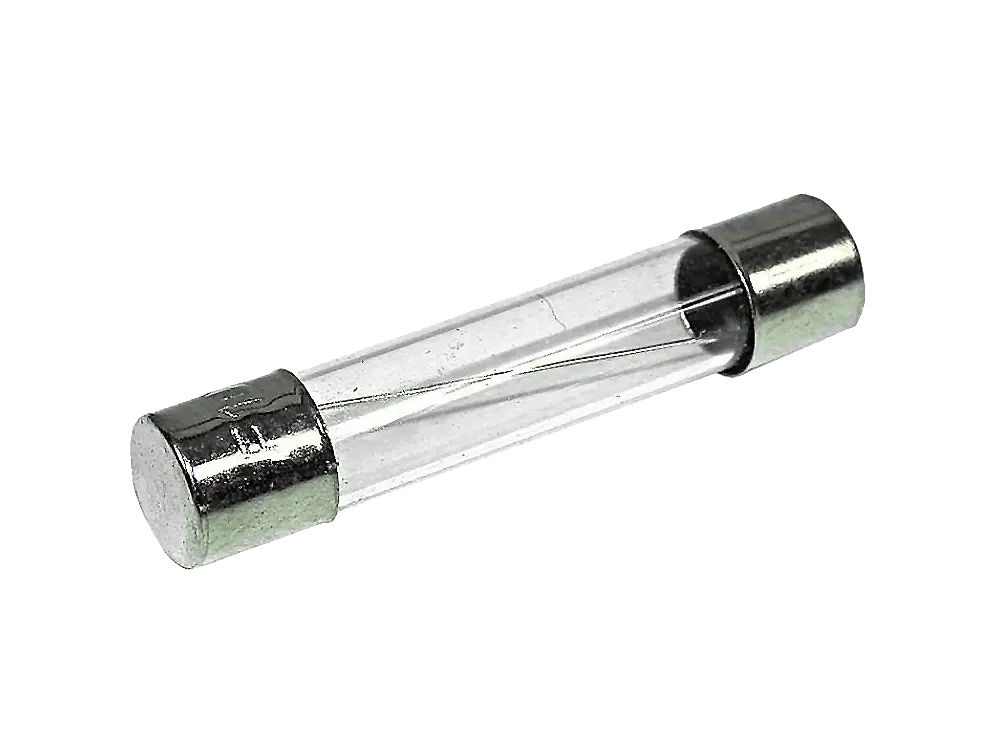

US Fuse 0,5 A slow blow, Pack of 10

The 12” ET65™ speakers has big and creamy lows blend with tight midrange and sparkling highs for some of the best tones ever created! This speaker is for classic rock, country, and blues. Upgrade from your Celestion™ G12-65.

Unit Weight:  7.5 pounds

Thiele-Small Parameters

• Resonant Frequency (Fs): 98.69 Hz
• DC Resistance (Re): 8.05 Ohm
• Coil Inductance (Le): 0.35 mH
• Mechanical Q (Qms): 5.38
• Electromagnetic Q (Qes): 1.10
• Total Q (Qts): 0.91
• Compliance Equiv. Vol. (Vas): 16.75 cu ft
• Mech. Compliance of Susp. (Cms): 0.09 mm/N
• BL Product (BL): 11.58 T-M
• Diaphragm Mass Inc. Airload (Mms): 29.51 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.45 db

1/4" stereo jack, switched, with chrome ferrule and standard solder lugs
Mounting nut included

• Wide body and extremely durable contacts
• Mates with all stereo A-gauge plugs acc. EIA RS-453 standard

Files:

• Datasheet

Custom Shop Faceplate, Transply, laser engraved

• Max. Width: 600 mm
• Material:
  • 1,5 mm Transply all Colors starting with #C
  • 0,8 mm Transply all Colors starting with #D
• Working area: see option list
• Colors: see option list
• Engraving: Yes
• Cutting: Yes
• Resolution: max. 500 dpi
• Machining: Laser

Important:

• We will not produce faceplate which contain copyright-protected elements like logos or names !
• Minimum size of an plate: 5 x 5 cm
• Smaller objects should be connected to larger objects otherwise they can get lost. Example: connect the i-dot with the rest of the lettering for a cut-out lettering.
• Minimum distance between two blades: 3 mm
• Bitmaps and Inkscape: If possible DO NOT use bitmaps, because this causes many problems: the PDF file could be corrupt or the quality of the finished product is bad etc.. Bitmaps should always be converted to vector graphics before they are used in the layout. There are numerous online converters which convert bitmaps (PNG, JPG etc.) to SVG. Use them, convert the Bitmap and avoid problems.

How does it work ?

First of all you should read the documents and infos on the TT LaserShop Pages !

a) Select the required size, material and color combination

Hint: Several objects can be placed on a work surface, so cost-efficient material processing is possible. Example: two plates with a size of 55 x 490 mm (front and back plate) can be placed on a work space H2 with the overall size of 150 x 600 mm and can be ordered together. The configurations and optimizations have to be present in the submitted data.

b) Submit the order through the online shop.

c) Prepare the data according to our specifications. You can UPLOAD the finished data below on the page or sent it to us after completion of the order by e-mail (info at tube-town.de).

d) That's it. The rest is our job.


Note on the Parameter "Plates per Sheet"
The number of plates or logos per sheet. The more plates are on one sheet the longer the runtime is. We can make a maximum of 40 plates per sheet.

Note on "Logo-Option"
If your data contains large areas which need to be engraved (mostly seen on logos or plates for stomp-boxes) then you should check this option then we will engrave the plates twice to make sure that the quality is a as good as possible.
In principle, however, it should be avoided to use large, monochrome areas because one will always see small lines from the laser engraver.


 !! IMPORTANT: WHEN CREATING THE PDF FILE, MAKE SURE TO CONVERT THE FONTS TO CURVES. !!
Overview of the requirements click here

Custom Shop Faceplate, Transply, laser engraved

• Max Width: 720 mm
• Material: 1,5 mm Transply
• Working area: see option list
• Colors: see option list
• Engraving: Yes
• Cutting: Yes
• Resolution: max. 500 dpi
• Machining: Laser

Important:

• We will not produce faceplate which contain copyright-protected elements like logos or names !
• Minimum size of an plate: 5 x 5 cm
• Smaller objects should be connected to larger objects otherwise they can get lost. Example: connect the i-dot with the rest of the lettering for a cut-out lettering.
• Minimum distance between two blades: 3 mm
• Bitmaps and Inkscape: If possible DO NOT use bitmaps, because this causes many problems: the PDF file could be corrupt or the quality of the finished product is bad etc.. Bitmaps should always be converted to vector graphics before they are used in the layout. There are numerous online converters which convert bitmaps (PNG, JPG etc.) to SVG. Use them, convert the Bitmap and avoid problems.

How does it work ?

First of all you should read the documents and infos on the TT LaserShop Pages !

a) Select the required size, material and color combination

Hint: Several objects can be placed on a work surface, so cost-efficient material processing is possible. Example: two plates with a size of 55 x 490 mm (front and back plate) can be placed on a work space H2 with the overall size of 150 x 600 mm and can be ordered together. The configurations and optimizations have to be present in the submitted data.

b) Submit the order through the online shop.

c) Prepare the data according to our specifications. You can UPLOAD the finished data below on the page or sent it to us after completion of the order by e-mail (info at tube-town.de).

d) That's it. The rest is our job.


Note on the Parameter "Plates per Sheet"
The number of plates or logos per sheet. The more plates are on one sheet the longer the runtime is. We can make a maximum of 40 plates per sheet.

Note on "Logo-Option"
If your data contains large areas which need to be engraved (mostly seen on logos or plates for stomp-boxes) then you should check this option then we will engrave the plates twice to make sure that the quality is a as good as possible.
In principle, however, it should be avoided to use large, monochrome areas because one will always see small lines from the laser engraver.


 !! IMPORTANT: WHEN CREATING THE PDF FILE, MAKE SURE TO CONVERT THE FONTS TO CURVES. !!
Overview of the requirements click here

Vacuum Tube Damper made of silicon, helps to reduce noise and rattle of vacuum tubes. But it will not turn a bad tube into a good tube.
If a higher level of damping is needed, than use more than one damper per tube.

• Inner diameter ca. 22 mm
• Can not be used with JJ 12AX7 and other JJ preamp tubes with similar diameter and JJ EL84 and JJ EL844
• Price per damper

BEFORE ordering check the exact outer diameter of the vacuum tubes and compare it with the diameter of the damper to make sure that the damper fits.

Vacuum Tube Damper made of silicon, helps to reduce noise and rattle of vacuum tubes. But it will not turn a bad tube into a good tube.
If a higher level of damping is needed, than use more than one damper per tube.

• Inner diameter ca. 28 mm
• Price per damper

BEFORE ordering check the exact outer diameter of the vacuum tubes and compare it with the diameter of the damper to make sure that the damper fits.

Vacuum Tube Damper made of silicon, helps to reduce noise and rattle of vacuum tubes. But it will not turn a bad tube into a good tube.
If a higher level of damping is needed, than use more than one damper per tube.

• Inner diameter ca. 34 mm
• Price per damper

BEFORE ordering check the exact outer diameter of the vacuum tubes and compare it with the diameter of the damper to make sure that the damper fits.

Vacuum Tube Damper made of silicon, helps to reduce noise and rattle of vacuum tubes. But it will not turn a bad tube into a good tube.
If a higher level of damping is needed, than use more than one damper per tube.

• Inner diameter ca. 32 mm
• Use tt-da15 for EH EL34
• Price per damper

BEFORE ordering check the exact outer diameter of the vacuum tubes and compare it with the diameter of the damper to make sure that the damper fits.

Chickenhead knob, raised

• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size 30,5 x 16 mm
• Mounting: Set-Screw

• Tube-Town Turrets Type 42
• for 3 mm Boards
• Gold plated

Carbonfilm Resistor
Low noise, small size, high power rating
Power: 1 Watt
Voltag: 500 V working / 1000 V overload
Axial Leads
-55° C - 155° C
12 * 5 mm
RoHS

Octal Socket Belton VTB8

• High quality Micalex socket
• Glassfiber filled PPS black body
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: EL34, E34L, 6L6, 6V6, 6550, KT66/77/88 etc.

Type: Noval Socket Belton VT9-ST-2

• Version: High quality Micalex socket
• Glassfiber filled PPS black body
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.
