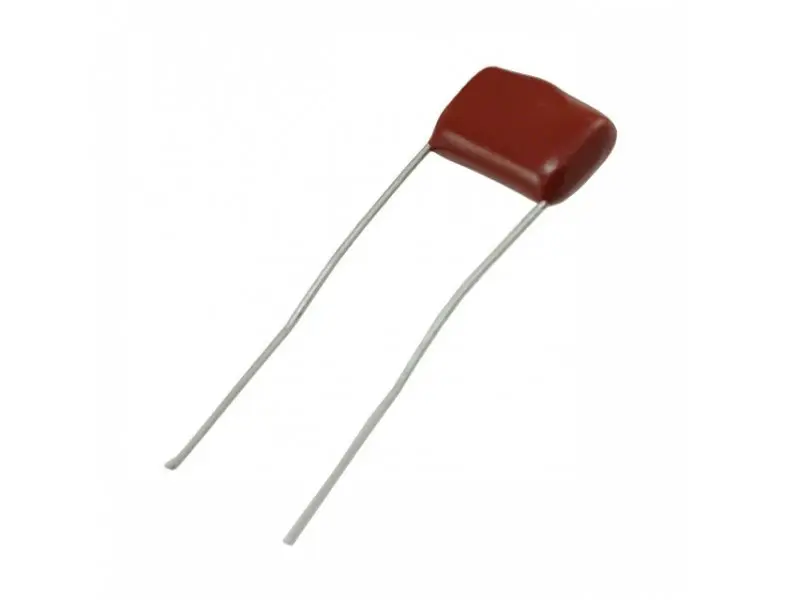

CD DME Polyester Film 0,22 µF / 630 V

• Type: Film capacitor
• Dielectric: polyethylene terephthalate foil
• Capacitance: 0,1 µF
• Voltage Rating: 250 VDC
• Tolerance: -20 % / +20 %
• IEC climate category: 55/100/56
• Operating Temperature Range: - 55°C / + 100 °C
• Dimensions: 5 mm x 10,5 mm x 10,3 mm
• Termination Style: radial
• Grid: 7,5

• Type: Film capacitor
• Dielectric: polyethylene terephthalate foil
• Capacitance: 0,022 µF
• Voltage Rating: 250 VDC
• Tolerance: -20 % / +20 %
• IEC climate category: 55/100/56
• Operating Temperature Range: - 55°C / + 100 °C
• Dimensions: 4 mm x 9 mm x 13 mm
• Termination Style: radial
• Grid: 10

• Type: Film capacitor
• Dielectric: polypropylene film
• Coating: plastic foil, metalized on both sides
• Capacitance: 0,047 µF
• Voltage Rating: 400 VDC / 250 VAC
• Tolerance: ±10 %
• IEC climate category: 55/100/56
• Operating Temperature Range: - 55°C / + 100 °C
• Dimensions: 5 x 11 x 18 mm
• Termination Style: radial
• Grid: 15

• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range:c- 55°C / + 125 °C
• Termination Style: radial

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 220 µF
• Voltage Rating: 350 V
• Tolerance: - 10%+30%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 25 mm x 38 mm
• Termination Style: axial

4 tubes, matched as quad

EL34 II has fuller low mids and low end but does not lose headroom in the high end. Stronger than regular JJ EL34 but not as aggressive as the JJ E34L.

• Ua = 250 V
• Ug3 = 0 V
• Ug2 = 265 V
• Ug1 = -13,5 V
• Ia = 100 mA
• Ig2 = 14,9 mA
• S = 11 mA/V
• Ri = 15 kΩ
• μg2/g1 = 11

• Ua0 = 2000 V
• Ua = 800 V
• Wa(max) = 25 W
• Ug20 = 800 V
• Ug2 = 450 V
• Wg2(max) = 8 W
• Ik = 150 mA
• Uk/f = 100 V
• Rk/f = 20 kΩ

Files:

• Datasheet

4 tubes, matched as quad

The 6L6WXT+ features larger plate dimensions and 20 percent higher output than the Sovtek 5881WXT. Extremely low noise and a excellent detailed and harmonic sound, plenty of power and very easy to handle - even while using in "hot" setups.
