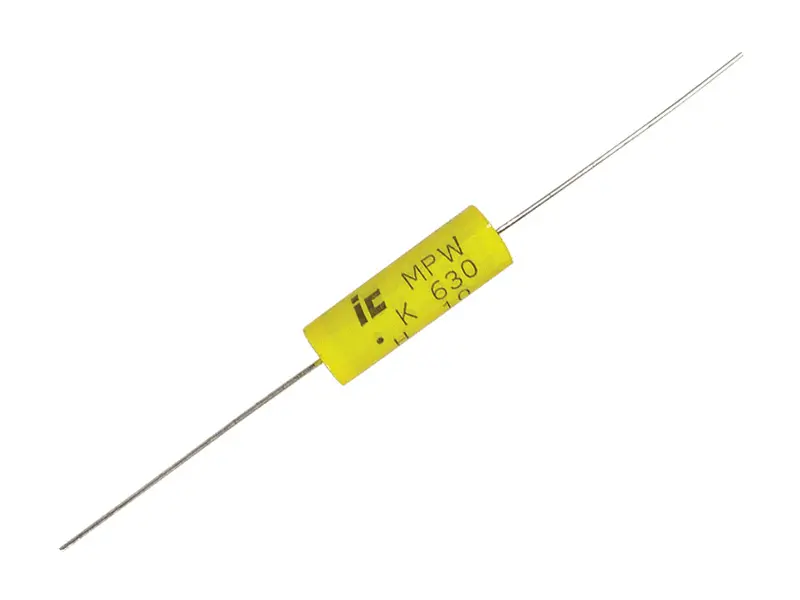

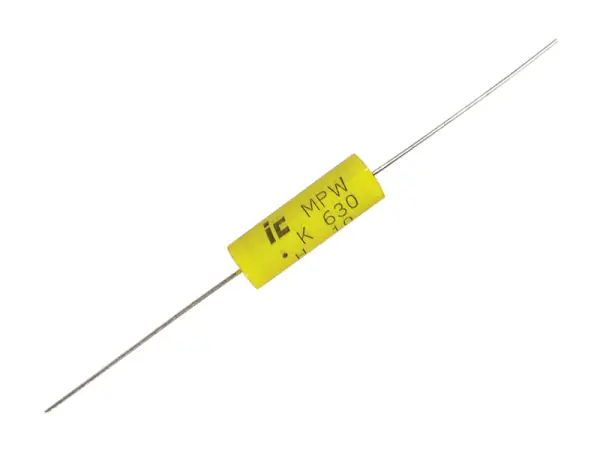

Polypropylene Capacitor, axial, 630V, 0.68uF

Description

MPW axial leaded metallized polypropylene film capacitors
Self Healing
Low ESR
Tolerance: +10% @ 1 kHz, 25°C
Peak, AC voltage (50/60 Hz): 630VDC / 250 VAC
Size: Ø 22 mm x 34 mm
Temperature: - 55° C / + 105° C
Dielectric: Polypropylene
Coating: Flame Retardant Polyester tape wrap (UL510) with epoxy end fill (UL94V0)
