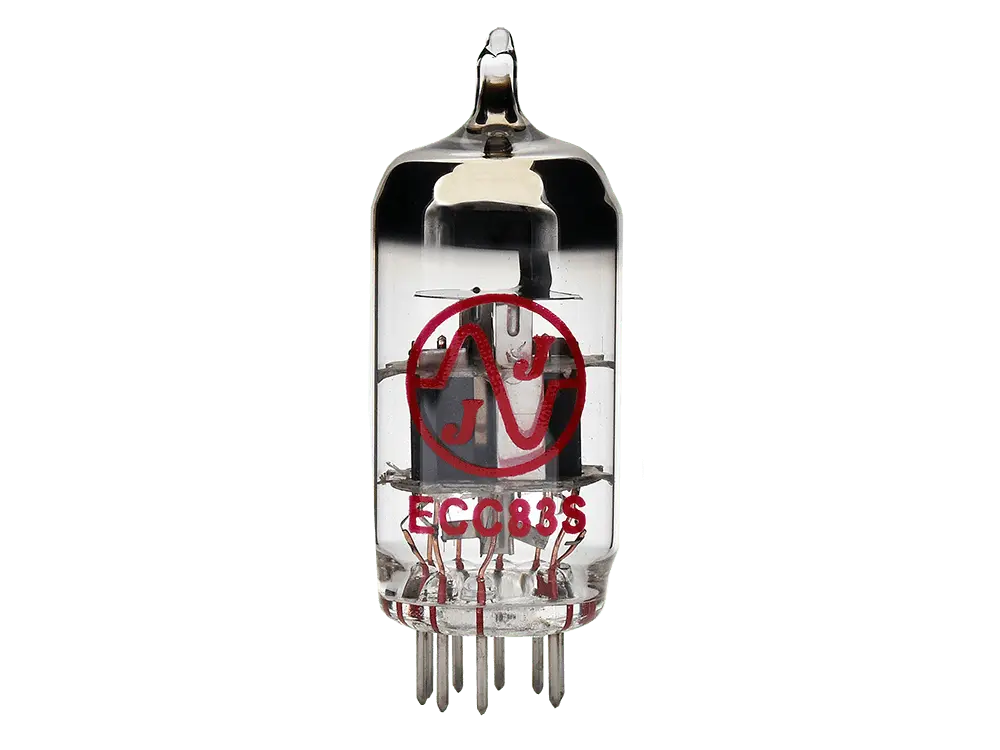

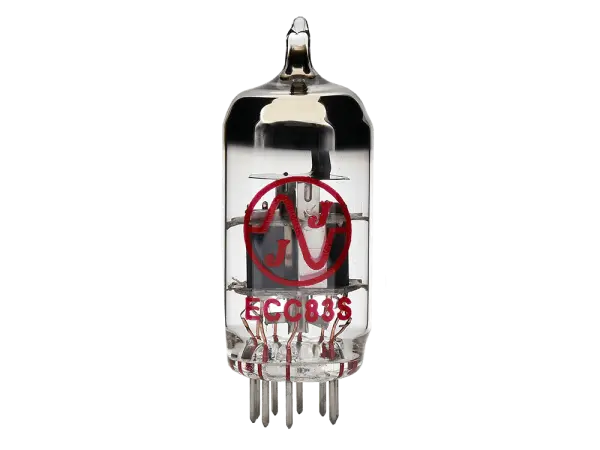

JJ 12AX7 / ECC83S Balanced

2 tubes, matched as pair

Premium power beam tetrode continuing in the Tung-Sol legacy. The ultimate in musical tone and smooth overdrive, STR delivers the sound that established Tung-Sol as the benchmark of quality.
Faithful re-issue of the original Tung-Sol STR, built to the same “Special Tube Request” specs of amp manufacturers of the 60s.

Files

• Datasheet



Tube-Town 12AX7 / ECC83 Preamp-Tube

The TT12AX7 impresses with its fine and detailed reproduction of the highs, which is maintained even at high amplification levels. Due to a higher H3 part, the TT12AX7 sounds significantly cleaner than many other 12AX7/ECC83 tubes, which makes the bass range appear much tighter. We therefore especially recommend this tube for styles such as clean, crunch, and metal, where high amplification and clear transparency are required.

Electrical Characteristics

• Heater voltage (Uf): 6.3V or 12.6V
• Heater current (If): 300mA at 6.3V, 150mA at 12.6V
• Anode voltage (Ua): Maximum 300V
• Grid voltages (Ug1): -2V (typical)
• Grid voltages: -50V to 0V
• Anode current (Ia): 1.2mA (typical)
• Anode power dissipation: Maximum 1W per triode
• Anode resistance (ra): 62.5kΩ
• Amplification factor (μ): 100
• Transconductance (S): 1.6mA/V
• Input capacitance (Cin): 1.6pF
• Output capacitance (Cout): 1.6pF

Mechanical Characteristics

• Socket: B9A (Noval)
• Number of pins: 9

Pin Configuration

• 1 Anode (Triode 1)
• 2 Grid (Triode 1)
• 3 Cathode (Triode 1)
• 4 Heater (f)
• 5 Heater (f)
• 6 Anode (Triode 2)
• 7 Grid (Triode 2)
• 8 Cathode (Triode 2)
• 9 Center Heater (f)

Application Notes

• Heater operation: The tube can be operated with 6.3V or 12.6V, depending on the circuit design.
• Grid resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable functionality.
• Coupling capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high-frequency interference.

• Made in Russia
• Long Plate

All JJ preamp tubes are selected within a close tolerance and handtested for best sound and quality. Furthermore all pins are gold plated to achieve best electrical contact.
What about the sound? It is still the famous and well known JJ brownsound - warm and smooth.

Files:

• Datasheet

Speaker-Cable

• Length: 1 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grau (#so415-0056)

• Type: Electrolytic can capacitor
• Capacitance: 47 µF
• Voltage Rating: 450 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 25°C / + 105 °C
• Dimensions: Ø 16 mm x 25 mm
• Termination Style: radial
• Grid: 7,5

Images are for reference only. See Product Specifications

• Type: Electrolytic can capacitor
• Capacitance: 22 µF
• Voltage Rating: 450 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 16 mm x 32 mm
• Termination Style: radial
• Grid: 7,5

Images are for reference only. See Product Specifications

Metalfilm Resistor
Great for amps and effects, low noise, small size, high power rating

Spezification:

• Power: 0,5 Watt
• Voltag: 350 V working / 700 V overload
• Axial Leads
• -55° C - 155° C
• 9,4 * 3,2 mm
• 1,0 %
• RoHS

JJ EL84 #07 - Standard plus

• Slightly hotter than the #06 selection
• Selected and recommended for VOX AC 30 / 15  and similar amps.
• Price for one tube.

FAQ: If I order two or more of these tubes, are they all "the same"?
Yes, the tubes are all "matched" and selected for the in the description mentioned amplifiers.
FAQ: Can I replace the tubes myself or are adjustments needed?
Adjustments are not possible on the listed amplifier (unless a bias potentiometer has been added afterwards). The replacement can therefore be done without adjustments.

• Type: Metalized Polyester Film Capacitors
• Voltage Rating: 400 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial

Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

Specifications:

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

Color can differ from the picture.

Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

Specifications:

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years
