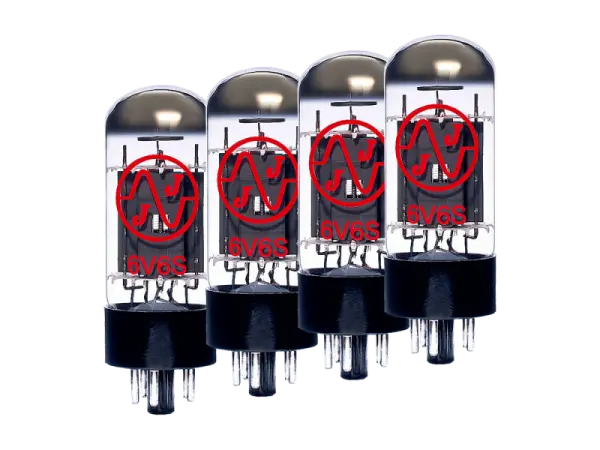

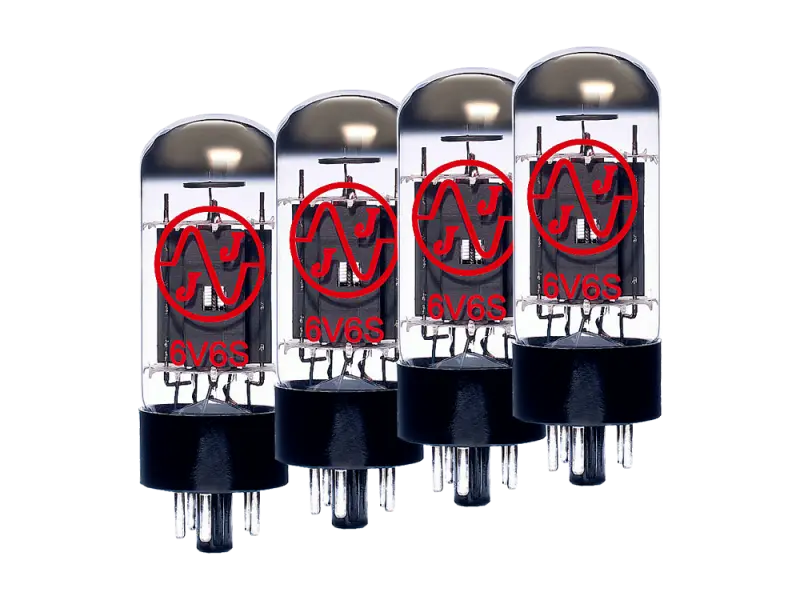

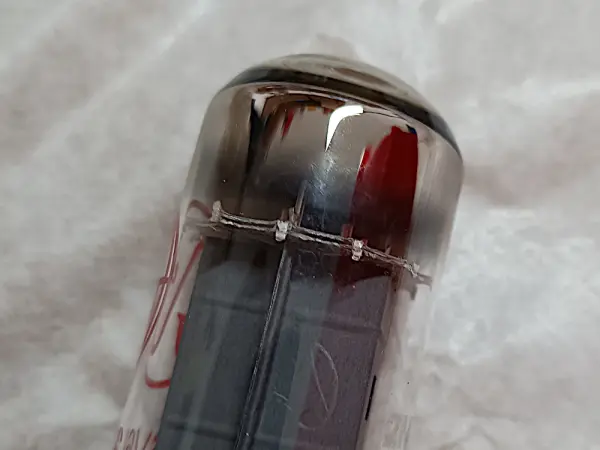

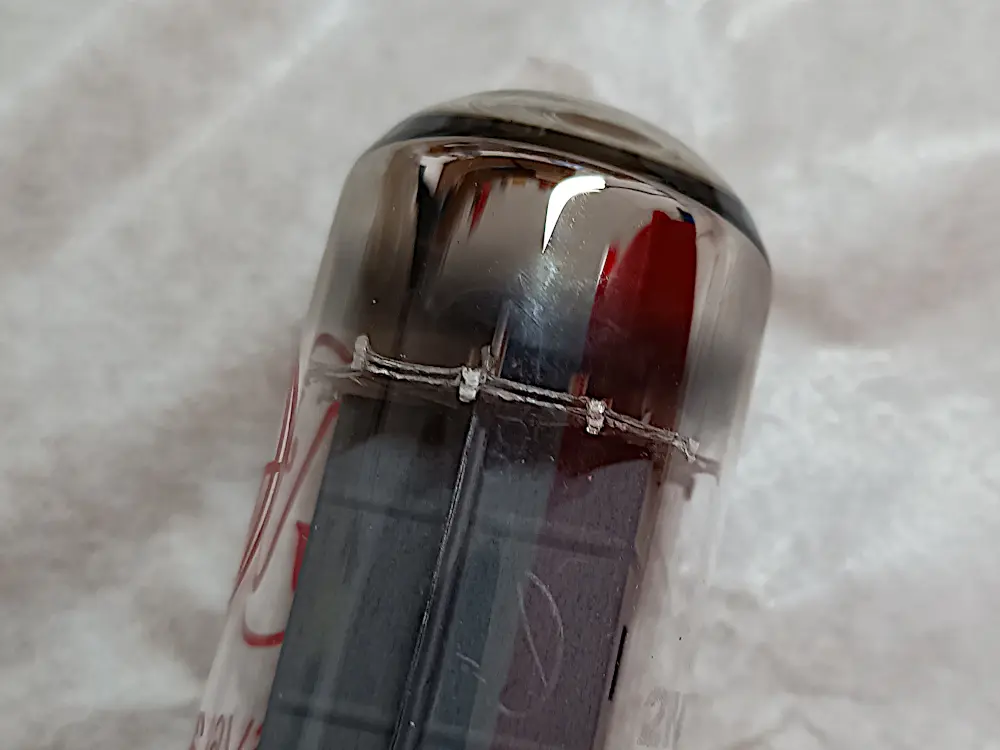

JJ 6V6 Red Labe - QUAD - Double Mica

Custom Shop Faceplate, Transply, laser engraved

• Max. Width: 600 mm
• Material:
  • 1,5 mm Transply all Colors starting with #C
  • 0,8 mm Transply all Colors starting with #D
• Working area: see option list
• Colors: see option list
• Engraving: Yes
• Cutting: Yes
• Resolution: max. 500 dpi
• Machining: Laser

Important:

• We will not produce faceplate which contain copyright-protected elements like logos or names !
• Minimum size of an plate: 5 x 5 cm
• Smaller objects should be connected to larger objects otherwise they can get lost. Example: connect the i-dot with the rest of the lettering for a cut-out lettering.
• Minimum distance between two blades: 3 mm
• Bitmaps and Inkscape: If possible DO NOT use bitmaps, because this causes many problems: the PDF file could be corrupt or the quality of the finished product is bad etc.. Bitmaps should always be converted to vector graphics before they are used in the layout. There are numerous online converters which convert bitmaps (PNG, JPG etc.) to SVG. Use them, convert the Bitmap and avoid problems.

How does it work ?

First of all you should read the documents and infos on the TT LaserShop Pages !

a) Select the required size, material and color combination

Hint: Several objects can be placed on a work surface, so cost-efficient material processing is possible. Example: two plates with a size of 55 x 490 mm (front and back plate) can be placed on a work space H2 with the overall size of 150 x 600 mm and can be ordered together. The configurations and optimizations have to be present in the submitted data.

b) Submit the order through the online shop.

c) Prepare the data according to our specifications. You can UPLOAD the finished data below on the page or sent it to us after completion of the order by e-mail (info at tube-town.de).

d) That's it. The rest is our job.


Note on the Parameter "Plates per Sheet"
The number of plates or logos per sheet. The more plates are on one sheet the longer the runtime is. We can make a maximum of 40 plates per sheet.

Note on "Logo-Option"
If your data contains large areas which need to be engraved (mostly seen on logos or plates for stomp-boxes) then you should check this option then we will engrave the plates twice to make sure that the quality is a as good as possible.
In principle, however, it should be avoided to use large, monochrome areas because one will always see small lines from the laser engraver.


 !! IMPORTANT: WHEN CREATING THE PDF FILE, MAKE SURE TO CONVERT THE FONTS TO CURVES. !!
Overview of the requirements click here

Xicon Ultra-Mini Audio-Transformers

• Typ / Type: 42TM018-RC
• Impedanz / Impedance: 10 k CT - 10 k CT
• Widerstand / Resistance: 550 : 550
• Kern / Core: EI19
• Windungen / Turns: 1 : 1

Files:

• Datasheet

Headroom, clarity, balanced response, power...
These terms have become synonymous with a vintage American design that is known and sought the world over.  WGS now pays tribute to this classic with our WGS12L. However like all of our designs, we didn't set out to make a clone.  With this model we paid extra special attention to the details, producing a speaker that delivers that same even response without sounding sterile and lifeless.  Boasting a cast frame, 2.5" voice coil and a 200 watt rating, and clocking in at 18 pounds, this beast is loaded for bear.  As a welcome addition to the WGS fleet, this speaker is definitely our battleship.

Note from the boss: "We compared both the EVM 12L and the WGS 12L in an 806 cabinet and it was almost impossible to tell them apart. The WGS 12L is a great alternative to the original and we recommend it without reservation as a perfect replacement for the EVM 12L."

Thiele-Small Parameters

• Resonant Frequency (Fs): 49.58 Hz
• DC Resistance (Re): 5.84 Ohm
• Coil Inductance (Le): 0.35 mH
• Mechanical Q (Qms): 7.41
• Electromagnetic Q (Qes): 0.25
• Total Q (Qts): 0.24
• Compliance Equiv. Vol. (Vas): 50.51 cu ft
• Mech. Compliance of Susp. (Cms): 0.27 mm/N
• BL Product (BL): 16.74 T-M
• Diaphragm Mass Inc. Airload (Mms): 38.77 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.67 db

Round dish / ferrule for 6.3 mm jack

• metal
• black powder coated
• incl. 3 screws

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (pe-c1824n)
• Steel nickel plated
• High Quality
• 16 x Screws with extra flat head, silver

Type: Noval Socket Belton VT9-ST-2

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.

• 6,3 mm jack
• Same as Switchcraft 12A but with longer thread
• mono, switched
• Installation diameter: 10 mm

Files:

• Datasheet
