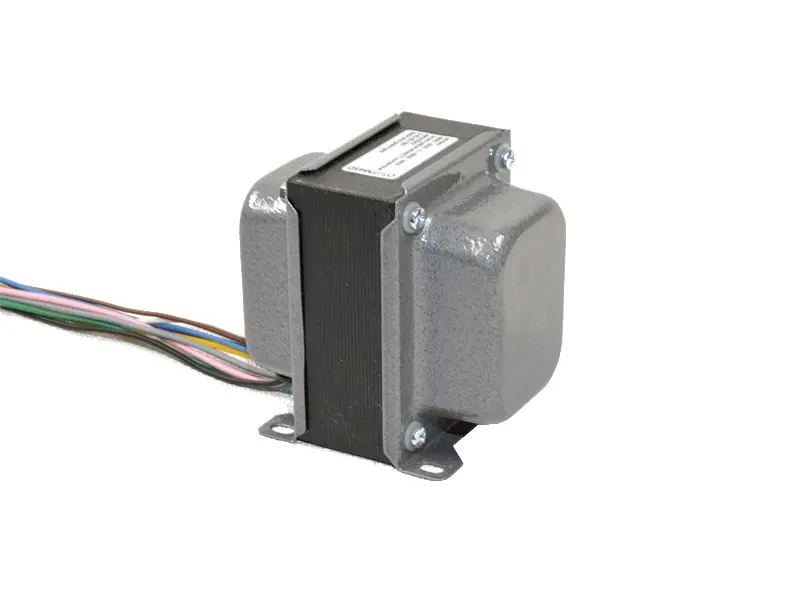

Tube-Town Outputtransformer, Dual-Primary for Marshall JTM45
Tube-Town Outputtransformer, Dual-Primary for Marshall JTM45
Tube-Town Outputtransformer, Dual-Primary for Marshall JTM45

Tube-Town Outputtransformer, Dual-Primary for Marshall JTM45

Product No.:
tt-otjtm45D
In stock. Delivery time depends on the destination country* In stock. Delivery time depends on the destination country*
RoHs:
conform
Weight:
2.7 kg per piece
115,00 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description

Output Transformer, replacement for JTM45 with EL34 / 5881 and KT66

  • Pri1: 8 kOhm / CT
  • Pri2: 6,6 kOhm / CT
  • Sec: 4-8-16 Ohm
  • Power: 70 Watt
  • Made in Europe
  • Inductance Primary 8 kOhm: 660 Henry (@240V,50Hz open circuit)
  • Inductance Primary 6,6 kOhm: 540 Henry (@240V,50Hz open circuit)
  • Minimum Reproducible Frequency at max power (70W): 20Hz/-3dB
  • Re(a-a) 8 kOhm: 185ohm +/-5%
  • Re(a-a) 6,6 kOhm: 165ohm +/-5%

Files:

Manufacturer
Herstellerinformationen | Manufacturer Information

Tube-Town GmbH
Rumbergring 37
D-66969 Lemberg
eMail: info@tube-town.de
