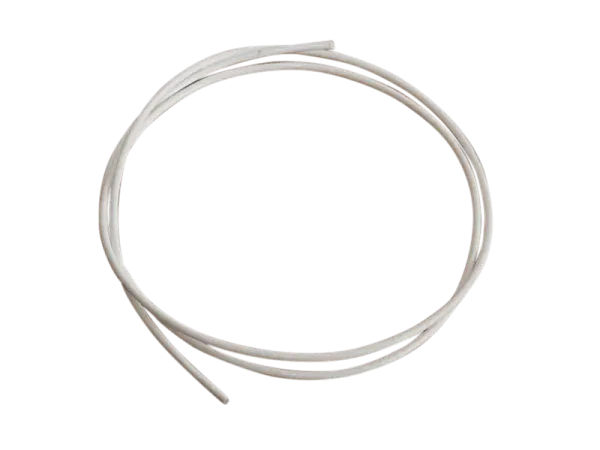

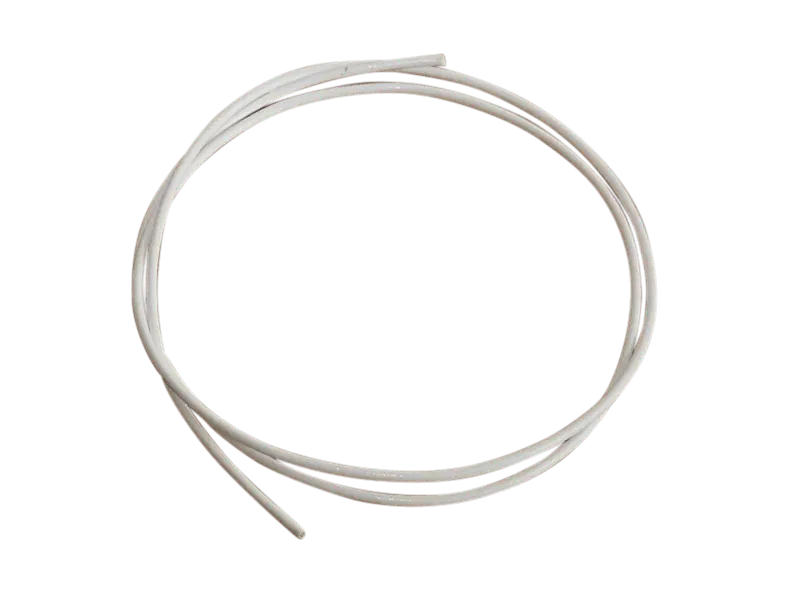

Coaxial RF cables with Teflon insulation RG 187 - 1 m

Variable voltage control for voltages up to 600 V

Possible applications:
- G2 Control
- Power adjustment

Please see the >>TT VoCoM Projekt-Seite zu finden.

Der Bausatz beinhaltet alle Teile die zum Bau benötigt werden wie Widerstände, Dioden, Leistungstransistor, Kühlkörper, Potentiometer, Schraube, Mutter, Leitung, Beschriftungsschild.

ACHTUNG HOCHSPANNUNG:
Dieser Bausatz ist nichts für Anfänger. Wer nicht weis, was er damit tut, sollte diesen Bausatz auch nicht kaufen !

">>TT VoCoM project page for more infos

Kit includes:
all parts to build this VVC. Resistors, Heatsink, Wires, Potentiometer, PCB, Label, Screws, Nuts.

WARNING: HIGH VOLTAGE !!
This kit is not for beginners. If you do not know what you are doing than you should NOT buy this kit!

Metaloxide film resistor

• Nominal Power: 1 Watt
• Max. cont. Working Voltage:: 500 V RMS
• Tolerance: +/- 5%
• Temperature range: -55° C...200° C
• Flame retardant
• Small Size
• Size: 9,7 x 2,4 mm

Tube-Shield for Belton socket VT9-ST-C

• Color: silver
• Length: 50 mm
• Including Base and Shield

This tube is recommend to tame the gain of an amp and make it sound "sweeter". The 5751 has only a gain of 70 instead of 100 like the typical 12AX7/ECC83 tube type and can be used as a drop in replacement for 12AX7 / ECC83 tubes.

Files:

• Datasheet



• Output Transformer 125A35A / 022905 Single Ended
• for Champ, Vibro-Champ, Bronco
• Pri: 5000 / 8000 Ohm
• Sec: 3.2, 8, 16 Ohm
• Power: 5 Watt

Files:

• Datasheet

• Type: Tubular Metalized Polyester Film Capacitors
• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial
• • Non-inductive
  • Self healing windings.
  • Similar to the Mallorys 150-Series

• Type: LIH/125 Stranded wire - halogen free
• Conductor: stranded copper - tinned
• Conductor strands: 16 x 0.2 mm
• Insulation: TPE-S (12Y), flammable
• Cross sectional area: 0,5 mm²
• Outer Ø: 1.6 mm
• Temperature Range
• static / dynamic: -40 to +125°C / -25 to +125°C
• Operating voltage: 900V
• Insulation resistance: min. 200MΩ x km at +20°C

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

Metal Oxide Film Resistors

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

• Type: Tubular Metalized Polyester Film Capacitors
• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial
• • Non-inductive
  • Self healing windings.
  • Similar to the Mallorys 150-Series
