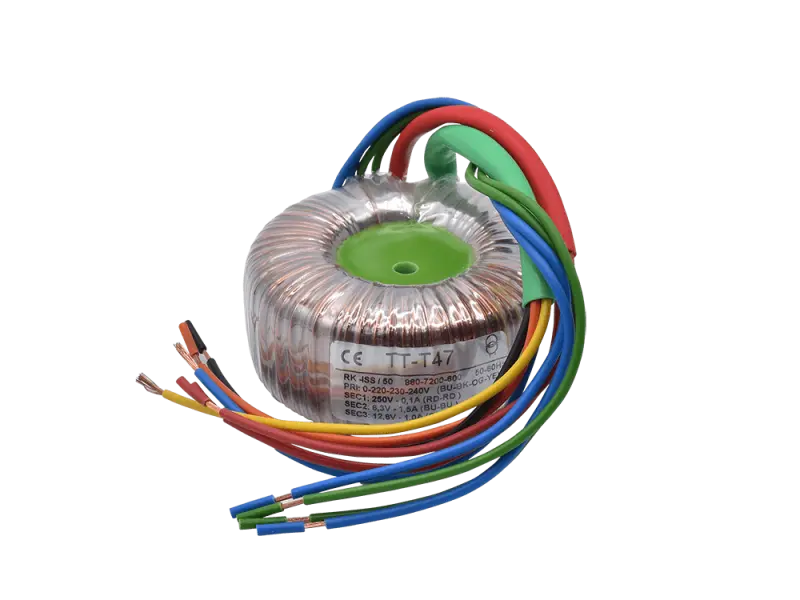

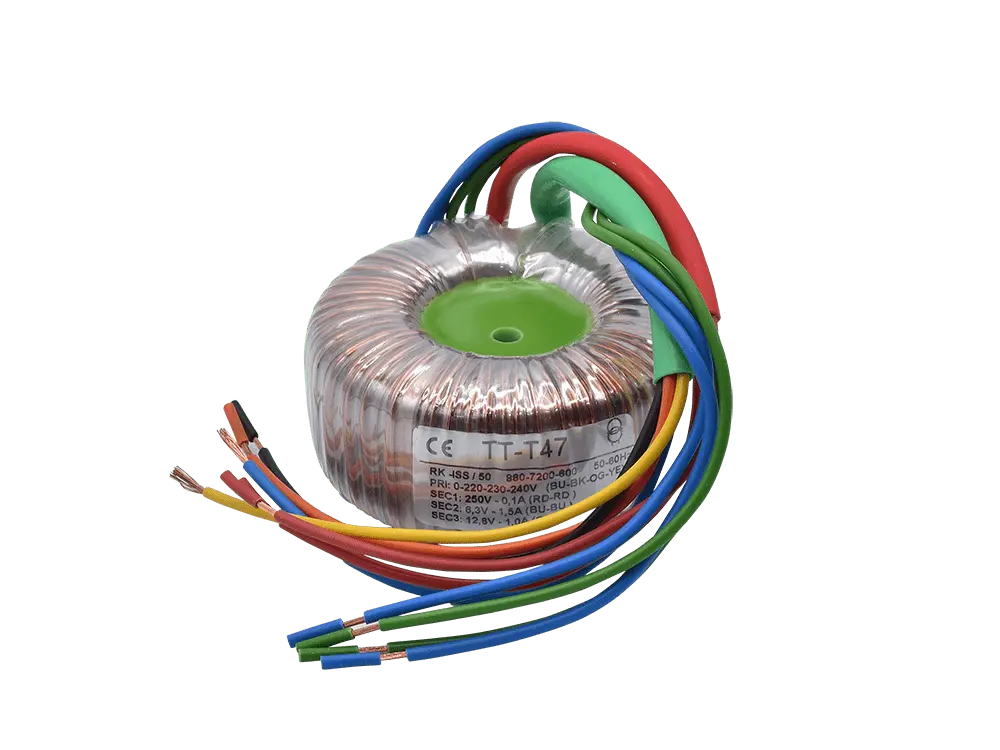

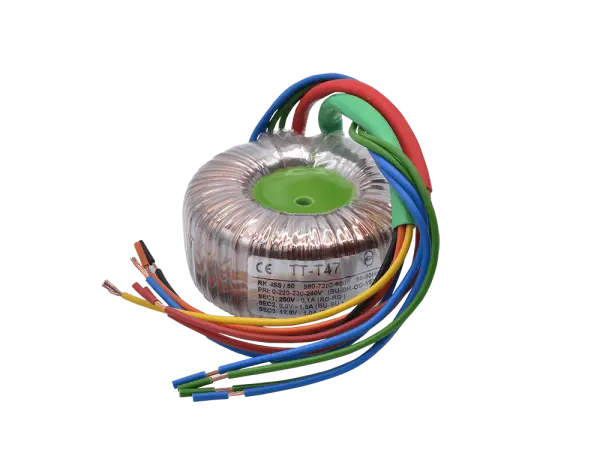

Toroidal 47VA
Toroidal 47VA
Toroidal 47VA

Toroidal 47VA

Product No.:
tt-t47
In stock for immediate delivery. Delivery time depends on the destination country* In stock for immediate delivery. Delivery time depends on the destination country*
RoHs:
conform
Weight:
0.73 kg per piece
44,90 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description
  • Pri: 0-220-230-240 V (blue-black-orange-yellow)
  • Sec 1:  250 V / 0,1 A (red)
  • Sec 2: 6,3 V / 1,5 A (blue)
  • Sec 3: 12,6 V / 1 A (green)
  • Size: d = 80 mm, h = 35 mm
  • ta 40 EN 61558
Manufacturer
Herstellerinformationen | Manufacturer Information

Tube-Town GmbH
Rumbergring 37
D-66969 Lemberg
eMail: info@tube-town.de
Customer reviews (2)

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

  • André, 02/19/2014
    Very usefull allround transformer for preamps with remarkable quality for the price...highly recommended!
