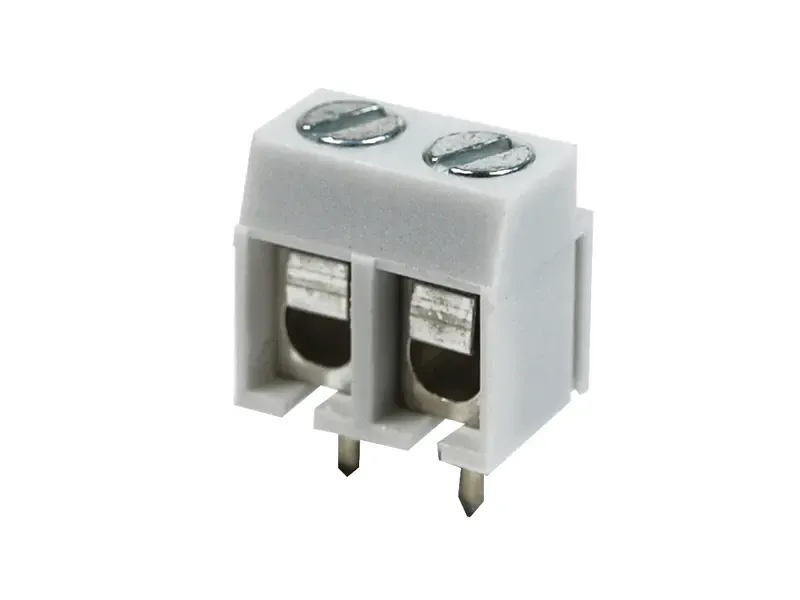

Screw Terminal for PCB, 2-pole

• Double Relais PCB MAXI
• Size: 54 x 45  mm
• For the use with two Finder Relais 43.41.7  (or relais with similar pin layout).

• Tube-Town EZ-Board 5E3
• Size: 230 x 71 mm
• Material: 2 mm FR, black
• Can be used as an eyelet board or can be equipped with turrets and used as turret board
• On-board connections already available
• Same board used for the TT-5E3 kits

• Tube-Town PCB Dual Bias Adjust, used in the YAH100 kit
• Size: 72 x 29,5 mm
• Material: 1,6 mm FR, black

• Single Relais PCB for channel switching etc..
• Size: 41 x 35 mm
• For the use with Finder Relais type 30.22.9xx  (or relais with similar pin layout).

• Größe: 51,7 x 29,2 mm
• Material: 1,6 mm FR, rot

• Rubber grommets for reverb tanks, package of four.
• Mounting Hole Diameter = 3/8"
• Outer Diameter = 1/2"

• Reverb Tank RCA cable
• ca. 48" (120 cm)
• Right-Angle plugs
• Replaces Fender Reverb-Tank RCA cable

• Signal wire LiYDY 1 x 0,14 mm², shielded
• Diameter Outside: ca. 2,6 mm
• Voltage Rating max: 50 / 75 V AC / DC
• Capacity: ca. 260 pF / m
• Temperature range: -10 bis +70 C°
• Conductor resistance: 40 Ohm / km @ 20 C°
• Test voltage: > 1 kHz
• IEC 60228/ VDE 0295
• 5 meter

• Power Rating: 0,125 W log
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M7 (6,8 mm)
• Termination: Solder lugs
• Dimension: 16 mm

• Power Rating: 0,125 W log
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M7 (6,8 mm)
• Termination: Solder lugs
• Dimension: 16 mm

• Pri: 0-220-230-240 V (blue-black-orange-yellow)
• Sec 1:  250 V / 0,1 A (red)
• Sec 2: 6,3 V / 1,5 A (blue)
• Sec 3: 12,6 V / 1 A (green)
• Size: d = 80 mm, h = 35 mm
• ta 40 EN 61558

Screw set for Torodial-Transformers

1 x Screw M5*40 mm
1 x Screw Lock Nut M5
2 x Washer M5

suitable for this TT Transformers:

tt-t30
tt-t50

• Type: Electrolytic can capacitor
• Capacitance: 47 µF
• Voltage Rating: 400 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 25°C / + 105 °C
• Dimensions: Ø 16 mm x 25 mm
• Termination Style: radial
• Grid: 7,5

Images are for reference only. See Product Specifications

• Type: Film capacitor
• Dielectric: polypropylene film
• Coating: plastic foil, metalized on both sides
• Capacitance: 0,022 µF
• Voltage Rating: 400 VDC / 250 VAC
• Tolerance: ±10 %
• IEC climate category: 55/100/56
• Operating Temperature Range: - 55°C / + 100 °C
• Dimensions: 4 x 9 x 13 mm
• Termination Style: radial
• Grid: 10

• Type: Electrolytic can capacitor
• Capacitance: 22 µF
• Voltage Rating: 35 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 6 mm x 7 mm
• Termination Style: radial
• Grid: 2,5

Images are for reference only. See Product Specifications
